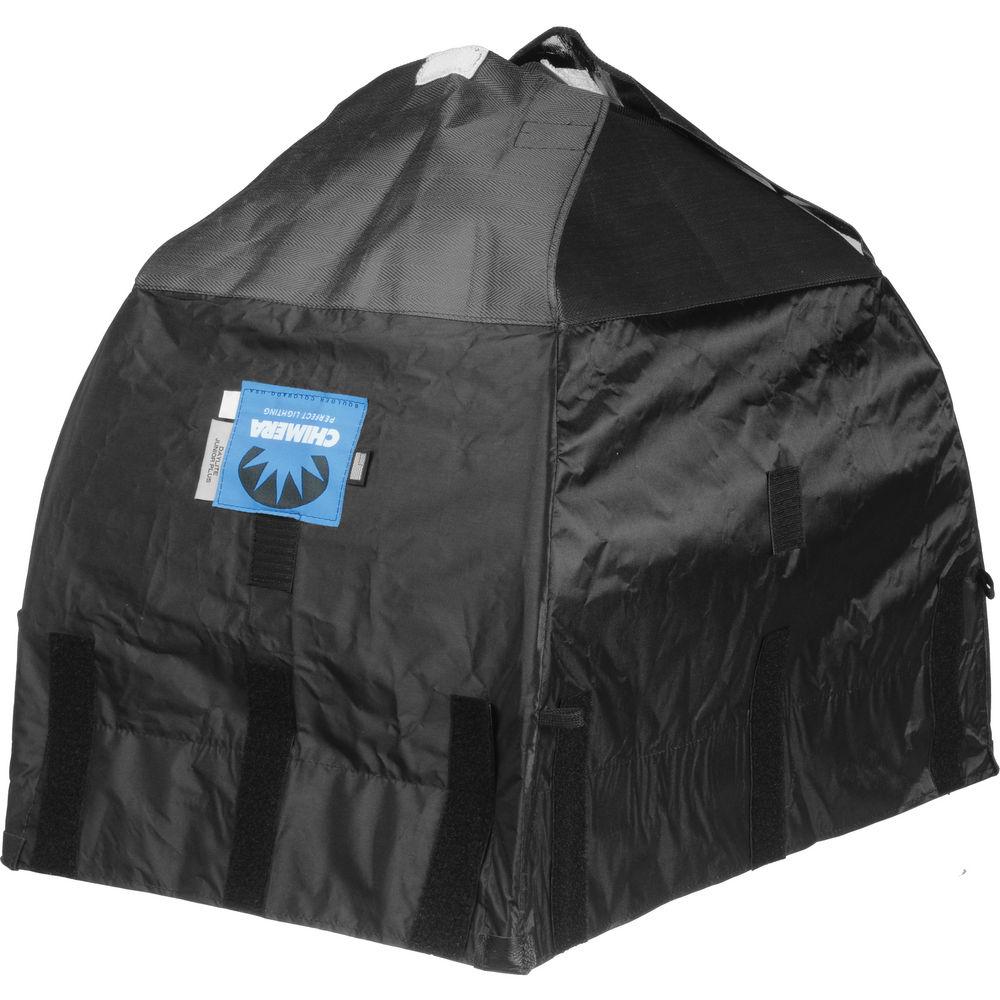

User Manual for Chimera Medium Daylite Junior Plus Softbox, Silver Click to enlarge the picture
Contents of the user manual for the Chimera Medium Daylite Junior Plus Softbox,
- Product category: Softboxes Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Softboxes
 |
User manual for the Chimera Medium Daylite Junior Plus Softbox, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|

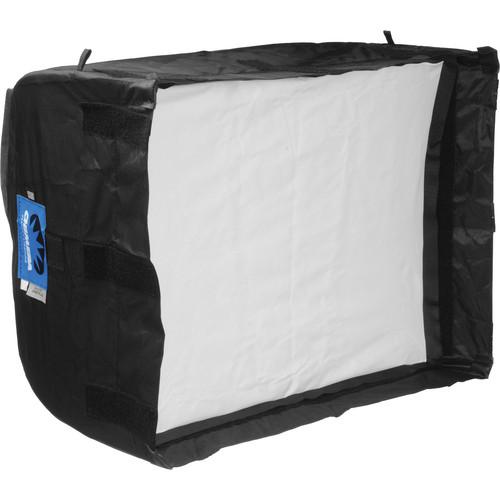

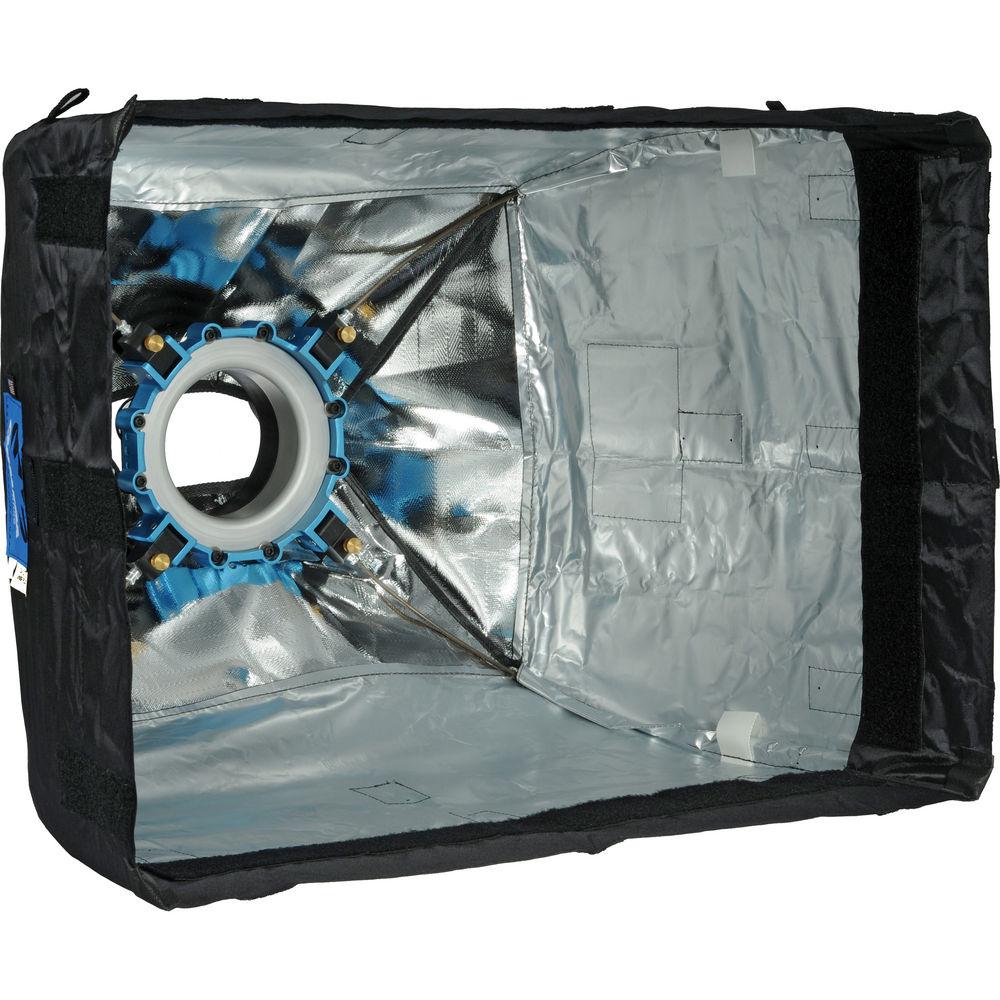

Product description With fabric intended for the heat of a continuous light, the Chimera Medium Daylight Junior Plus is ideal for a small Fresnel light up to 1,200 Watts. It may also be used with a strobe. The extra depth of the Daylight (it's about 30% deeper than the video Pro Plus) allows the Fresnel beam to spread out and cover the front face more evenly. Its silver interior will provides light quality more spectral with a faster gradation from highlight to shadow areas. The "Plus" designation means you may remove the front face of the softbox if you like. This softbox comes with a one stop diffusion cloth standard, and an additional 1/2 and 1/4 grid cloth is included. Substituting a half or quarter diffusion or taking off the interior baffle would result in even more contrast, slightly more light transmission, and less softening of the light. - The recessed front face makes the soft source more directional, and enables the user to add a honeycomb grid, soft fabric grid or louvers.
- Required Speed (mounting) Rings are available separately for many manufacturers' lights.
- This size is ideal for large products setups, or full-length interviews with 2 - 3 people.
- If you are using open-faced lights, the Video Pro Plus banks are a more cost effective solution.
UPC: 845077082357 In the Box Chimera Medium Daylite Junior Plus Softbox, Silver (36 x 48") Black Storage bag for Softbox, Diffusion Screen and Poles Poles Interior Baffle 1 f-stop Front Diffusion Cloth, 1/2 grid cloth & 1/4 grid cloth Limited 5-Year Warranty NOTE: Speed Ring is REQUIRED and Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Medium Daylite Junior Plus Softbox, Silver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera Daylite Jr Plus Specs | Size | 36 x 48" (90 x 120 cm) | | Shape | Rectangular (extra deep) | | Compatibility | Hot lights up to 1,200 Watts, Strobes of any watt/second output | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | Yes | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 28.5 x 6.2 x 6.0" |
