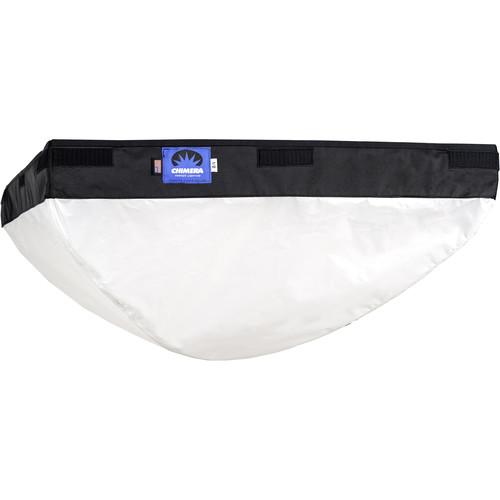

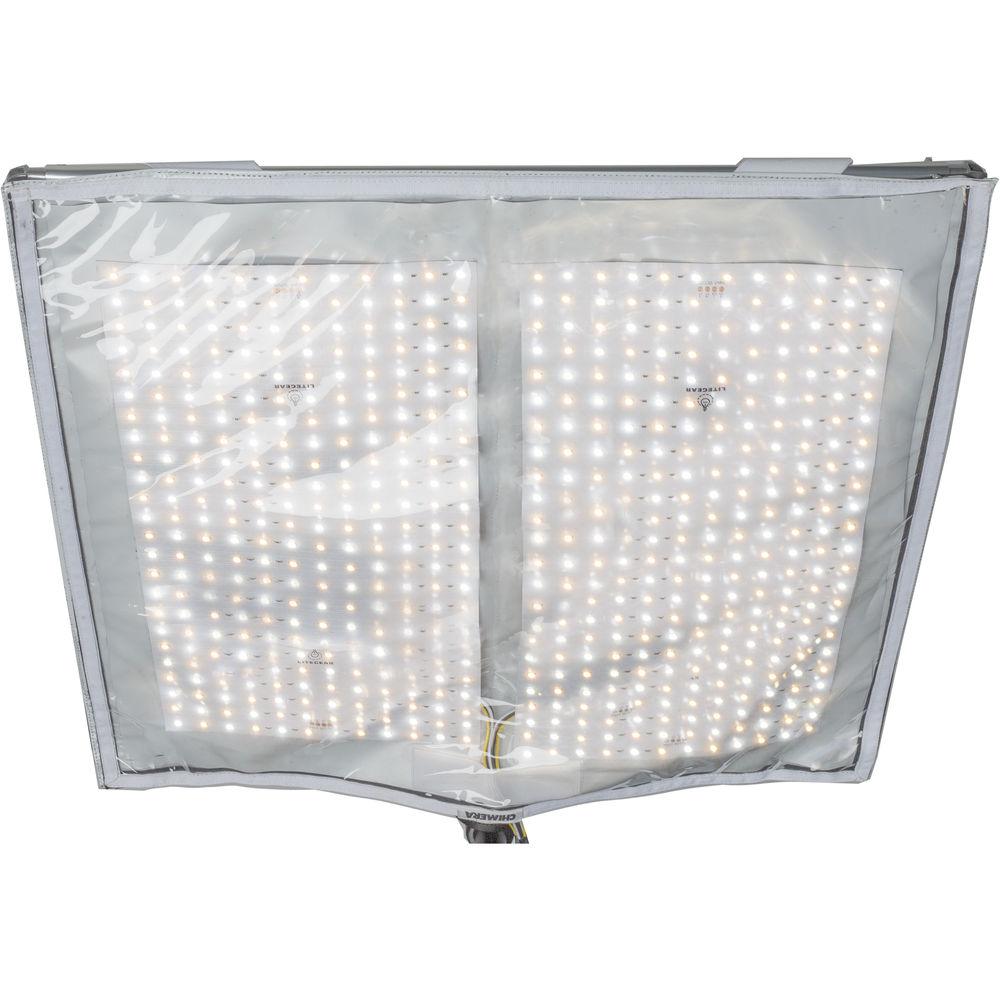

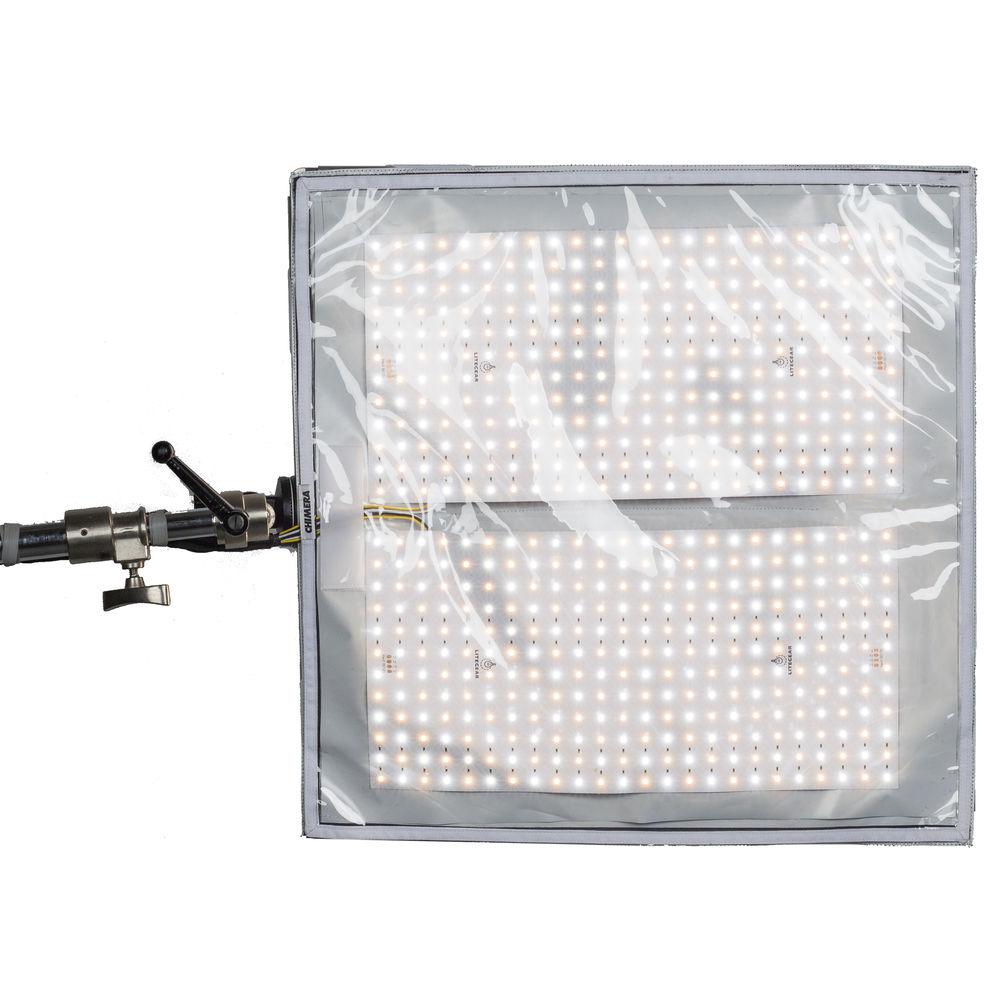

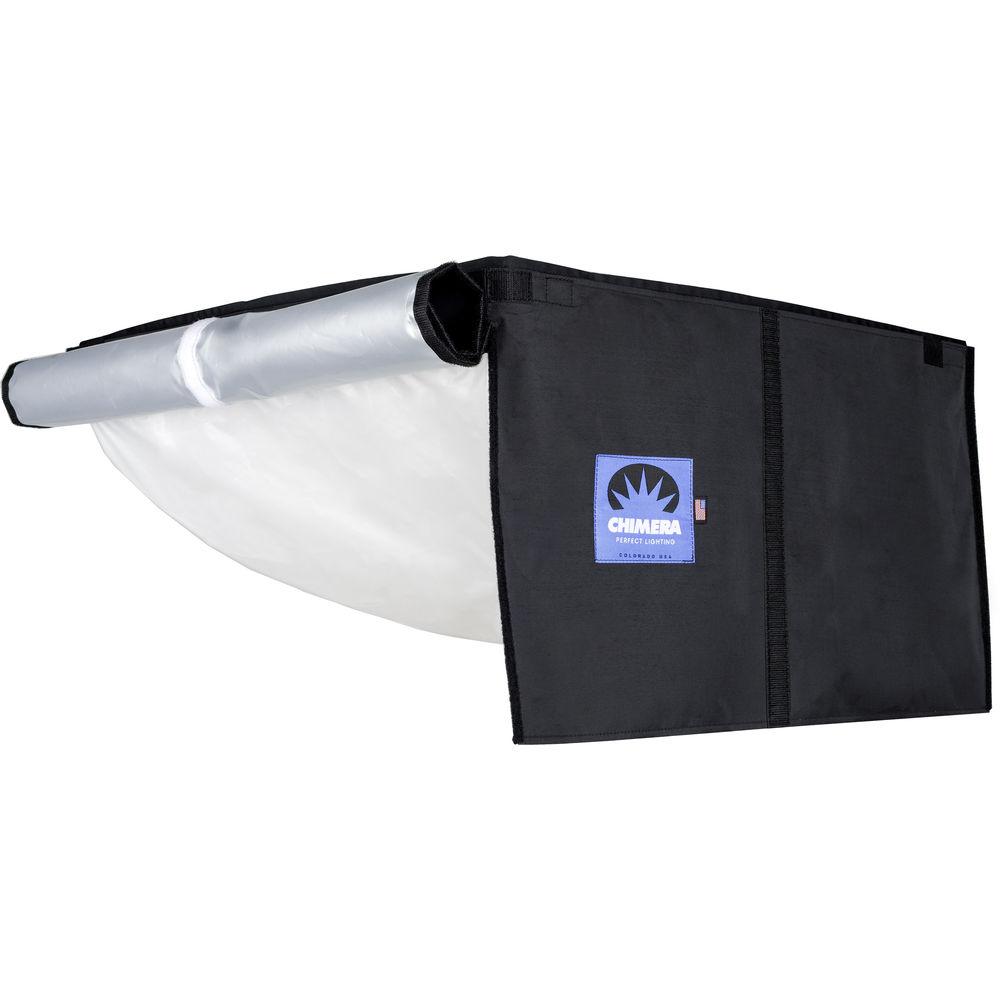

Product description The Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit from Chimera is a versatile soft light system with multiple uses and mounting options. At the heart of the kit is the PL100 light engine by LiteGear. This LED light array comes with a controller that allows you to adjust the color temperature from 2600 to 6000K as well as the light intensity from 0-100%. A multi-voltage power supply allows you to use the light anywhere in the world. The PL100 mounts to the kit's 24 x 24" aluminum frame that can be supported by the included grip head. Although you can use the system as it is at this point, there's another option. A 24 x 24" lantern softbox, made of a gridless fabric that works well with LEDs, attaches to the frame creating a light source that's suitable for fill light or overhead lighting setups that simulate the illumination you might find in a restaurant or club. A 12' head cable is included and the entire kit fits in the provided carry bag. - Benefits
-
- Great fit for ENG, still photography and small set lighting
- Powered by LiteGear LED Engine
- Use with or without lantern fabric
- High CRI and TLCI: 95
- Color adjustable from 2600 to 6000K
- LiteGear's field-proven, flicker-free, reliable dimmer control

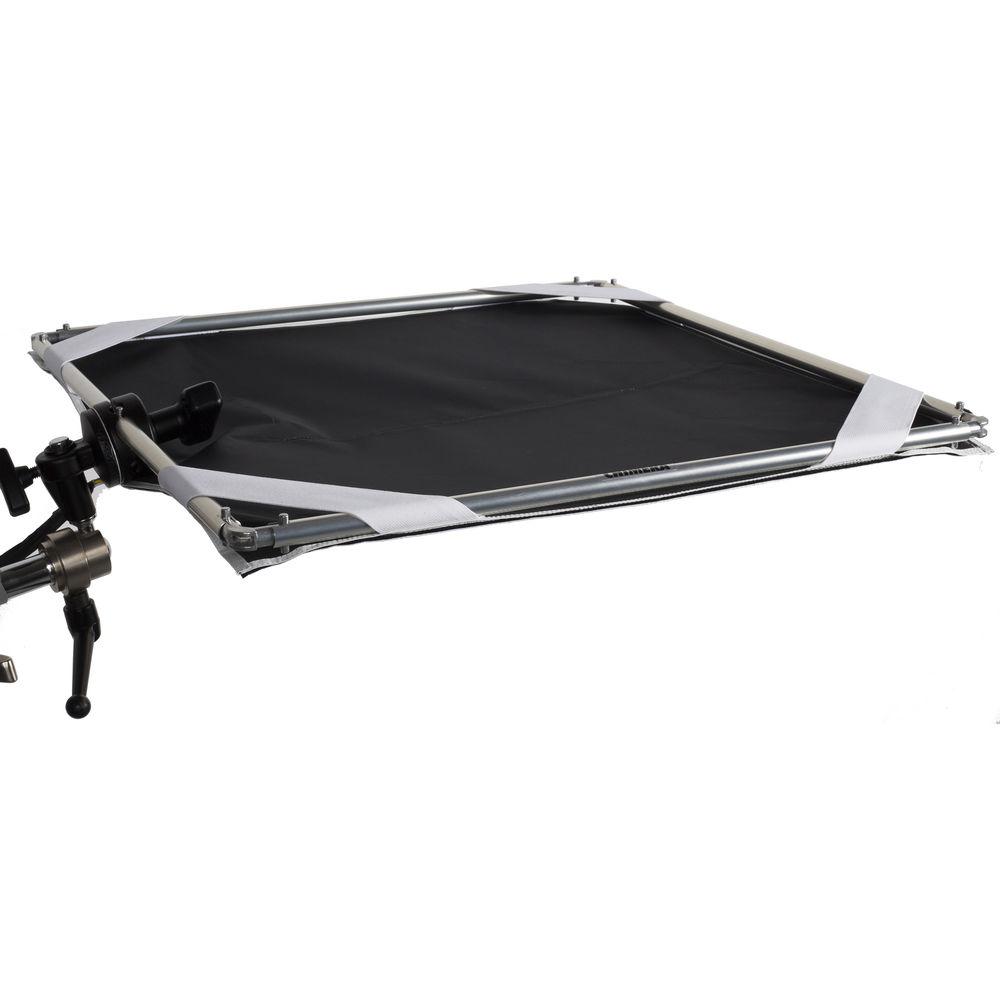

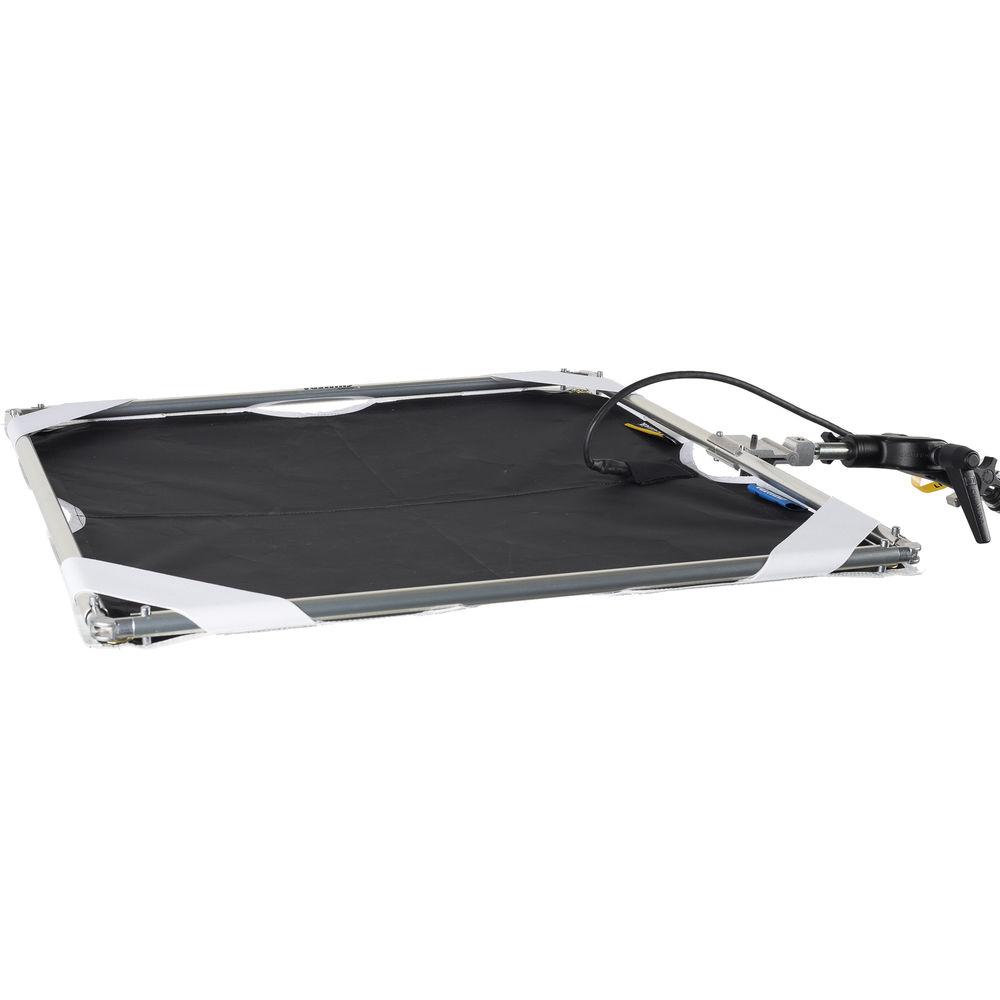

- Strong 24 x 24" panel frame backbone
- Multiple rigging options using Chimera grip heads or panel clamps
UPC: 845077018509 In the Box Chimera Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit PL100 LED Light Engine Controller for PL100 Power Supply for PL100 12' Head Cable Grip Head - 2.5" efavbsaxsw 24x24 Inch Panel Frame Kit Bag Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera 1850 Specs | | | Color Temperature | 2600 to 6000K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 24.0 x 24.0" / 61.0 x 61.0 cm | | Fixture Weight | 5.95 lb / 2.7 kg (Including Bracket, Cable, Frame, Mount) | | | | Battery Plate | None | | DMX Connector | None | | | | Yoke Mount | None | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Power Pass-Thru | None | | | | Cable Length | 12' / 3.66 m | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 28.2 x 16.3 x 4.1" |
