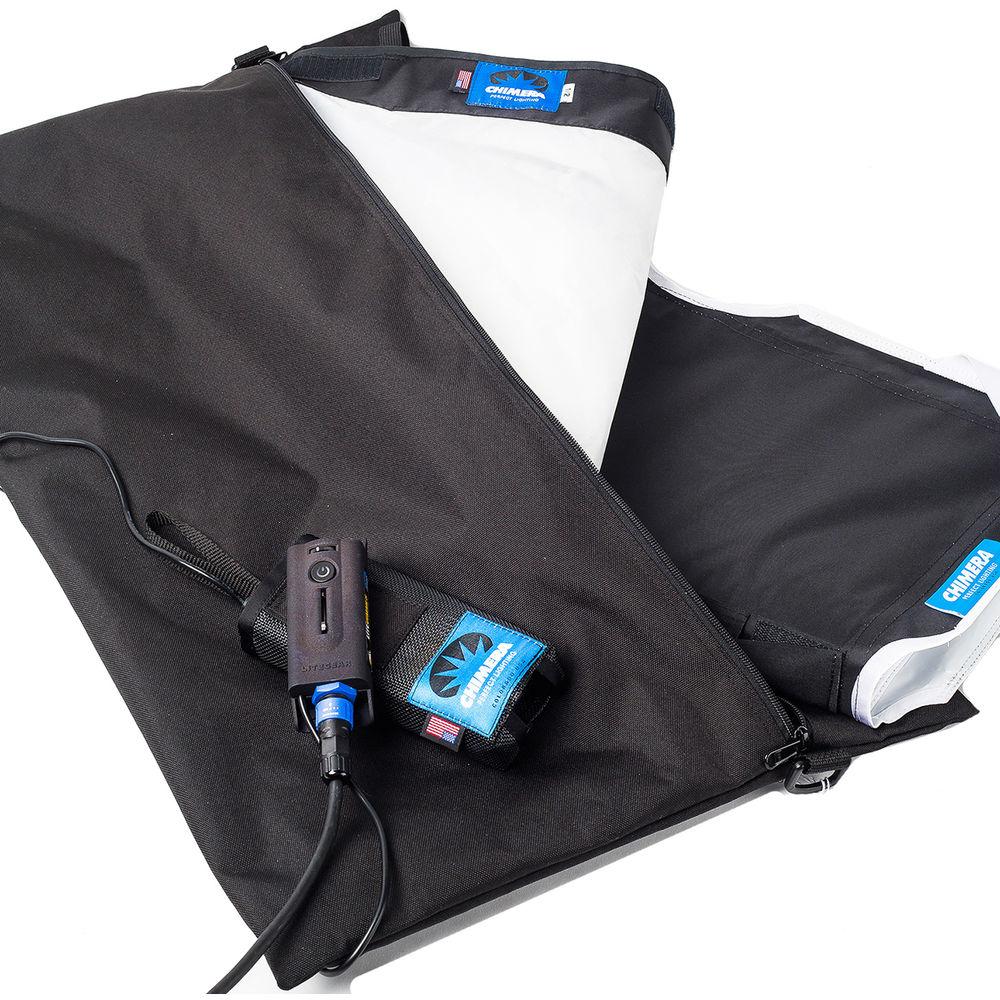

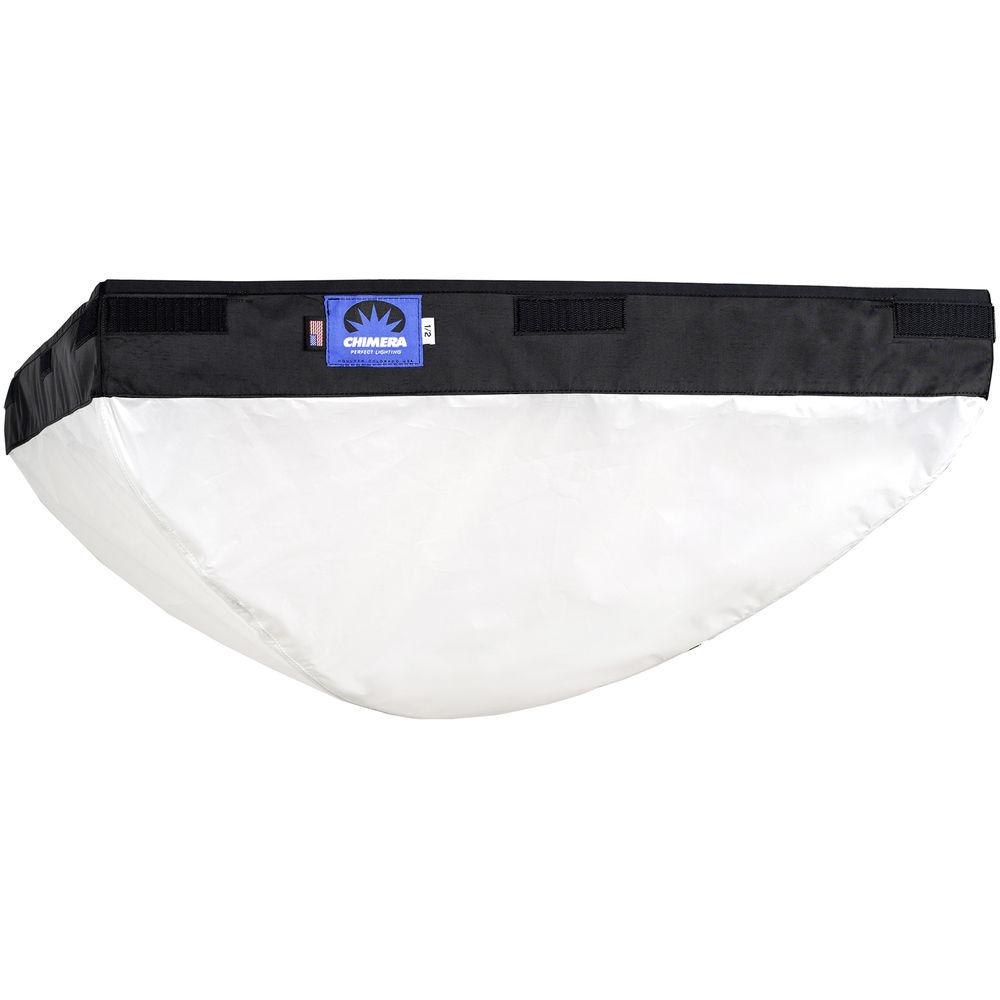

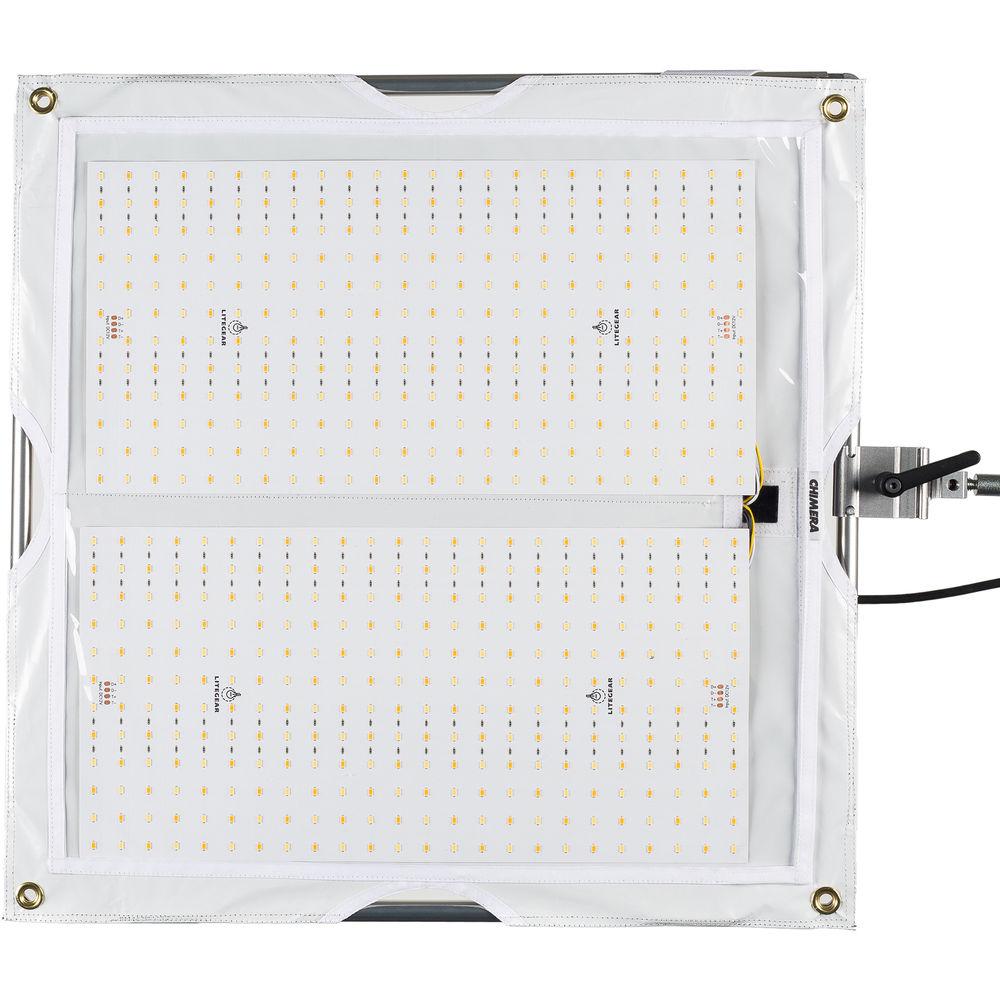

Product description Chimera has assembled this Panel Lantern Pro Kit for image-makers who have specific requirements for overhead lighting. The kit includes a PL100 LED Light Engine with controller and power supply, a 24 x 24" Fabric Lantern, head cable, and a kit bag. Also included are a Skirt Kit, Panel Lantern Clamp, and a Single Axis Stand Adapter. - Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit The Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit from Chimera is a versatile soft light system with multiple uses and mounting options. At the heart of the kit is the PL100 light engine by LiteGear. This LED light array comes with a controller that allows you to adjust the color temperature from 2600 to 6000K as well as the light intensity from 0-100%. A multi-voltage power supply allows you to use the light anywhere in the world. The PL100 mounts to the kit's 24 x 24" aluminum frame that can be supported by the included grip head. Although you can use the system as it is at this point, there's another option. A 24 x 24" lantern softbox, made of a gridless fabric that works well with LEDs, attaches to the frame creating a light source that's suitable for fill light or overhead lighting setups that simulate the illumination you might find in a restaurant or club. A 12' head cable is included and the entire kit fits in the provided carry bag.
- Benefits
-
- Great fit for ENG, still photography and small set lighting
- Powered by LiteGear LED Engine
- Use with or without lantern fabric
- High CRI and TLCI: 95
- Color adjustable from 2600 to 6000K
- LiteGear's field-proven, flicker-free, reliable dimmer control
- Strong 24 x 24" panel frame backbone
- Multiple rigging options using Chimera grip heads or panel clamps

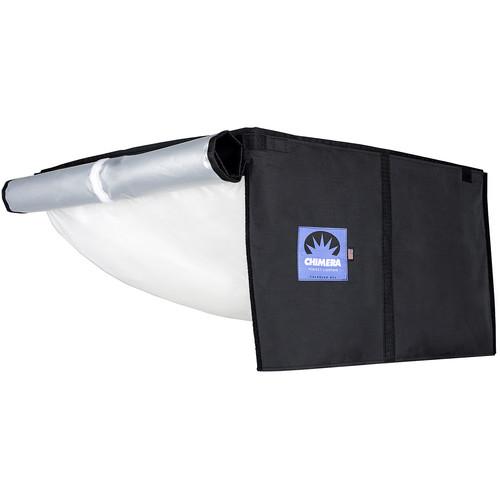

UPC: 845077018509 - Skirt Kit for Panel Lantern The Chimera Skirt Kit for Panel Lantern contains two 27.5" skirts that roll up or down the sides of the lantern to regulate the amount of spill light required. UPC: 845077018325

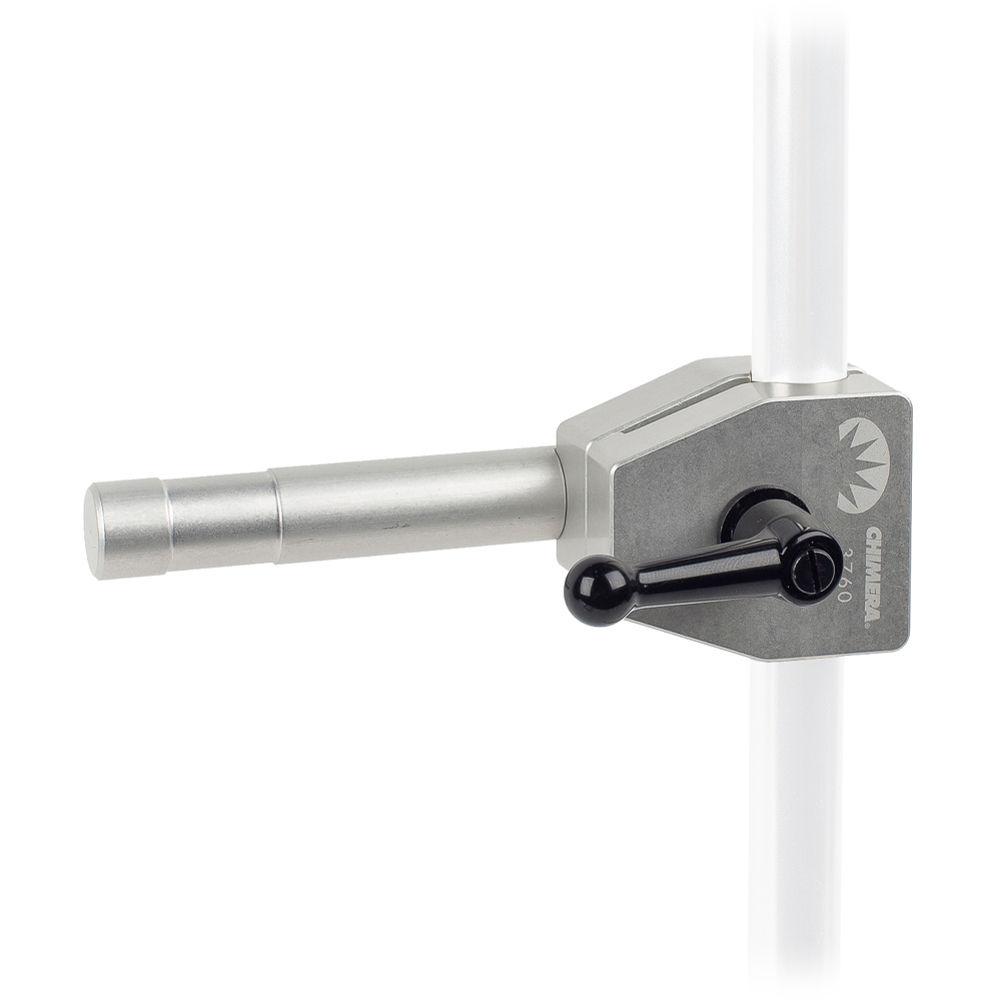

- Clamp for Panel Lantern The Clamp for Panel Lantern from Chimera allows the Panel Lantern to be placed on a stand or a boom or dead hung. UPC: 845077037609

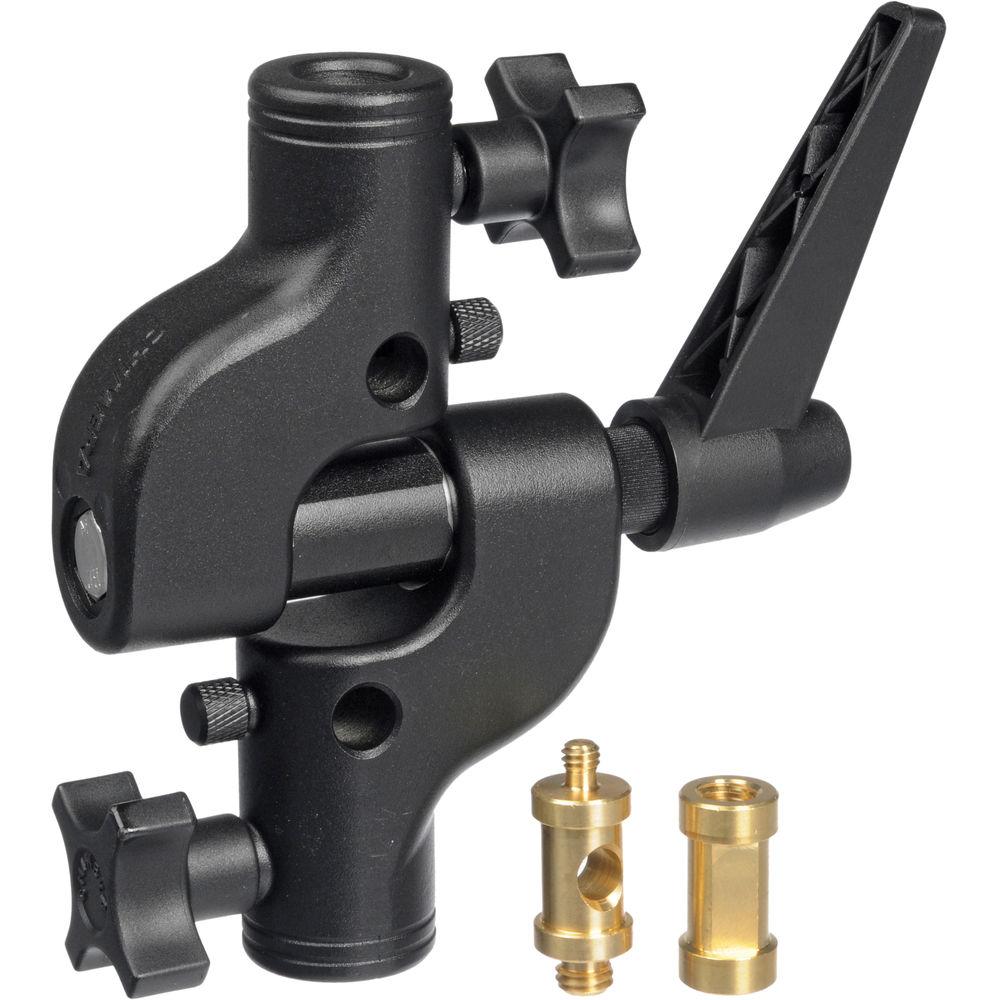

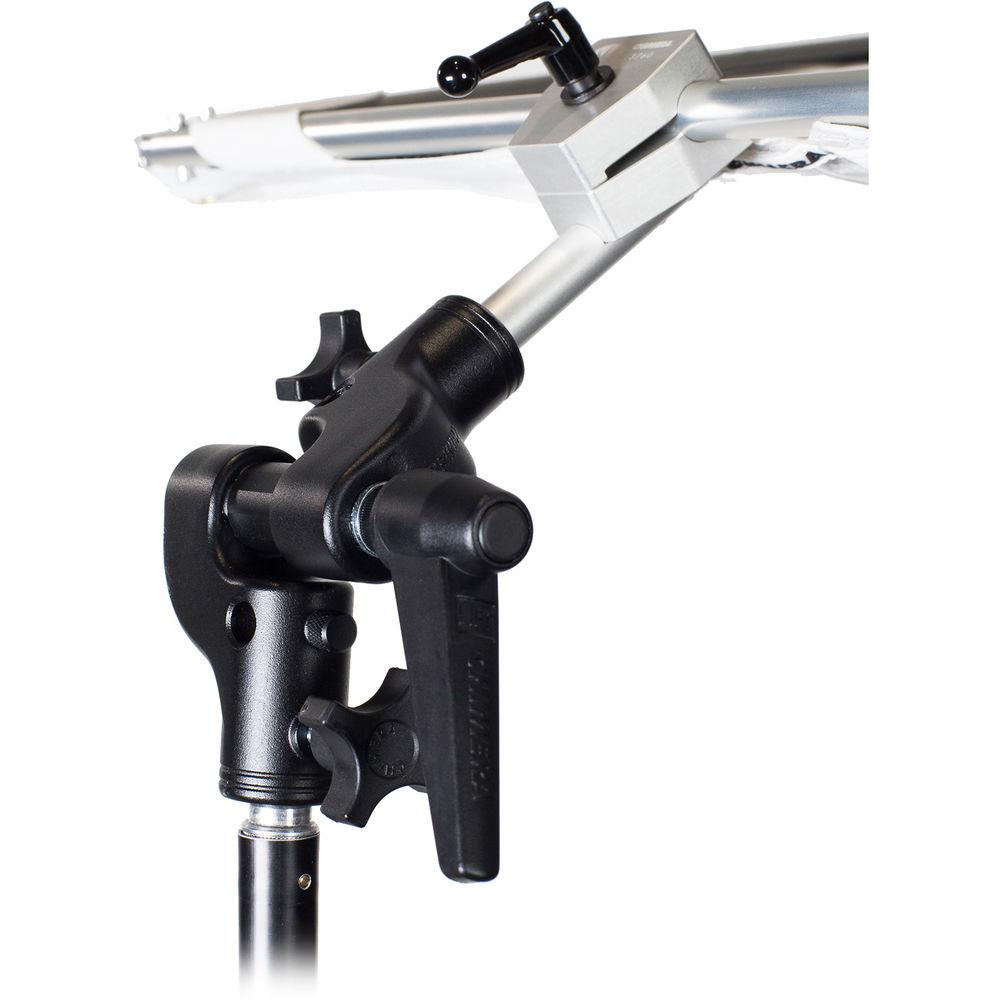

- Single Axis Stand Adapter The Chimera Single Axis Stand Adapter gives you confidence in mounting larger banks and lights. This adapter allows tilt and swivel for ultimate light placement and rotation of non-rotating lights.
- Accepts a standard Baby (5/8") stud or light stand top.
- Features integral locking umbrella shaft adapters
UPC: 845077038606 In the Box Bundle Items Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit vuvsxfbvqfzvwrqbwuqxerbzr Skirt Kit for Panel Lantern Clamp for Panel Lantern Single Axis Stand Adapter - One Year Manufacturer's Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Panel Lantern Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit
| | | Color Temperature | 2600 to 6000K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 24.0 x 24.0" / 61.0 x 61.0 cm | | Fixture Weight | 5.95 lb / 2.7 kg (Including Bracket, Cable, Frame, Mount) | | | | Battery Plate | None | | DMX Connector | None | | | | Yoke Mount | None | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Power Pass-Thru | None | | | | Cable Length | 12' / 3.66 m | | | | Box Dimensions (LxWxH) | 28.2 x 16.3 x 4.1" | - Skirt Kit for Panel Lantern
| Dimensions | Skirt Length: 27.5" / 70 cm | | | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 0.5" | - Clamp for Panel Lantern
| | | Box Dimensions (LxWxH) | 8.0 x 4.45 x 1.9" | - Single Axis Stand Adapter
| Dimensions | 5.75" (14.6 cm) Tall | | Weight | 1.1 lbs (0.5 kg) | | | | Box Dimensions (LxWxH) | 8.11 x 7.874 x 1.811" |
