User Manual for Chimera Paul C. Buff Portrait Kit Click to enlarge the picture
Contents of the user manual for the Chimera Paul C. Buff Portrait Kit
- Product category: Softboxes Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Softboxes
 |
User manual for the Chimera Paul C. Buff Portrait Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|

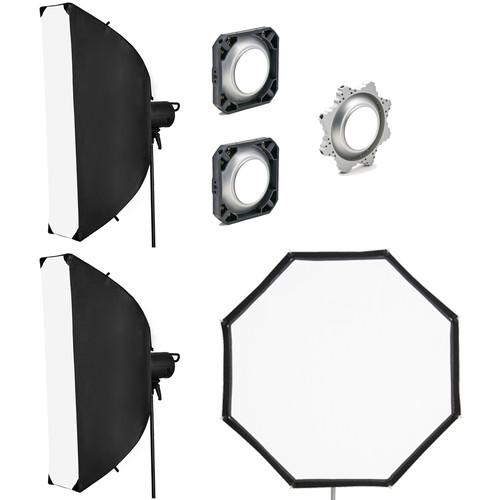

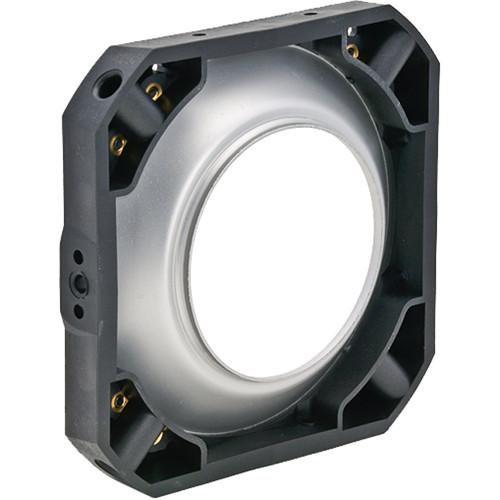

Product description This Chimera Paul C. Buff Portrait Kit provides the modifiers and speed rings that you will need to capture great portraits. The kit includes three speed rings that allow mounting of three Chimera softboxes to the front of Paul C. Buff heads.The heavy-duty speed ring for the Chimera Octaplus Light Bank allows mounting of the 3' octagonal-shaped softbox to a Paul C. Buff head. The softbox has a soft silver interior with a baffle, producing an even spread of light.The two PRO II Strip Softboxes come standard with a white interior and flush front face, which provides a wider spread of light than a box with a recessed front. Speed rings for these softboxes are also included. - Speed Ring for White Lightning Allows mounting of a Chimera or other brand standard rectangular softbox to the front of a Paul Buff White Lightning Ultra or X Series monolight. UPC: 845077025200

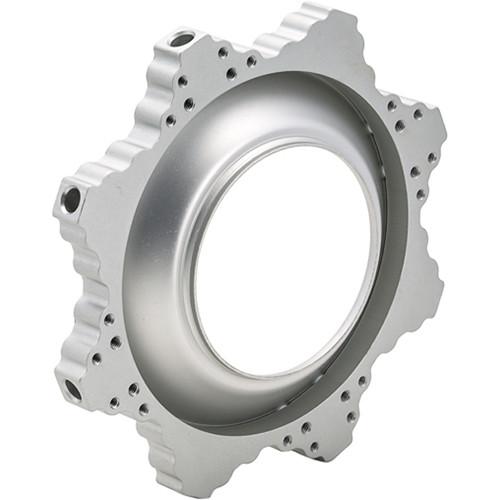

- Octaplus Speed Ring for White Lightning Ultra This is a heavy duty, heat resistant aluminum Speed Ring for the Chimera Octaplus Light Bank.

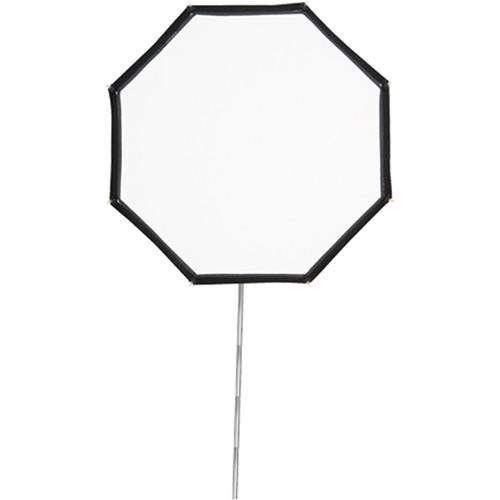

It allows mounting of the Chimera (or other brand) Octagonal shaped light banks to a White Lightning Ultra flash head. UPC: 845077025224 - Octaplus Fixed Light Bank (3') The 3' Chimera OctaPlus Light Bank is compatible with strobes or continuous light sources up to 500W. The softbox has a soft silver interior with an graduated baffle for very even light spread. This light bank requires a speed ring to adapt it to your particular strobe or hot light. UPC: 845077060300

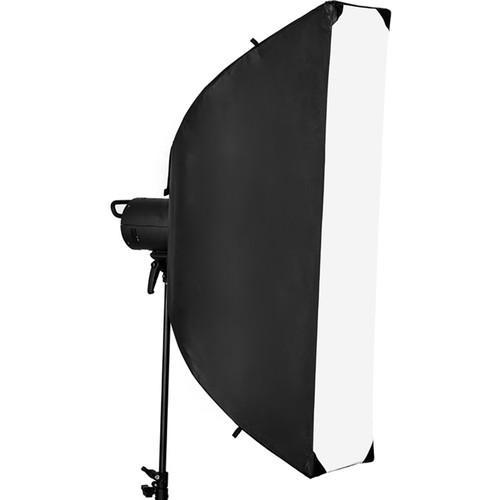

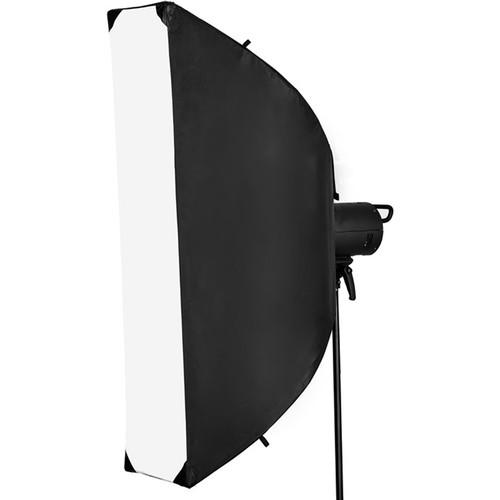

- Pro II Strip Softbox for Flash Only - Small The PRO II Strip Softbox is designed for use with a strobe. With fabric not intended for the heat of a continuous light, the PRO II Strip comes standard with a white interior and a flush front face, which provides a wider spread of light than a box with a recessed front. Popular application includes, but is not limited to side lighting a person or an object without getting as much wrap-around as a conventional rectangular softbox.
- Suitable for 3/4-length set-ups with children, or when a soft hair-light is needed for 1 or 2 people.
- Required Speed (mounting) Rings are available separately for many manufacturers' strobes.
UPC: 845077015508 In the Box Bundle Items 2 x Speed Ring for White Lightning savtbxzqwsfafufubexxw Octaplus Speed Ring for White Lightning Ultra savtbxzqwsfafufubexxw Octaplus Fixed Light Bank (3') 2 x Pro II Strip Softbox for Flash Only - Small savtbxzqwsfafufubexxw - Black Storage bag for Softbox, Difusion Screen and Poles
- 1 f-stop Front Diffusion Cloth Permanently Attached
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Paul C. Buff Portrait Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Speed Ring for White Lightning
| Compatible Lighting | AlienBees
White Lightning | | Compatible Softbox Shape | Strip | | Number of Mounting Holes | 4 | | | | Box Dimensions (LxWxH) | 6.772 x 6.457 x 1.89" | - Octaplus Speed Ring for White Lightning Ultra
| Compatible Lighting | AlienBees
White Lightning | | Compatible Softbox Shape | Strip | | Number of Mounting Holes | 8 | | | | Box Dimensions (LxWxH) | 8.2 x 7.75 x 1.9" | - Octaplus Fixed Light Bank (3')
| Size | Diameter: 3.0' (0.9 m) | | Shape | Octagonal | | Compatibility | Strobe and hot lights to 500 W | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | Yes | | | | Box Dimensions (LxWxH) | 28.5 x 4.5 x 4.5" | - Pro II Strip Softbox for Flash Only - Small
| Size | 9 x 36" (20 x 90 cm) | | Shape | Narrow Rectangle | | Compatibility | Flash Only | | Removable Face | No | | Removable Baffle | Yes | | Accepts Grids | No | | Requires Speed Ring | | | | | Box Dimensions (LxWxH) | 28.5 x 4.2 x 4.2" |
