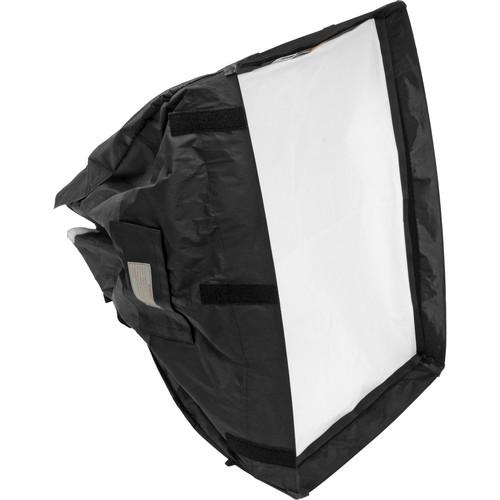

User Manual for Chimera Quartz Plus Softbox Click to enlarge the picture
Contents of the user manual for the Chimera Quartz Plus Softbox
- Product category: Softboxes Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Softboxes
|
User manual for the Chimera Quartz Plus Softbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|
Product description The small Chimera Small Quartz Plus Softbox is designed for use with large open-face hot lights. It is rated up to 4000 watts and diameters from 9 to 21.5 inches. It may also be used with a strobe light, but this is not economical in the long run since adapter rods would be required for the attachment of a strobe ring; this box has shorter rods.The depth of the Quartz Plus is ideal for an open-face light. It is shallower than the Daylight Plus Bank designed for Fresnel Lights.Use this box for the softest light possible. The "Plus" designation means the face of the box is removable. Chimera makes different strengths of diffusion material for front face applications. This softbox comes with a one-stop diffusion cloth, and additional 1/2 and 1/4 grid cloths. Substituting a half or quarter diffusion or taking out the interior baffle will result in more contrast, slightly more light transmission, and less softening of the light. - Recessed face makes the soft source more directional and enables addition of a honeycomb grid, soft fabric grid, or louvers.
- Required speed (mounting) rings are available separately for many manufacturers' lights.
UPC: 845077084252 In the Box Chimera Quartz Plus Softbox (Small, 24 x 32") Black Storage Bag for Softbox, Diffusion Screen and Poles Poles Interior Baffle 1-Stop Front Diffusion Cloth, 1/2 Grid Cloth & 1/4 Grid Cloth Limited 5-Year Warranty Note: Speed ring is REQUIRED and not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Quartz Plus Softbox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera Quartz Plus Specs | Size | 24 x 32" (60 x 80 cm) | | Shape | Deep Rectangle | | Compatibility | Hot lights up to 4,000 Watts
Strobes of any w/s with adapter rods # 4099 | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 28.5 x 6.2 x 5.55" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
