Chimera Video Pro Plus 1 Triolet

Search your instruction manual in PDF to download

User Manual for Chimera Video Pro Plus 1 Triolet Kit

Click to enlarge the picture
Chimera Video Pro Plus 1 Triolet Kit Contents of the user manual for the Chimera Video Pro Plus 1 Triolet
  • Product category: Uncategorized Chimera
  • Brand: Chimera
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Chimera Uncategorized

Chimera Video Pro Plus 1 Triolet Kit Chimera Video Pro Plus 1 Triolet Kit Chimera Video Pro Plus 1 Triolet Kit Chimera Video Pro Plus 1 Triolet Kit
User manual for the Chimera Video Pro Plus 1 Triolet contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Chimera product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!



Product description

The Chimera Video Pro Plus 1 Triolet Kit is a combination of several products for much less than if you bought everything a la carte. A small Video Pro Plus 1 softbox (with speed ring) and the Triolet continuous light fixture (with a 1000W bulb) form the core of this kit. The softbox is designed for use with a hot light but can be used with flash as well. With a silver interior intended for the heat of a continuous light, the Small Video Pro Plus 1 is ideal for work in small spaces when medium soft light is required. The 24 x 32" size is lightweight and portable. The "Plus 1" designation means the front face of the softbox is removable; Chimera makes different strengths of diffusion material for front face applications. The softbox comes with a one-stop diffuser (hence the "1" designation). Purchasing the 1/2 and 1/4 grid cloths separately would allow for more light transmission and less softening of the light. A fabric eggcrate light modifier that attaches to the front of the softbox, directing and narrowing the beam (to 40°) for more control, is also included.This fixture is equipped for 120 VAC operation. It will also function with 220-240 VAC with the appropriate bulb and plug adapter, available separately.

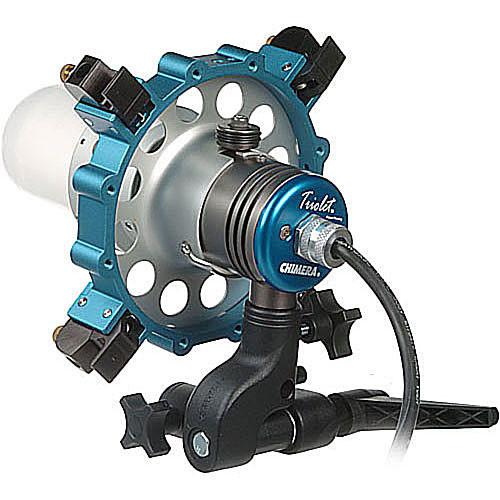

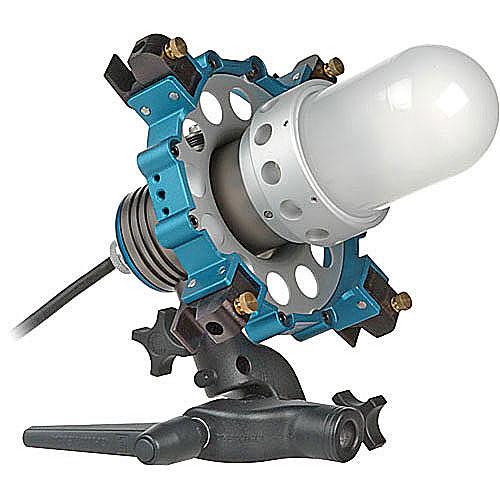

Triolet

    Broad, Omni-Directional Light
  • Compatible with light banks, lanterns, or without a modifier for bare-bulb light effect
    Stand Adapter
  • Comes equipped with the Chimera Single Axis Stand Adapter which allows tilt and swivel of the fixture
    Quick Release Speed Ring
  • Locking wand levers make it easy to mount and dismount the softbox to the fixture

Video Pro Plus 1 Lightbank

    Spill Control
  • Recessed front helps to control light spill and facilitates the attachment of the included fabric grid
    Durable
  • May be used with hot lights up to 1000 watts
  • May be used with strobes of any power rating, with the appropriate, optional speed ring

Accessories

    Fabric Grid
  • Narrows the light spread to 40° for more control

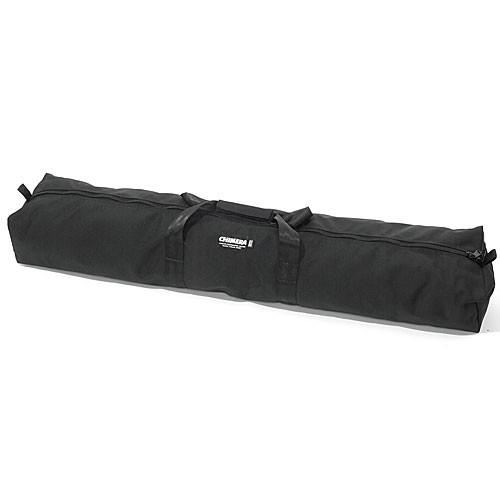

    Case
  • Carry and store it all with the included 44 x 9 x 9" (111.76 x 23 x 23 cm) duffle case
In the Box Chimera Video Pro Plus 1 Triolet Kit
  • Triolet Mogul Base Flood Light with Quick Release Speed Ring (120 VAC)
  • Video Pro Plus 1 Softbox (Small)
  • Screen - Front Diffusion - for Super/Video Pro Plus Small
  • Mogul Base Lamp - 1000 watts/120 volts
  • 40° Fabric Grid (Small)

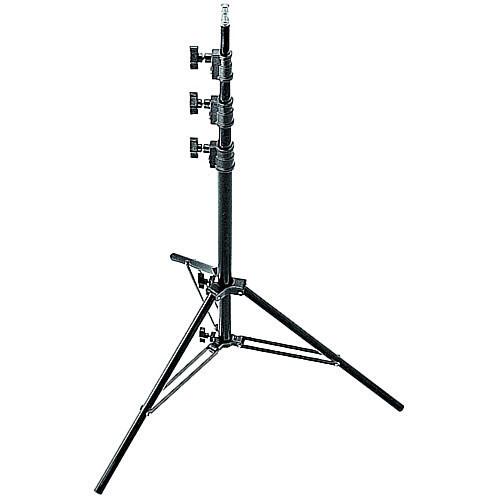

  • Medium Duty Maxi Kit Stand (Black, 9.4' )
  • Duffle for 42" Panel
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Chimera Video Pro Plus 1 Triolet Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Size 24 x 32" / 40 x 55 cm
    Shape Rectangular
    Compatibility Hot lights up to 1000 W
    Flash may be used by using the appropriate speed ring
    Removable Face Yes
    Removable Baffle Yes
    Accepts Grids Yes, 40° grid included
    Requires Speed Ring Quick release speed ring included
    Package Weight 15.2 lb
