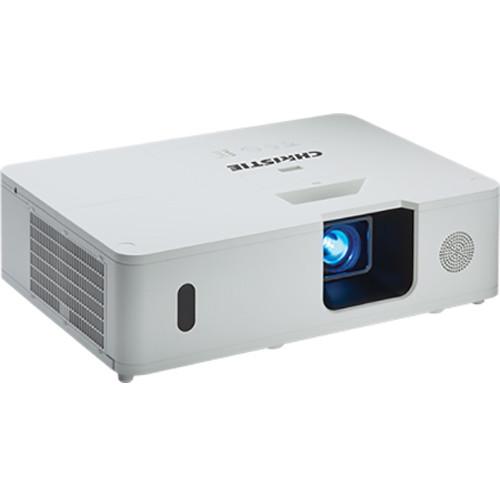

User Manual for Christie AP Series LW502 WXGA 5000-Lumen 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Christie AP Series LW502 WXGA 5000-Lumen
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie AP Series LW502 WXGA 5000-Lumen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The AP Series LW502 WXGA 3LCD Projector from Christie delivers 5000 lumens of brightness with a 5000:1 contrast ratio. It offers embedded warping and blending, and supports a resolution up to 1280 x 800. The projector is powered by a 3LCD system. With a lamp life that reaches up to 6,000 hours in Eco mode, the LW502 offers a variety of connectivity options including composite video, component video, and HDMI digital inputs. - Long-life lamp up to 6000 hours (Eco mode)
- AMX and Crestron connectivity
- Hybrid filter up to 10,000 hours
- HDCR (High Dynamic Contrast Range)
- Picture-in-Picture/Picture-by-Picture
- Edge blending and warping
- Zoom, focus, H/V lens shift
In the Box Christie AP Series LW502 WXGA 5000-Lumen 3LCD Projector IR Remote AC Line Cords for Projector Head RGB Cable Adapter Cover Lens Covers Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie AP Series LW502 WXGA 5000-Lumen 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie 121-041106-01 Specs | | | Display System | 3-Chip 0.59" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 5000 Lumens | | Contrast Ratio | 5000:1 | | Scan | Horizontal: 15 to 106 kHz
Vertical: 60 to 120 kHz | | | | Focus | Manual | | Throw Ratio | 1.4 - 2.3:1 | | | | Keystone Correction | Auto-Vertical
Auto-Horizontal | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input/Output)
2 x HDMI Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x Composite (RCA) Video (Input)
1 x Component (3RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input/Output)
1 x RCA Stereo (L/R) Audio (Input)
1 x HDMI Video (Output) | | | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 30 dB | | Heat Dissipation | 1502 BTU (AC 100 to 120V)
1433 BTU (AC 220 to 240V) | | Power Consumption | Medium Brightness: 440 W
Medium Brightness: 420 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | 40 to 104°F (4 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 18.3 x 5.4 x 13.3" / 46.5 x 13.7 x 33.8 cm | | Weight | 15.2 lb / 6.9 kg | | | | Package Weight | 22.35 lb | | Box Dimensions (LxWxH) | 21.7 x 18.8 x 9.7" |
