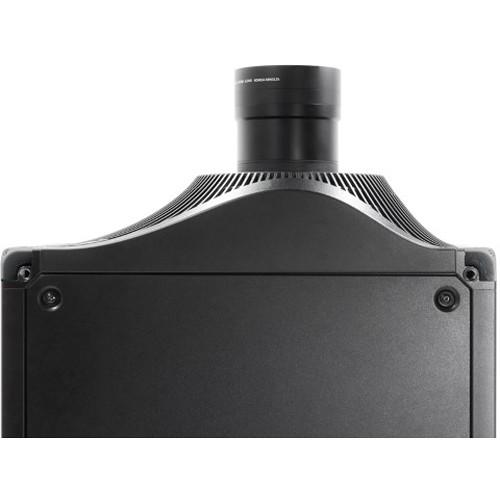

User Manual for Christie Boxer 30 Series 30,000-Lumen 2K 3DLP Projector with HBMIC Card Click to enlarge the picture
Contents of the user manual for the Christie Boxer 30 Series 30,000-Lumen 2K
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie Boxer 30 Series 30,000-Lumen 2K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|

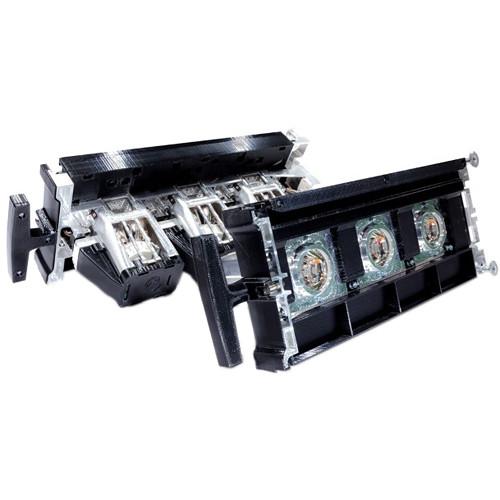

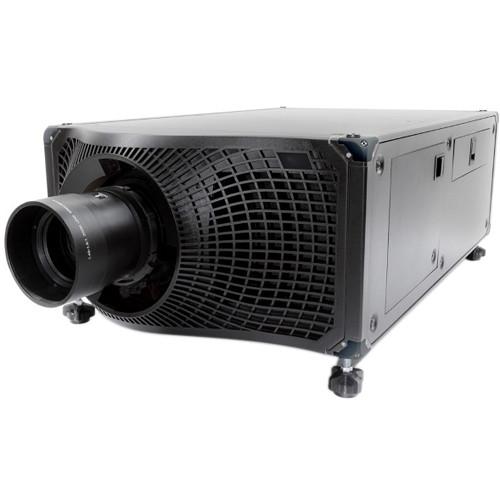

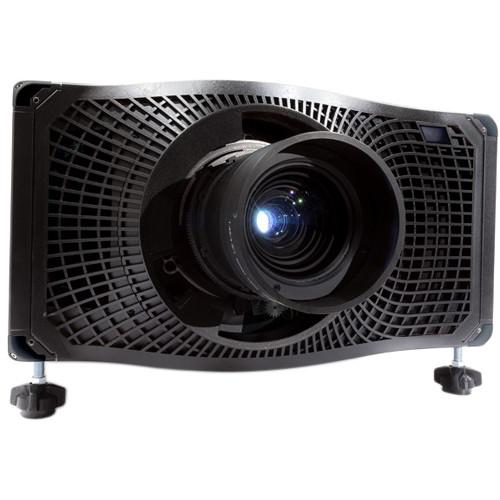

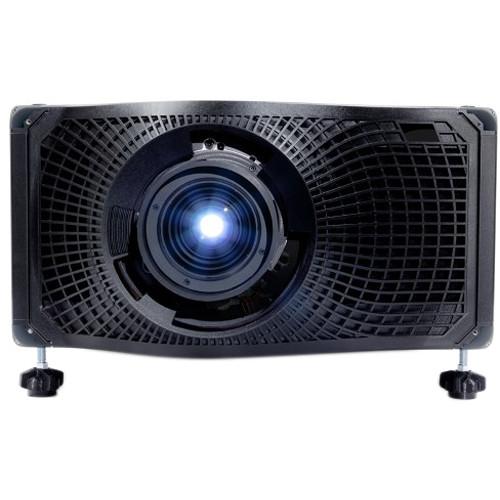

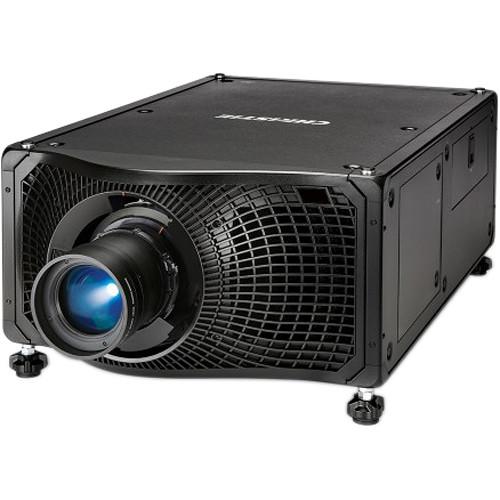

Product description The Boxer 30 Series 30,000-Lumen 2K 3DLP Projector from Christie offers support for 2K image processing and 4K upgrade option. With brightness rating of 30,000 lumens and six 450W NSH lamps, it is suitable for stages and large-venue events. The projector features a built-in warp and blend functionality and a preview screen for at-a-glance status updates. In addition, it also features built-in near field communication (NFC) for lamp information tracking.The High Bandwidth Multi-Input Card (HBMIC) provides a wide selection of connections for high bandwidth signals and allows for 4K at 60 Hz over a single cable. The HBMIC also adds a direct fiber input capability for use with a Christie Link Transmitter (sold separately). All inputs offer a preview capability and fast syncing or switching between inputs - Christie TruLife Lite processing ensures better color reproduction and image quality
- TruLife Lite Electronics technology allows the projector to achieve a pixel clock rate up to 1.2 gigapixels per second
- Omnidirectional deployment capabilities
- Built-in warp and blend functionality

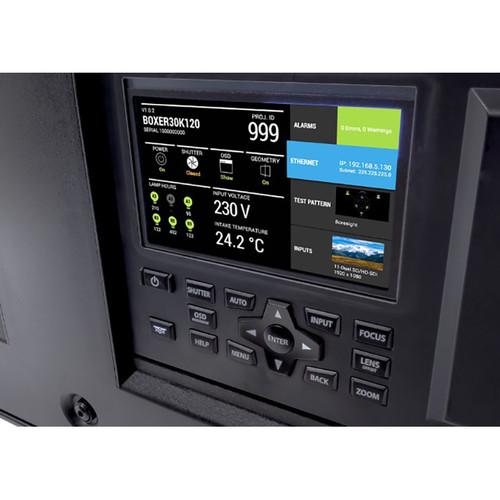

- Preview screen for at-a-glance status updates
- Integrated near field communication (NFC) for lamp information tracking
- HBMIC Multi-Input Card
- Inputs
2 x 12G-SDI
1 x HDMI 2.0 (HDCP 2.2)
1 x DisplayPort 1.2 (HDCP 1.3)
Christie Link Fiber Connection (QSFP+) In the Box Christie Boxer 30 Series 30,000-Lumen 2K 3DLP Projector with HBMIC Card (No Lens) 4 x Blank Faceplates Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie Boxer 30 Series 30,000-Lumen 2K 3DLP Projector with HBMIC Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie BOXER 30 Specs | | | Display System | 3-Chip 0.3" DMD DLP | | Native Chip Resolution | 2048 x 1080 (Full HD) | | Max Brightness | 30,000 Lumens | | Contrast Ratio | 2000:1 | | | | Inputs/Outputs | 2 x 3G-SDI (BNC) Audio/Video
2 x DisplayPort Audio/Video
1 x RS-232C (Unspecified Connector) Control
1 x HDBaseT (RJ45) LAN | | | | Light Source | Lamp (6 x NSH) | | Lamp Power | 450 W | | Expected Lamp Life | Medium Brightness: 1500 Hours | | AC Input Power | 240 VAC, 50 Hz | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 37.8 x 23.5 x 12.0" / 96.0 x 59.7 x 30.5 cm | | Weight | 160.00 lb / 72.574 kg |
