User Manual for Christie Boxer 4K20 20,000 Lumen 4K Projector Click to enlarge the picture
Contents of the user manual for the Christie Boxer 4K20 20,000 Lumen 4K
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie Boxer 4K20 20,000 Lumen 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|

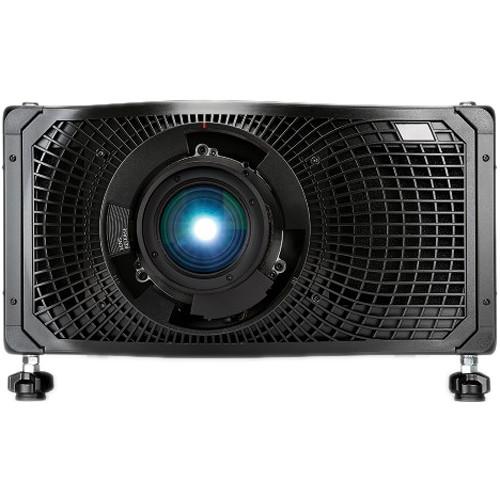

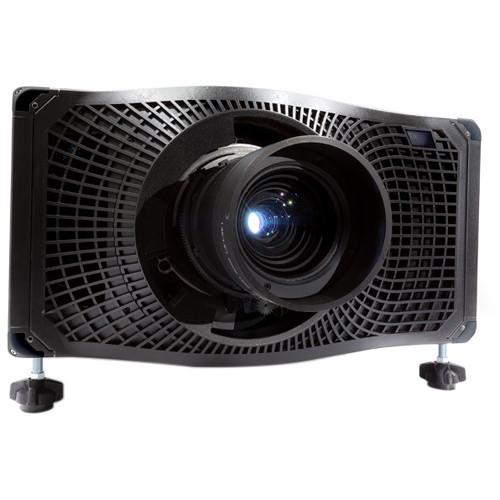

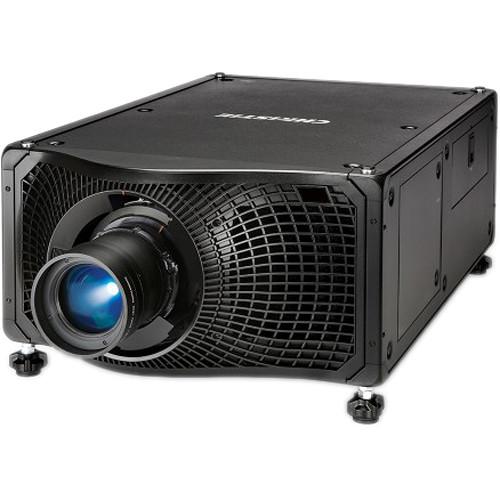

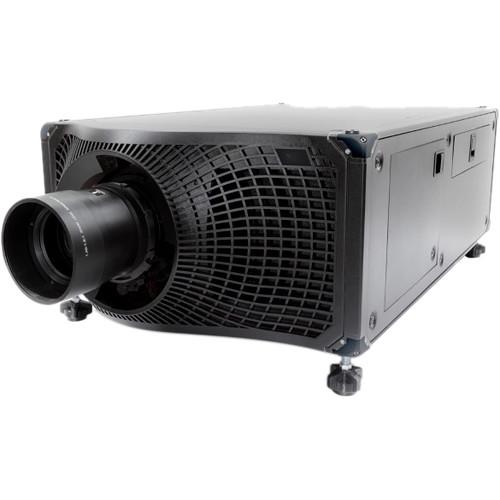

Product description The Boxer 4K20 4K Projector from Christie is a 20,000-Lumen, 4K resolution, 3DLP projector. Featuring four mercury lamps, the Christie Boxer 4K20 provides 1,500 hours of lamp-life to 70% initial brightness. With the added benefits of single-phase power to reduce set-up cost and complexity, built-in warping and blending, omnidirectional installation options, and a wide range of connectivity, the Boxer 4K20 is sure to meet most of your AV needs. - 4K content maintains stunning color reproduction and image quality from input through to screen with Christie TruLife processing
- Omnidirectional deployment capabilities for projecting images in any position
- Built-in warp and blend functionality with Christie Twist
- High bandwidth multi-input card (HBMIC) provides versatile 4K connectivity, with preview capability and fast syncing or switching between inputs as well as direct fiber input when used with a Christie Link transmitter (not included)

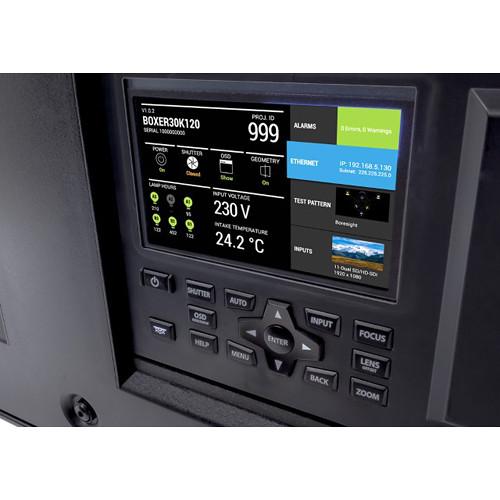

- Easy to manage preview screen for at-a-glance status updates and integrated near field communication (NFC) for lamp information tracking even without AC applied
- Tool-free lens insertion lens mount system with adjustable boresight
- Motorized horizontal and vertical lens offset, and zoom and focus adjustment
In the Box Christie Boxer 4K20 20,000 Lumen 4K Projector (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie Boxer 4K20 20,000 Lumen 4K Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie 144-011103-01 Specs | | | Display System | 3-Chip 1.38" DMD DLP | | Native Chip Resolution | 4096 x 2160 | | Max Brightness | 20,000 Lumens | | | | Inputs/Outputs | 2 x 3G-SDI (BNC) Video
1 x HDMI Audio/Video
1 x DisplayPort Audio/Video
1 x Ethernet (RJ45) LAN
1 x RS-232C (Unspecified Connector) Control | | | | Lamp Power | 450 W | | Expected Lamp Life | Medium Brightness: 1500 Hours At 75% brightness | | Temperature | 41 to 104°F (5 to 40°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 23.5 x 12.0 x 37.8" / 59.7 x 30.5 x 96.0 cm | | Weight | 160.00 lb / 72.57 kg |
