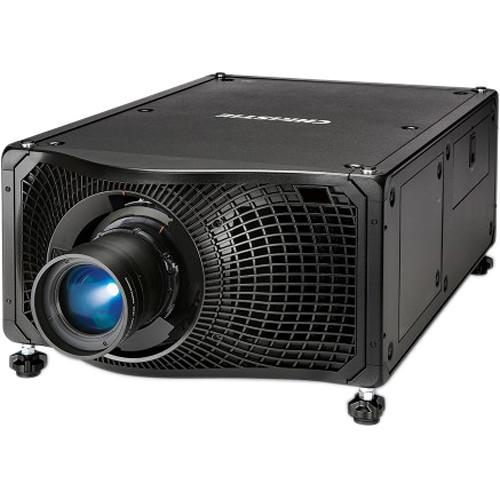

User Manual for Christie Boxer Series 4K30 30,000-Lumen 3DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie Boxer Series 4K30 30,000-Lumen 3DLP
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie Boxer Series 4K30 30,000-Lumen 3DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|

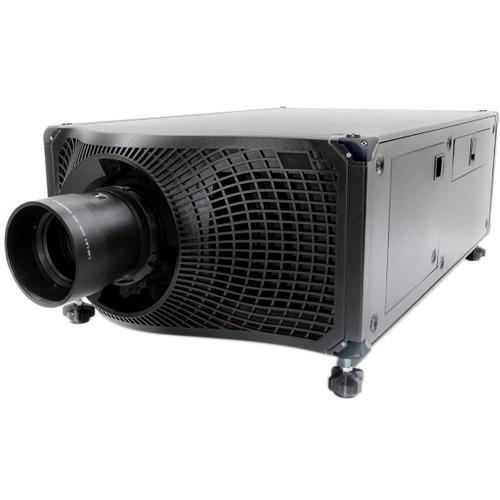

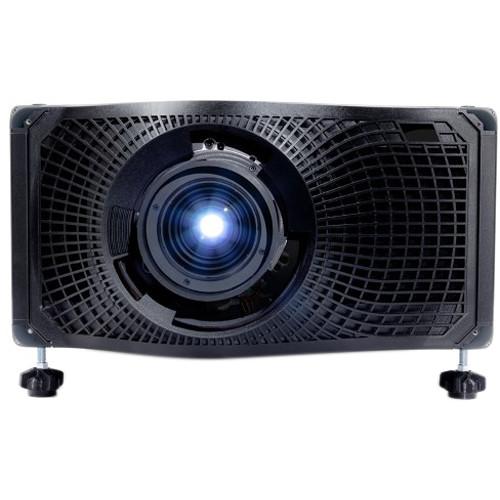

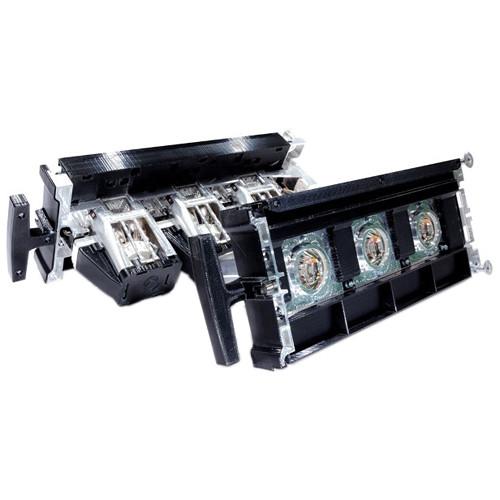

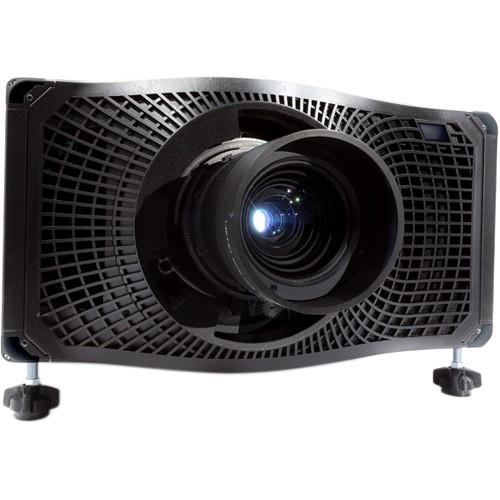

Product description The Boxer Series 4K30 3DLP Projector from Christie features a native resolution of 4096 x 2160 and 30,000 lumens of brightness with a 2000:1 contrast ratio. Featuring six-lamp mercury illumination, the Christie Boxer series projector provides 1,500 hours of lamp life at 70% brightness. The Christie Boxer projector has added benefits of single-phase power, built-in warping and blending, omnidirectional installation options, a full-range of connectivity, and Christie TruLife electronics. This 3DLP projector is designed for high-impact rental staging and large venue events. Performance - Christie TruLife processing ensures better color reproduction and image quality
- Pixel clock—1.2 Gpx/s Christie TruLife Electronics
- Mercury lamps provide double the life of Xenon illumination
- All inputs offer preview capability and fast syncing or switching
- Omnidirectional deployment capabilities
- Built-in Christie Twist image warping and blending software

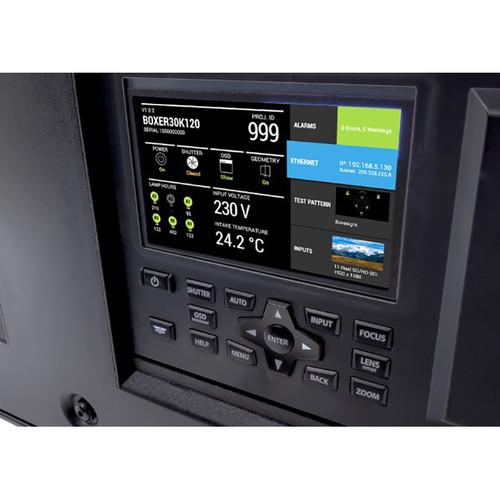

- Preview screen for at-a-glance status updates
- High Bandwidth Multi-Input Card (HBMIC) with two 12G-SDI inputs
- Integrated near field communication (NFC) for lamp information tracking
- AV system integration with Terra SDVoE input card
- Full bandwidth point-to-point fiber capabilities supporting up to 40 Gbit/s on a single cable with Christie Link

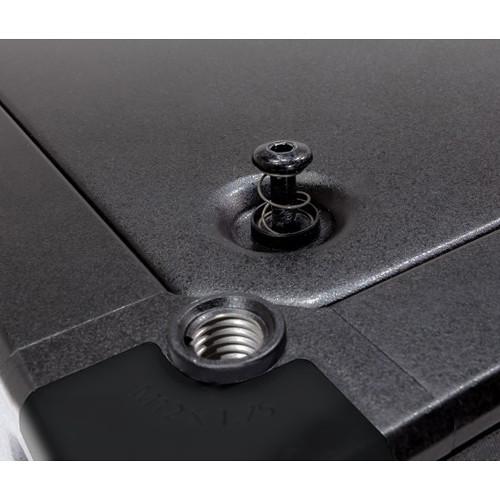

- Easy rigging and stacking
Networking - Ethernet (10/100) RJ45 ports
Lens Mount - Tool-free lens insertion system
|
Upload User Manual
Have you got an user manual for the Christie Boxer Series 4K30 30,000-Lumen 3DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie Boxer Specs | | | Display System | 3-Chip 1.38" DMD DLP | | Native Chip Resolution | 4096 x 2160 (UHD 4K) | | Supported Resolutions | Maximum: UHD 4K - 4096 x 2160 | | Max Brightness | White: 30,000 Lumens
Color: 30,000 Lumens 29,000 lumens ANSI (typical)
32,500 lumens ISO | | Contrast Ratio | 2000:1 | | Lens | None | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x DisplayPort Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x Ethernet (RJ45) LAN (Input) 1 x high bandwidth multi-input card (HBMIC)
2 x 12G-SDI
1 x Fiber (QSFP+) for use with Christie Link Transmitter | | | | Light Source | Lamp (6 x NSH) | | Lamp Power | 450 W | | Expected Lamp Life | Medium Brightness: 1500 Hours
Low Brightness: 2500 Hours | | Fan Noise | Full Brightness: 49 dB | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 - 80% | | Dimensions (W x H x D) | 37.8 x 23.5 x 12.0" / 96.0 x 59.7 x 30.5 cm | | Weight | 160.00 lb / 72.57 kg |
