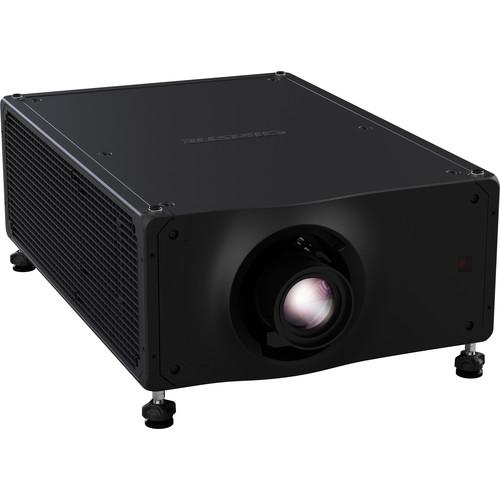

User Manual for Christie Crimson Series 3DLP Laser Phosphor 23,300-Lumen Projector Click to enlarge the picture
Contents of the user manual for the Christie Crimson Series 3DLP Laser Phosphor
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie Crimson Series 3DLP Laser Phosphor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The Crimson Series 3DLP Laser Phosphor Projector from Christie is a 3DLP laser phosphor projector with up to 23,300, 21,000 center, and 20,000 ANSI lumens that is built for high-usage applications. It is designed to be used with the Christie M & J series lenses and features a compact form factor, quiet operation, and 360-degree orientation. This projector also features two 12G-SDI, one HDMI 2.0, one DisplayPort 1.2, one Christie Link (QSFP+ Fiber), and one HDBaseT input. BoldColor Technology, TruLife electronics, and built-in Twist enhance the projector operation. This projector is compatible with Mystique and is IP5X rated. Optional signal input cards can provide additional dual link DVI, dual 3G/HD/SD-SDI, twin DisplayPort, twin HDMI, and high bandwidth multi-input ports. - For 3D mapping, arenas/stadiums, broadcast, corporate, events/large venues, government, high education, houses of worship, manufacturing, and theme parks and attractions
- BoldColor technology enhances color performance and saturation
- Long-life laser light source for up to 20,000 hours of virtually maintenance-free operation
- High-image quality 3DLP imaging
- TruLife electronics for ultra-fast processing up to 60Hz
- Twist built-in for quick and easy setup
- Compatible with Christie Mystique to simplify the design, installation, and maintenance of complex projection setups
- Fully omnidirectional, unrestricted design and installation flexibility
- Designed to work with Christie M and J series lenses
- Optional dual-link DVI input card, dual 3G/HD/SD-SDI input card, twin DisplayPort input card, twin HDMI input card, and high-bandwidth, multi-input card (HBMIC)
- Two 12G-SDI inputs via BNC connectors
- Full bandwidth point-to-point fiber capabilities supporting up to 40 Gbps on a single cable with Christie Link via QSFP+ Fiber port
In the Box Christie Crimson Series 3DLP Laser Phosphor 23,300-Lumen Projector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie Crimson Series 3DLP Laser Phosphor 23,300-Lumen Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie Crimson HD25 Specs | | | Display System | 3-Chip 0.95" DMD DLP | | Native Chip Resolution | 1920 x 1080 (HD) | | Max Brightness | White: 20,000 Lumens
Color: 23,300 Lumens | | Contrast Ratio | 2000:1 | | DLP Link 3D | Yes | | | | Inputs/Outputs | 2 x Composite (BNC) Video (Input)
1 x HDMI Audio/Video (Input)
1 x DisplayPort Audio/Video (Input)
1 x HDBaseT (RJ45) Audio/Video, LAN, Power (Input) | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Dimensions (W x H x D) | 37.7 x 25.0 x 11.9" / 95.8 x 63.5 x 30.2 cm | | Weight | 165.00 lb / 74.84 kg |
