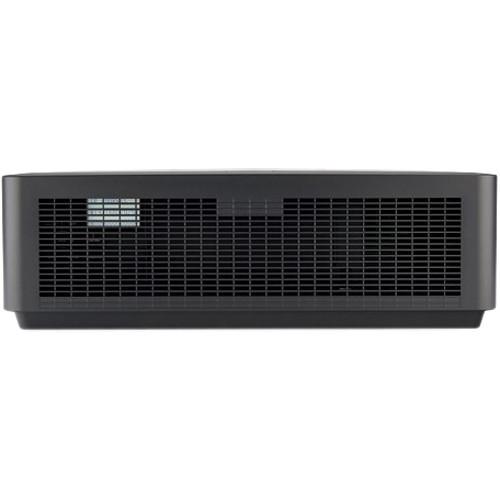

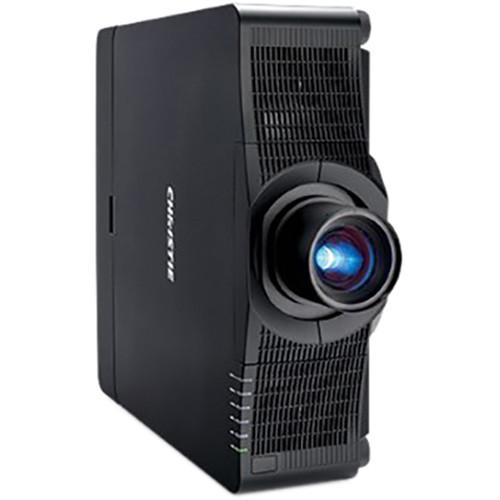

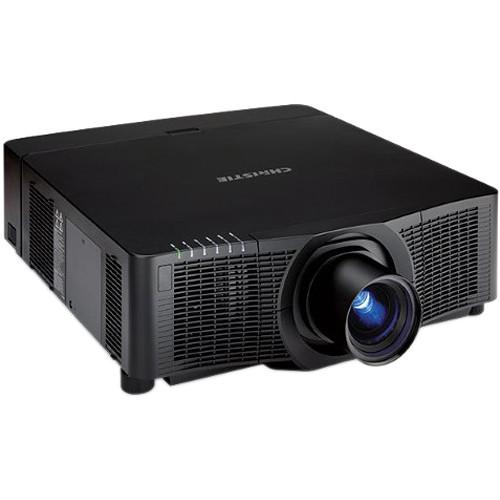

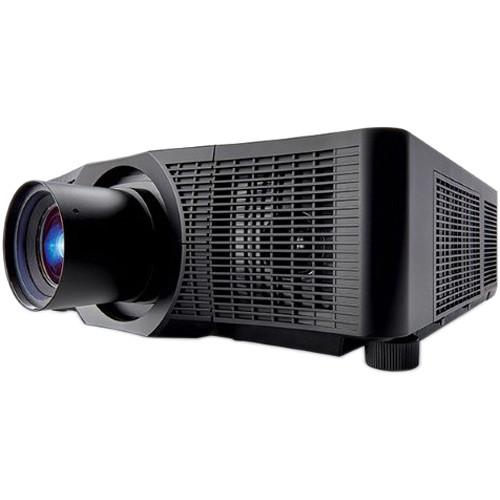

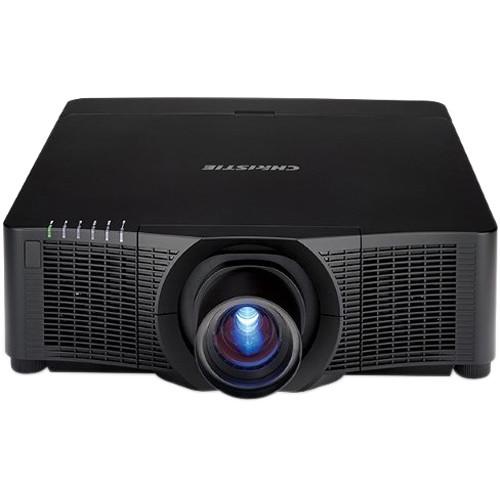

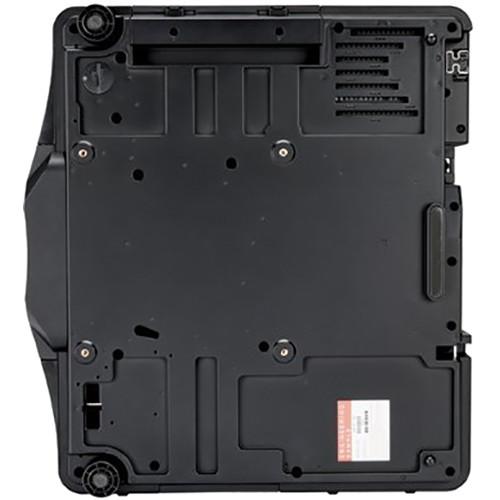

User Manual for Christie D Series LHD720i-D 7650-Lumen Full HD 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Christie D Series LHD720i-D 7650-Lumen Full
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie D Series LHD720i-D 7650-Lumen Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|

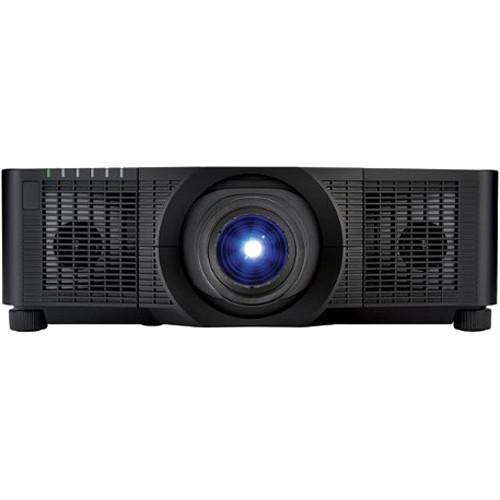

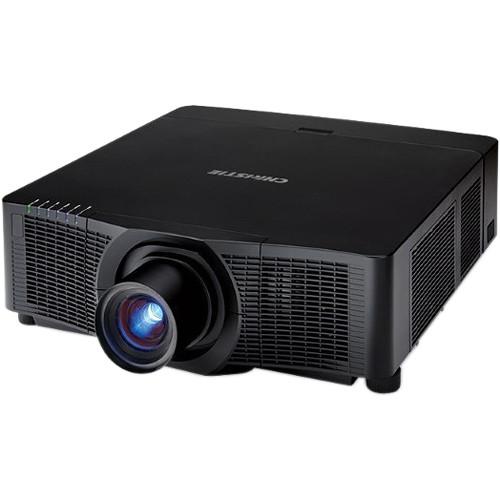

Product description The black D Series LHD720i-D 3LCD Projector from Christie is suitable for meeting rooms, event spaces, classrooms, and auditoriums. It delivers 7650 lumens of brightness with a 65,000:1 contrast ratio. It offers embedded warping and blending, and supports a native resolution of 1920 x 1080. The lamp features a long life of up to 4000 hours in Eco mode. The LHD720i-D offers the professional a variety of connectivity options including composite video, DisplayPort, HDMI, and 3G SD/HD-SDI inputs. - 1920 x 1080 native resolution
- 25.2 to 162 MHz pixel clock
- Built-in warping and blending
- Horizontal and vertical scaling while maintaining aspect ratio on all inputs
- Digital image shift technology
- eClarity for advanced image processing
- Precise color control with Advanced Color Management
- Supports DICOM simulation mode for training purposes
- Camera-based, easy blend and warp with included software
- USB Type-A connector for connecting a wireless USB dongle

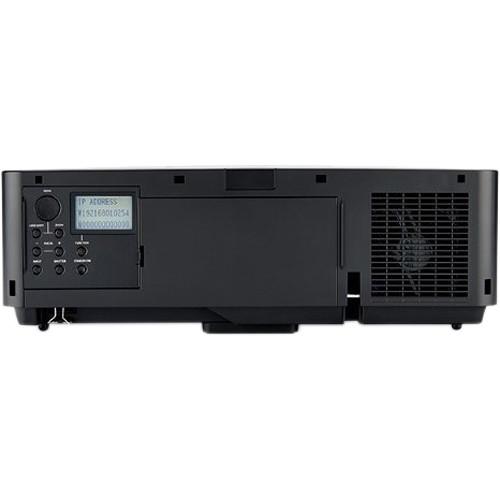

- Built-in LCD status panel
- Supports portrait orientation
- Portability with a small and light form factor
- Integration with third-party control systems
- Supports picture-in-picture and picture-by-picture
- High Dynamic Contrast Range (HDCR)
- Single point of connection through HDBaseT and Christie OneConnect
- Improved projector management with Christie QuickConnect
- Ease of use and maintenance
In the Box Christie D Series LHD720i-D 7650-Lumen Full HD 3LCD Projector (No Lens, Black) Limited 3-Year Warranty Limited 1-Year or 500-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie D Series LHD720i-D 7650-Lumen Full HD 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

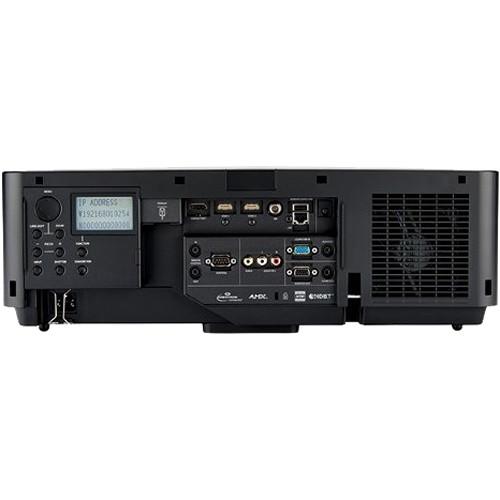

Technical parametersChristie LHD720I Specs | | | Display System | 3-Chip 0.74" Polysilicon TFT LCD 3X inorganic TFT active matrix | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Full HD 1080p - 1920 x 1080 | | Max Brightness | White: 6800 Lumens
Color: 6800 Lumens ISO: 7650 lumens and ANSI: 6800 lumens | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 65000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Lens | None | | | | Inputs/Outputs | 1 x 3G-SDI (BNC) Video (Input)
2 x HDMI Audio/Video (Input)
1 x DisplayPort Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x Composite (BNC) Video (Input)
1 x USB Type-A Female (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x 1/8" (3.5 mm) Mini Control (Input) 1 x 15-pin D-sub (RGB and Component) input | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 430 W | | Expected Lamp Life | Full Brightness: 3000 Hours Eco Mode: Up to 4000 hours
Portrait Mode: Up to 1000 hours | | Fan Noise | Full Brightness: 41 dB Eco Mode: 33 dBA | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.9 to 5.9 A
