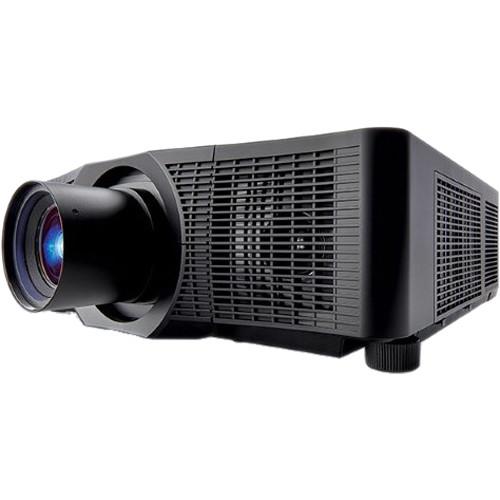

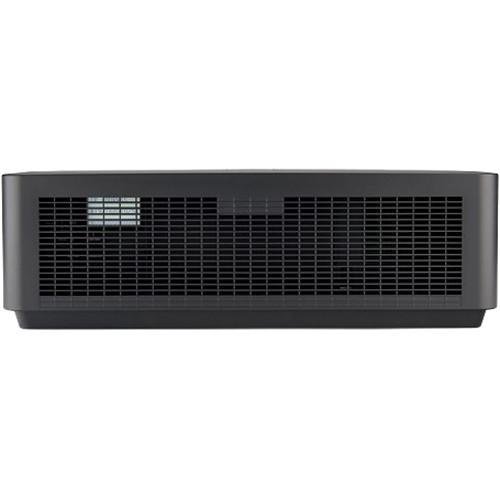

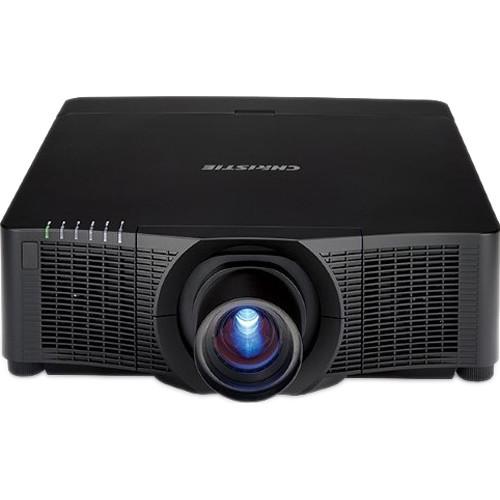

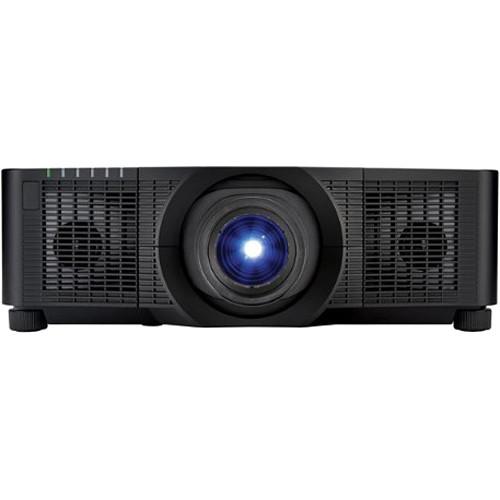

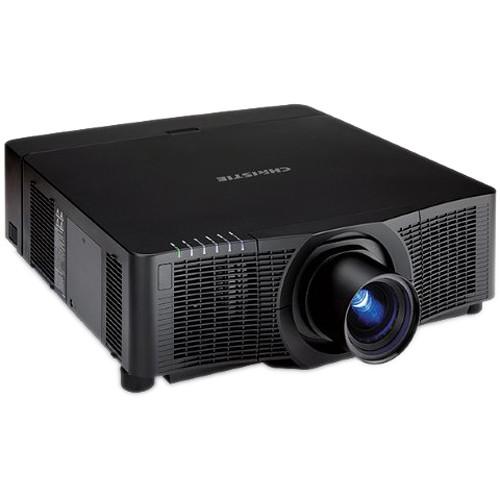

Christie D Series LW751i-D 3LCD Projector

Search your instruction manual in PDF to download

User Manual for Christie D Series LW751i-D 3LCD Projector

Click to enlarge the picture
Christie D Series LW751i-D 3LCD Projector Contents of the user manual for the Christie D Series LW751i-D 3LCD Projector
  • Product category: Multimedia Projectors Christie
  • Brand: Christie
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Christie Multimedia Projectors

Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector Christie D Series LW751i-D 3LCD Projector
User manual for the Christie D Series LW751i-D 3LCD Projector contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Christie product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!



Product description

The white D Series LW751i-D 3LCD Projector from Christie delivers 7500 lumens of brightness with a 10,000:1 contrast ratio. It offers embedded warping and blending, and supports native resolution of 1280 x 800. The projector is powered by 3LCD system and features a wide color gamut. The lamp features a long life of up to 4,000 hours in Eco mode. LW751i-D 3LCD Projector offers a variety of connectivity options including composite video, DisplayPort, and HDMI inputs.Using Christie LiveViewer software (included), you can share audio and video content directly from your computer or laptop to your projector via your Local Area Network or wirelessly (optional USB dongle required). Christie LiveViewer supports wide flexibility for collaborative environments such as classrooms, meeting rooms or large venues, whether you have content from single or multiple sources, or you're projecting content using multiple projectors. You can collaborate simply and effectively with up to 50 participants, including moderator control of up to 4 simultaneous presentations, on one or various displays when using multiple projectors. You can also make your session secure to prevent unauthorized sharing by asking content participants to enter a passcode.
    • Built-in warping and blending
    • Portrait orientation with no special lamps required
    • Precise color control with Advanced Color Management
    • Good image manipulation with digital image shift
    • Stable, uniform brightness in high ambient light environments with High Dynamic Contrast Range (HDCR)
    • eClarity for advanced image processing
    • Single point of connection through HDBaseT and Christie OneConnect
    • AMX and Crestron control
    • Improved security functionality for asset management
    • Improved projector management with Christie QuickConnect
In the Box Christie D Series LW751i-D 3LCD Projector (No Lens, White)
  • Power Cord
  • 6.6' RGB Cable
  • 1.3' HDMI-DVI Cable
  • Wireless Remote Control Unit
  • Adapter Cover
  • Terminal Cover
  • 2 x HDMI Cable Holder
  • 2 x Cable Tie
  • Limited 3-Year Warranty
  • Limited 500-Hour or Limited 1-Year Warranty on Lamp
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Christie D Series LW751i-D 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Christie LW751ID Specs

    Display System 3-Chip 0.75" Polysilicon TFT LCD
    Native Chip Resolution 1280 x 800
    Supported Resolutions Minimum: VGA - 640 x 480
    Maximum: WUXGA - 1920 x 1200
    Max Brightness 7500 Lumens
    Aspect Ratio 16:10
    Contrast Ratio 10000:1

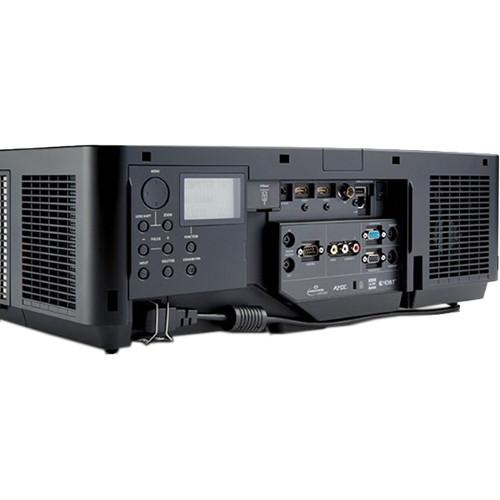

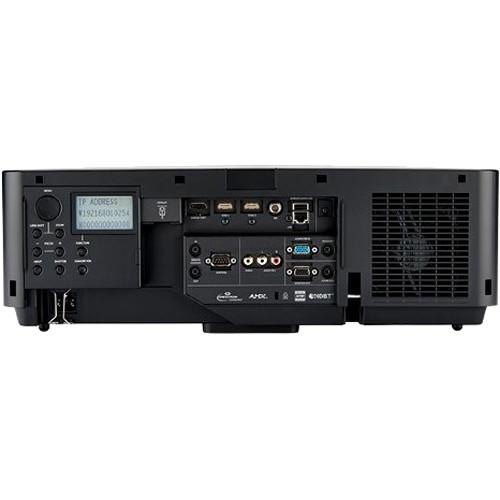

    Inputs/Outputs 2 x HDMI Audio/Video
    1 x DisplayPort Audio/Video
    1 x HDBaseT (RJ45) Control
    1 x VGA (DE-15) Video
    1 x Composite (RCA) Video
    1 x USB Type-A Female
    Lamp Power 370 W
    Expected Lamp Life Medium Brightness: 2000 Hours
    Low Brightness: 4000 Hours 1000 hours in Portrait mode.
    Fan Noise Medium Brightness: 41 dB
    Low Brightness: 33 dB
    Heat Dissipation 1979 BTU (AC 100 to 120V)
    1911 BTU (AC 220 to 240V)
    Power Consumption Medium Brightness: 580 W Approximately 560 W @ 220 to 240 VAC.
    Max Operating Altitude 10000' / 3048 m
    Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 10 - 85%
    Dimensions (W x H x D) 18.0 x 19.6 x 6.7" / 45.7 x 49.8 x 17.0 cm without feet.
    Weight 24.5 lb / 11.1 kg without lens.
    Package Weight 32.0 lb
    Box Dimensions (LxWxH) 27.8 x 22.5 x 12.3"
