User Manual for Christie D Series LWU701i-D 7000L WUXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Christie D Series LWU701i-D 7000L WUXGA
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie D Series LWU701i-D 7000L WUXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|

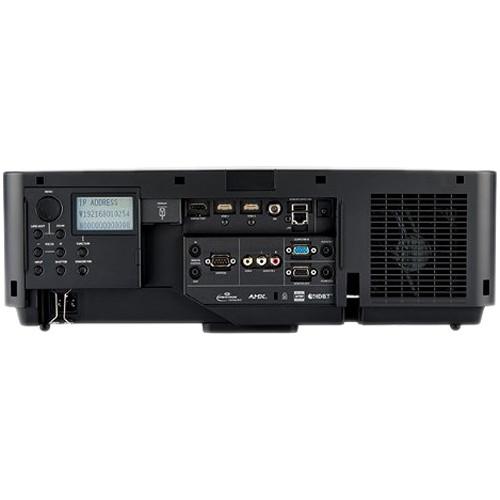

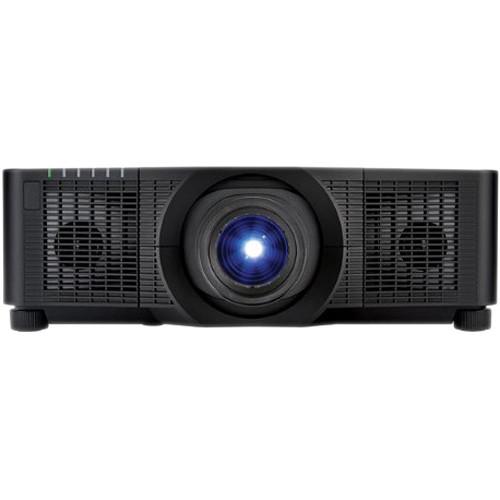

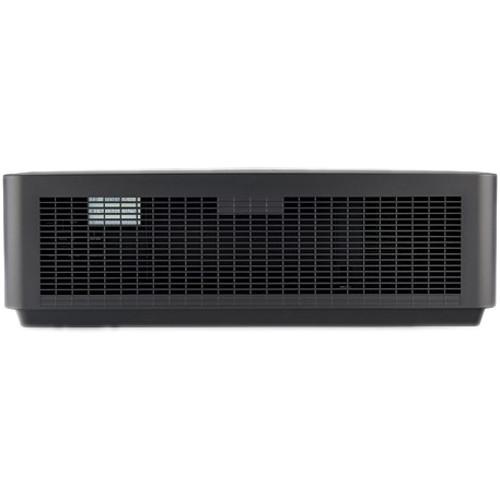

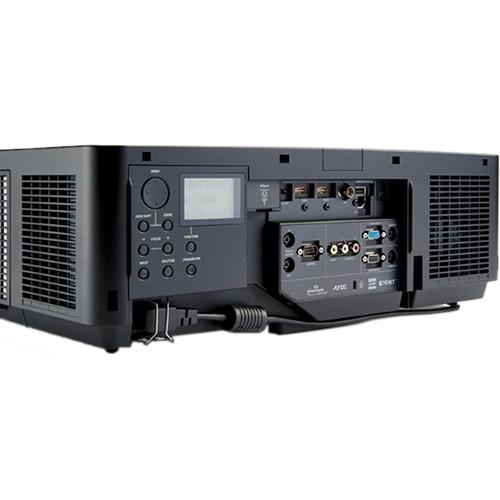

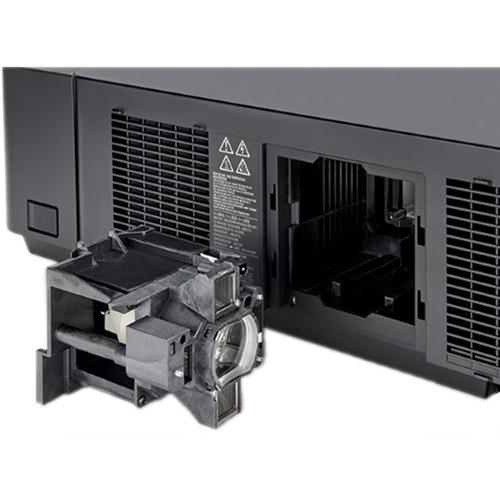

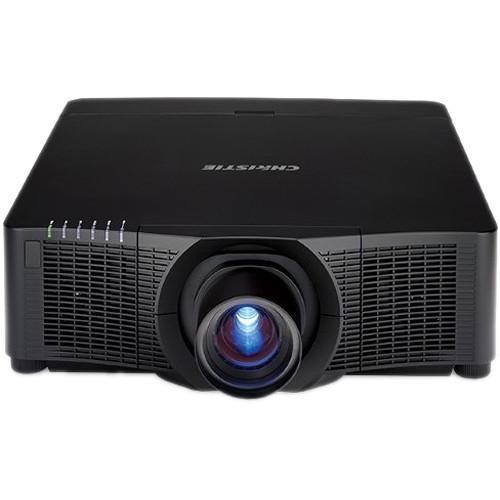

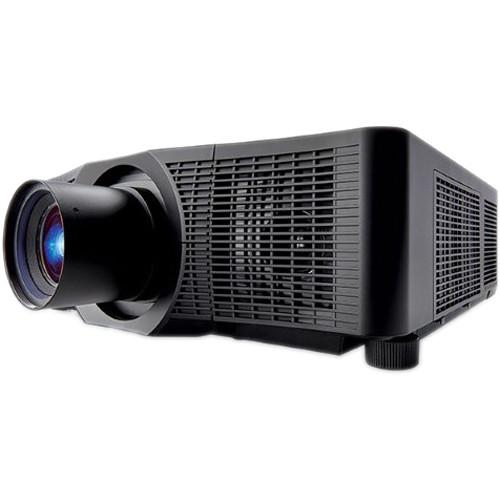

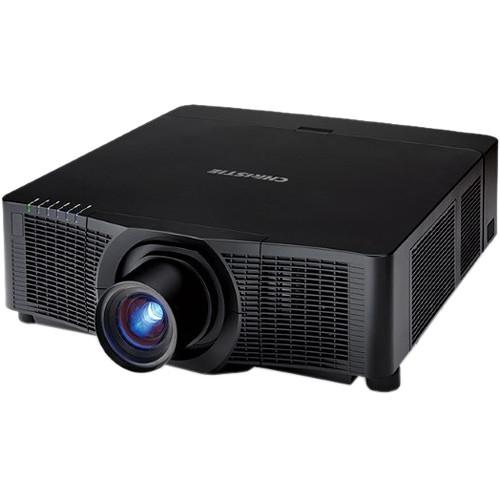

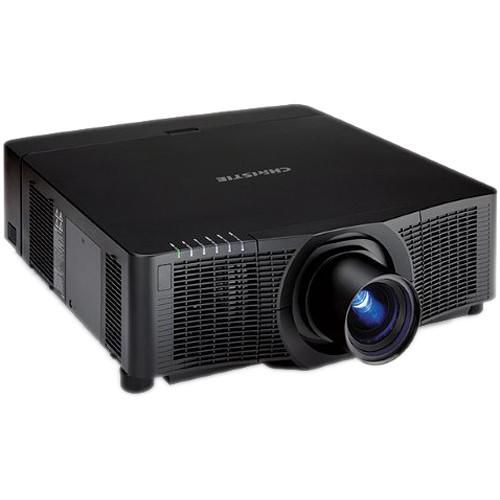

Product description The black D Series LWU701i-D 7000L WUXGA 3LCD Projector from Christie delivers 7000 lumens of brightness with a 10,000:1 contrast ratio. It offers embedded warping and blending, and supports a native resolution of 1920 x 1200. The projector is powered by a 3LCD system and provides a wide color gamut. The lamp features a long life of up to 4,000 hours in Eco mode. The LWU701i-D offers the professional a variety of connectivity options including composite video, DisplayPort, and HDMI inputs.Using the included Christie LiveViewer software, you can share audio and video content directly from your computer to the projector via your Local Area Network or wirelessly via the optional USB dongle. Christie LiveViewer supports wide flexibility for collaborative environments such as classrooms, meeting rooms, or large venues, whether you have content from single or multiple sources or you're projecting content using multiple projectors. You can collaborate simply and effectively with up to 50 participants, including moderator control of up to four simultaneous presentations, on one or various displays when using multiple projectors. You can also make your session secure with a shared passcode to prevent unauthorized sharing. - Key Features
-
- Built-in warping and blending
- Capable of 360° on-axis
- ILS lens memory
- Supports DICOM simulation mode for training purposes

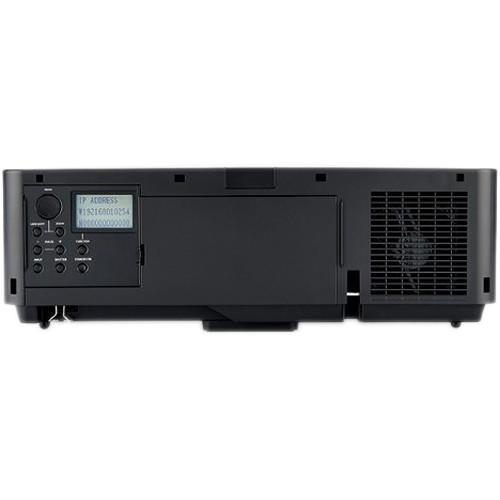

- Built-in LCD status panel
- Portrait orientation with no special lamps required
- Precise color control with Advanced Color Management
- Good image manipulation with digital image shift
- Stable, uniform brightness in high-ambient light environments with High Dynamic Contrast Range (HDCR)
- eClarity for advanced image processing
- Single point of connection through HDBaseT and Christie OneConnect
- AMX and Crestron control
- Improved security functionality for asset management
- Improved projector management with Christie QuickConnect
In the Box Christie D Series LWU701i-D 7000L WUXGA 3LCD Projector (No Lens, Black) Power Cord RGB Cable (6.6') HDMI to DVI Cable (1.3') Wireless Remote Control Unit Adapter Cover Terminal Cover 2 x HDMI Cable Holder 2 x Cable Tie Limited 3-Year Warranty Limited 1-Year or 500-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie D Series LWU701i-D 7000L WUXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie LWU701ID Specs | Display System | 3-Chip 0.76" Polysilicon TFT LCD | Native Chip Resolution | 1920 x 1200 | Supported Resolutions | Minimum: VGA - 640 x 480 Maximum: WUXGA - 1920 x 1200 | Max Brightness | 7000 Lumens | Aspect Ratio | 16:10 | Contrast Ratio | 10000:1 | Color Depth | 10-Bit (1.07 Billion Colors) | | Inputs/Outputs | 2 x HDMI Audio/Video 1 x 3G-SDI (BNC) Video 1 x DisplayPort Audio/Video 1 x HDBaseT (RJ45) Control 1 x VGA (DE-15) Video 1 x Composite (RCA) Video 1 x USB Type-A Female | | Light Source | Lamp (1 x UHP) | Lamp Power | 430 W | Expected Lamp Life | Medium Brightness: 2000 Hours Low Brightness: 4000 Hours 1000 hours in Portrait mode. | Fan Noise | Medium Brightness: 40 dB Low Brightness: 33 dB | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | Heat Dissipation | 2047 BTU (AC 100 to 120V) 1979 BTU (AC 220 to 240V) | Power Consumption | Medium Brightness: 600 W Approximately 580 W @ 220 to 240 VAC. | Max Operating Altitude | 10000' / 3048 m | Temperature | Operating 32 to 104°F (0 to 40°C) Humidity: 10 - 85% | Dimensions (W x H x D) | 18.0 x 19.6 x 6.7" / 45.7 x 49.8 x 17.0 cm without feet. | Weight | 24.5 lb / 11.1 kg without lens. | | Package Weight | 32.0 lb | Box Dimensions (LxWxH) | 27.6 x 22.3 x 12.5" |
