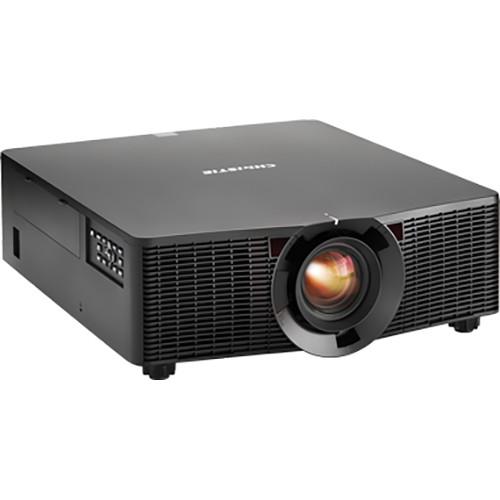

User Manual for Christie D12HD-H 1DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie D12HD-H 1DLP Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie D12HD-H 1DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The black D12HD-H 1DLP Projector from Christie offers built-in color matching for a uniform image in a multiple-projector configuration with blending and warping capabilities for curved surfaces. It provides an ANSI contrast of 250:1, a full on/off contrast of 1200:1, and a contrast of 5000:1 when the dynamic aperture is enabled. There is an HD resolution of 1920 x 1080, with a brightness level of 11,000 center lumens. The projector features dual-lamp capability and a lamp life of up to 1500 hours at 465W. It also provides eco-friendly options and includes an IR remote, a power cord, and a package of three coarse dust filters. - Built-in warping, blending, and color correction
- A wide selection of inputs allows for easy integration
- Ethernet with ChristieNET connectivity
- Tool-free lens insertion system
- Motorized horizontal and vertical lens offset
- Motorized zoom and lens focus adjustment
In the Box Christie D12HD-H 1DLP Projector (Black) Power Cord 3 x Coarse Dust Filters IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie D12HD-H 1DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie D12HDH Specs | | | Display System | 1-Chip 0.95" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 11,000 Lumens | | Offset | 133% ± vertical
50% ± horizontal | | Contrast Ratio | 250:1 | | Dynamic Contrast Ratio | 1200:1 | | Color Wheel | 6-Segment (R, G, B, W, Y, C) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 85 kHz | | | | Inputs/Outputs | 2 x HDMI Video (Input)
1 x 3G-SDI (BNC) Video (Input)
1 x DVI-D Video (Input)
1 x DisplayPort Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x Composite (BNC) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Component (3RCA) Video (Input)
1 x USB Type-A Female (Input)
1 x Mini-USB Type-B Female (Input)
1 x HDBaseT (RJ45) Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x VGA (DE-15) Video (Output) | | | | Light Source | Lamp (2 x UHP) | | Lamp Power | 465 W | | Expected Lamp Life | Full Brightness: 1500 Hours
Medium Brightness: 2000 Hours | | Fan Noise | Medium Brightness: 40 dB
Low Brightness: 37 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 3753 BTU
3003 BTU | | Power Consumption | Medium Brightness: 1180 W
Low Brightness: 950 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 23.7 x 20.4 x 7.1" / 60.2 x 51.8 x 18.0 cm | | Weight | 52.5 lb / 23.8 kg | | | | Package Weight | 71.0 lb | | Box Dimensions (LxWxH) | 30.9 x 26.3 x 15.8" |
