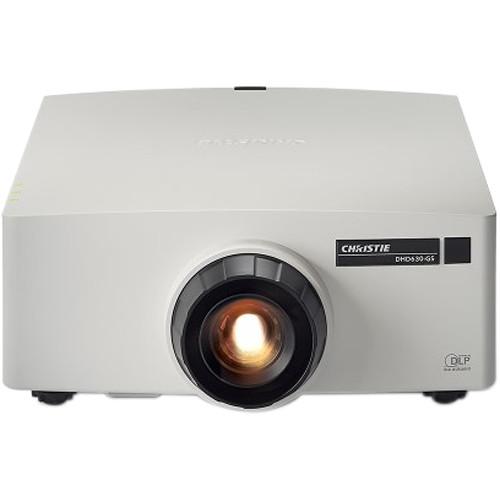

User Manual for Christie DHD630-GS 6125-Lumen Full HD 1DLP Laser Phosphor Projector Click to enlarge the picture
Contents of the user manual for the Christie DHD630-GS 6125-Lumen Full HD 1DLP
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie DHD630-GS 6125-Lumen Full HD 1DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|

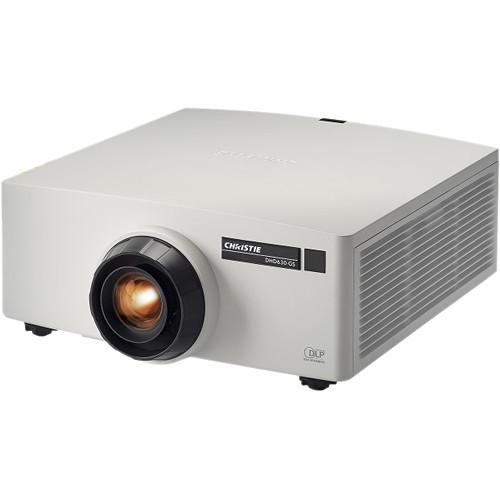

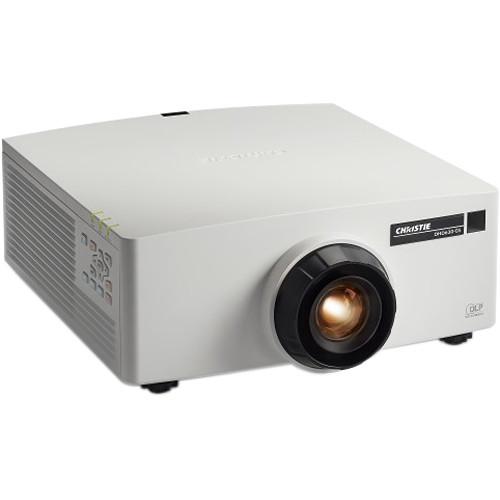

Product description The white DHD630-GS 1DLP Laser Phosphor Projector from Christie features laser phosphor diodes that produce 6125 ISO lumens of light output and provide up to 20,000 hours of Illumination life. The projector offers a native resolution of 1920 x 1080 and a 1200:1 contrast ratio. With the Christie RealBlack technology, the projector can produce a 4,000,000:1 full on/off contrast ratio. - Performance
-
- 1DLP technology for improved image quality
- Phosphor laser diodes for 6125 ISO lumens of light output
- Christie’s RealBlack technology produces 4,000,000:1 full on/off contrast ratio
- 162 MHz pixel clock
- Supports HDTV input formats—VGA through to WUXGA (1920 x 1200)
- Horizontal and vertical scaling while maintaining aspect ratio across all inputs

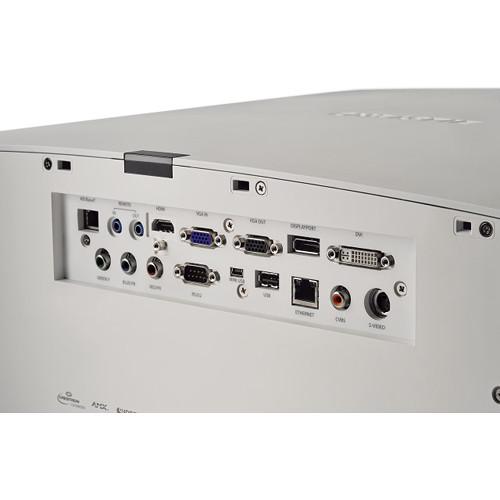

- 3.5mm stereo female remote connector for serial communications and power
- RJ45 connector to control over wired network connection
- Compatible with all GS Series lenses (lens available separately)
- Noise rating of 36 dBA allows for quiet operation
- Compact and light
- 24/7 operation
- 3D Inputs
-
- HDMI 1.4, HDBaseT—frame packed, top/bottom, and side by side
- Up to 120 Hz output
- Does not support frame sequential 3D inputs
- 3D Sync out (BNC) connector for genlocking projectors or controlling emitter or polarizer
- Control & Networking
-
- Control via HDBaseT, RS232 in, and IR remote
- Ethernet (10/100) RJ45 connection

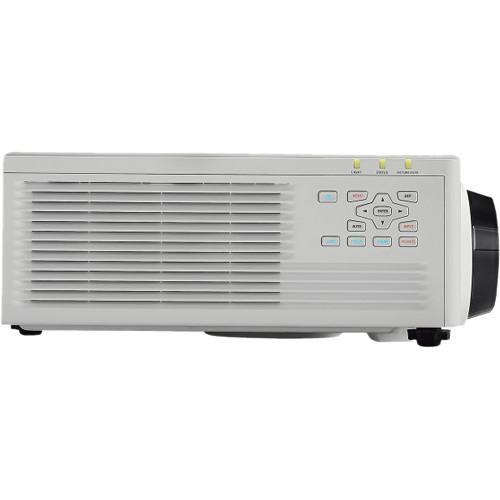

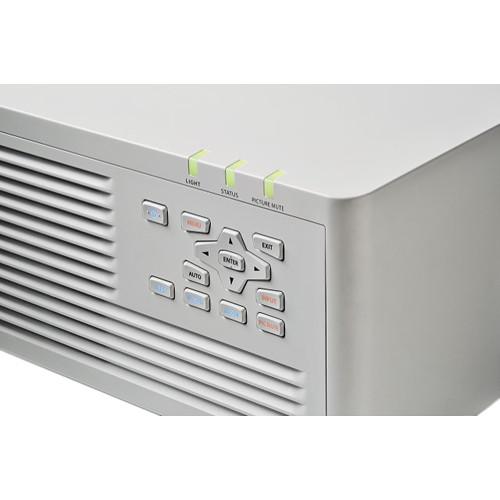

- Built-in backlit keypad
- Wired remote control (3.5mm stereo)
- Loop out available for daisy chaining
- Lens Mount
-
- Boresight adjustable mount
- Motorized horizontal (±15%) and vertical (±50 and ±60%) lens offsets
- Motorized zoom and focus adjustment
- Regulatory
-
- UL / CSA / IEC 60950-1
- FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO
- RoHS, REACH, and WEEE
In the Box Christie DHD630-GS 6125-Lumen Full HD 1DLP Laser Phosphor Projector (No Lens) IR Remote with Wired Remote Jack (Wire Available Separately) AC Line Cords for Projector Limited 3-Year Warranty Limited 3-Year or 15,000-Hour Warranty on Illumination System, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie DHD630-GS 6125-Lumen Full HD 1DLP Laser Phosphor Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie 140-048103-01 Specs | | | Display System | 1-Chip 0.65" DMD DLP DMD S600HB | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 640
Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | White: 5400 Lumens
Color: 5400 Lumens ISO: 6125 lumens and ANSI: 5400 lumens | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 1200:1 4,000,000:1 with Christie RealBlack enabled
ANSI 250:1 | | Dynamic Contrast Ratio | 6000:1 | | Color Wheel | 4-Segment (R/G/B/Y) | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 120 Hz | | Lens | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 36 dB With typical 2x wheel speed
Eco2 Mode: 34 dBA | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 9.5 A With 15 A fuse | | Power Consumption | Medium Brightness: 650 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 32 to 104°F / 0 to 40°C 32-104°F (0-40°C) at 0-2500' (0-762 m) altitude
32-86°F (0-30°C), 5000-10,000' (1524-3048 m) altitude | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 19.9 x 17.9 x 7.6" / 50.5 x 45.5 x 19.3 cm | | Weight | 39.9 lb / 18.10 kg |
