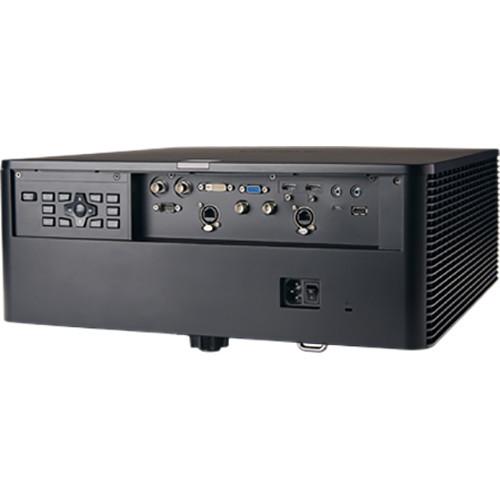

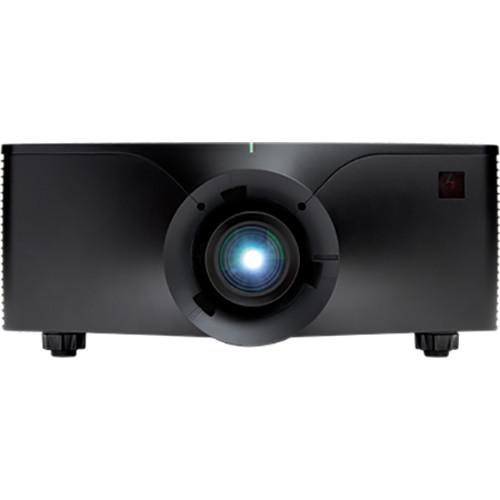

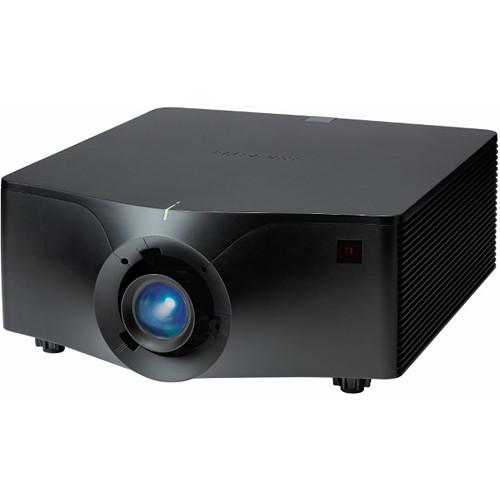

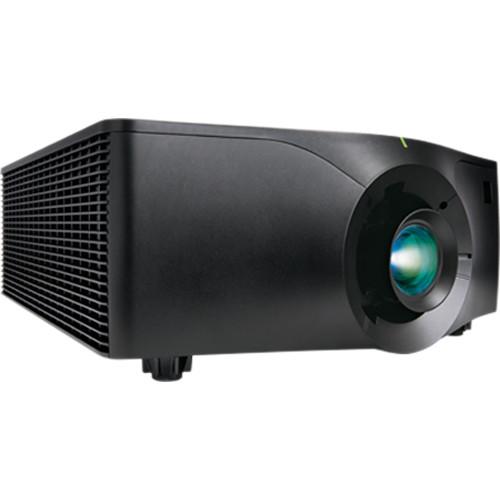

User Manual for Christie DHD700-GS 1DLP HD Laser Phosphor Projector Click to enlarge the picture
Contents of the user manual for the Christie DHD700-GS 1DLP HD Laser Phosphor
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie DHD700-GS 1DLP HD Laser Phosphor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The black DHD700-GS 1DLP HD Laser Phosphor Projector from Christie features laser phosphor illumination, which eliminates the need for lamp and filter replacements and provides up to 20,000 hours of Illumination life. It offers a maximum resolution of 1920 x 1080 with a brightness level of 5900 ANSI lumens. In addition, the projector is suitable for use in boardrooms, higher education, houses of worship, and smaller location-based entertainment venues. Performance - Laser phosphor illumination and 1DLP technology for improved image quality and reliability
- Built-in color matching for a more uniform image in a multiple projector configuration
- Built-in grid-based warping and blending for complex applications
Networking - Ethernet (10/100) RJ45 with ChristieNET connectivity
- Wired remote control (3.5mm stereo)
- Loop out available for daisy chaining
Lens Mount - Tool-free lens insertion system
- Motorized horizontal and vertical lens offset
- Motorized zoom and focus adjustment
Regulatory - FCC Class A, CE, CCC, KC, EAC, PSE, CU, SABS, BIS, VCCI, RCM, UKR, TER, SASO
In the Box Christie DHD700-GS 1DLP HD Laser Phosphor Projector (No Lens, Black) Power Cord IR Remote Control Rear Input/Keypad Panel Cover Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie DHD700-GS 1DLP HD Laser Phosphor Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie DHD700 Specs | | | Display System | 1-Chip 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 6600 Lumens | | Offset | 120% ± vertical
30% ± horizontal | | Contrast Ratio | 250:1 | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 85 kHz | | | | Inputs/Outputs | 2 x HDMI Video (Input)
1 x 3G-SDI (BNC) Video (Input)
1 x DVI-D Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Mini-USB Type-B Female (Input)
1 x USB Type-A Female (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x Ethernet (RJ45) Control (Input)
1 x 3G-SDI (BNC) Video (Output)
1 x RS-232C (Unspecified Connector) Control | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 32 dB | | Heat Dissipation | 2608.7 BTU
2693.9 BTU | | Power Consumption | Medium Brightness: 790 W
Medium Brightness: 765 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 90% | | Dimensions (W x H x D) | 18.9 x 7.0 x 20.0" / 480.1 x 177.8 x 508.0 mm | | Weight | 50.00 lb / 22.68 kg | | | | Package Weight | 65.05 lb | | Box Dimensions (LxWxH) | 29.0 x 23.5 x 14.0" |
