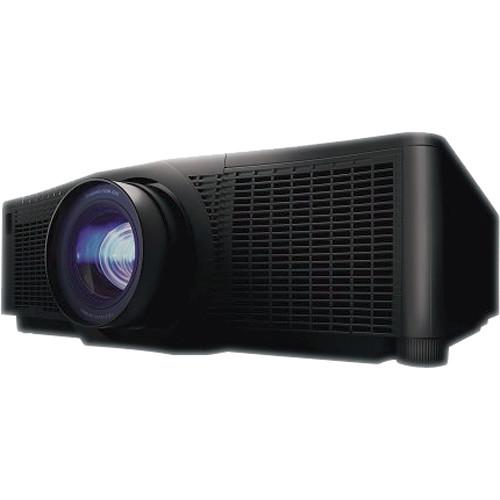

User Manual for Christie DHD951-Q 1DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie DHD951-Q 1DLP Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie DHD951-Q 1DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The high performance black DHD951-Q 1DLP Projector from Christie offers edge blending, geometric correction, and a portrait mode. It features 3G-SDI and dual HDMI inputs, a status monitor display, and motorized zoom, focus, and lens shift with memory. The native 1920 x 1080 HD resolution and 2500:1 contrast ratio deliver a superior image. - 3G-SDI and dual HDMI inputs
- HDBaseT control and networking support
- Motorized zoom, focus, and lens shift with memory
- Presentation does not require PC
In the Box Christie DHD951-Q 1DLP Projector (Black) Power Cord RGB Cable Wireless Remote Control 2 x AA Batteries Adapter Cover 2 x Ferrite Core and Band 2 x Cable Ties Limited 3-Year Warranty User Manual PDF 17.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie DHD951-Q 1DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie DHD951Q Specs | | | Display System | 1-Chip 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 8500 Lumens | | Uniformity | <90% | | Offset | 135% + vertical
50% - vertical
22% ± horizontal | | Contrast Ratio | 2500:1 | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x 3G-SDI (BNC) Video (Input)
1 x Composite (BNC) Video (Input)
2 x HDMI Video (Input)
1 x DVI-D Video (Input)
1 x HDBaseT (RJ45) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x VGA (DE-15) Video (Output)
1 x HDBaseT (RJ45) Video (Output)
1 x Unspecified Signal (DE-9) Video (Output)
1 x Ethernet (RJ45) Control (Output) | | | | Light Source | Lamp (2 x P-VIP) | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 29 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 3618 BTU (AC 110 to 120V)
3379 BTU (AC 220 to 240V) | | Power Consumption | Medium Brightness: 1060 W
Medium Brightness: 990 W | | Max Operating Altitude | 1000' / 304 m | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 18.2 x 21.1 x 6.9" / 46.2 x 53.6 x 17.5 cm | | Weight | 37.5 lb / 17.0 kg |
