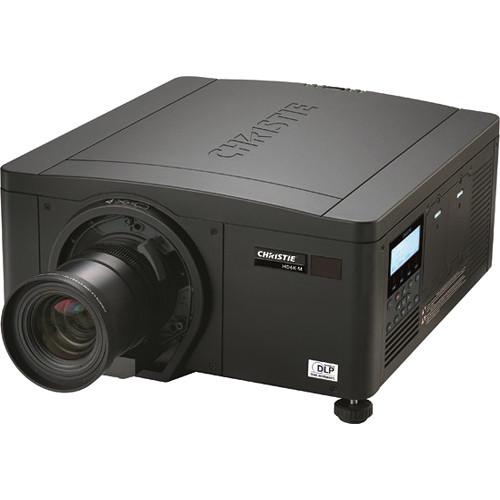

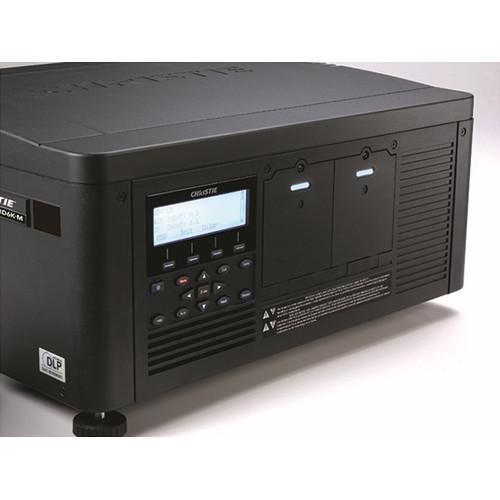

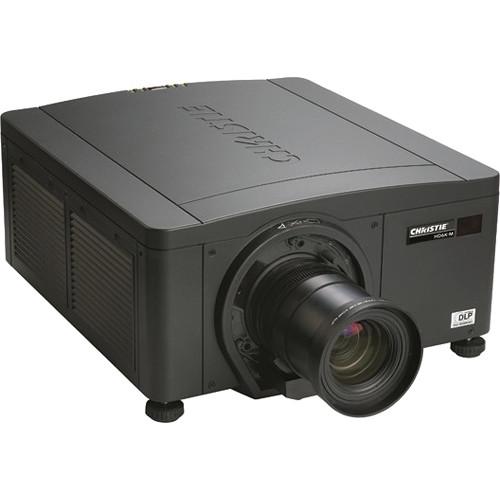

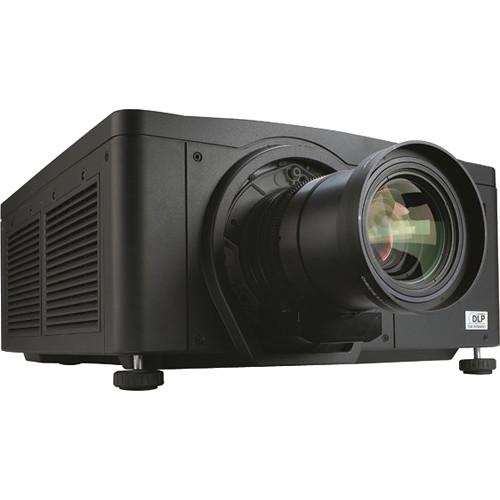

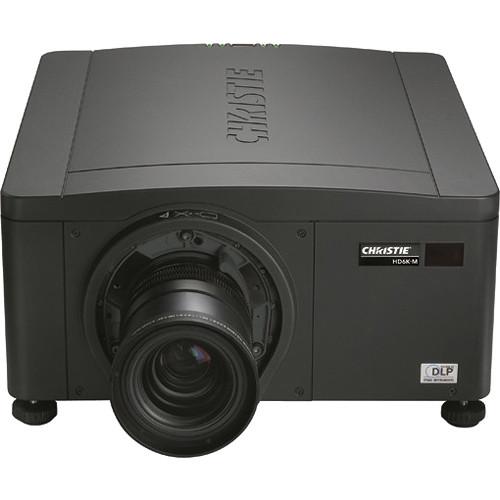

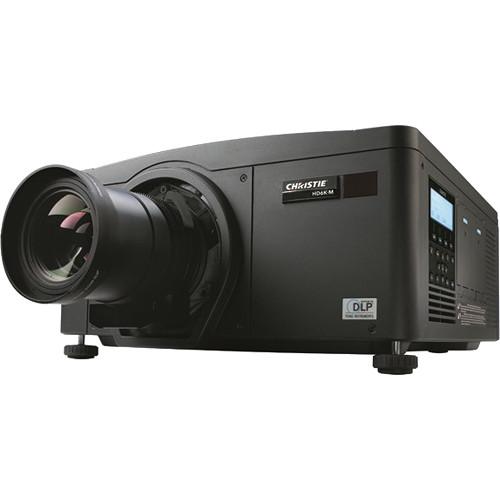

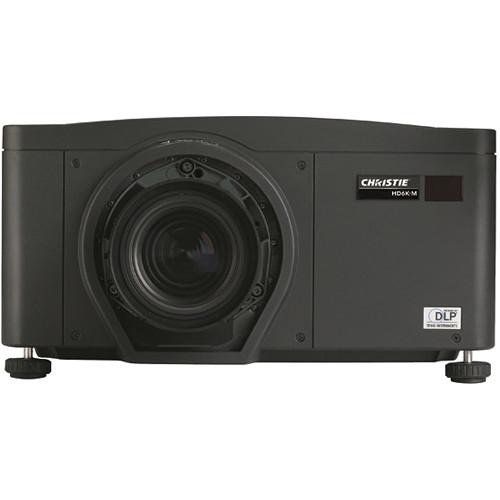

User Manual for Christie DS 6K-M SXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie DS 6K-M SXGA DLP Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie DS 6K-M SXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The DS+6K-M SXGA+ DLP Projector from Christie offers embedded warping, blending, and color matching. It features a dual lamp design, and when both lamps are in use, it provides 6930 center lumens for maximum brightness. There is an SXGA+ resolution of 1400 x 1050, and a contrast ratio of 650:1 ANSI. - Variable contrast ratio of 2500 to 10,000:1 (dynamic iris) / 650:1 ANSI for crisp, detailed images
- Embedded Christie Twist image warping and edge-blending
- Dust-sealed engine, filter-free design
- Intelligent Lens System (ILS) for zoom, focus, horizontal, and vertical offset
- Multiwindow and screen processing (up to 3x3 array)
- Built-in portrait display capabilities
- Accepts all current HDTV/DTV formats
- Multi-standard video decoder
- Horizontal and vertical scaling for all inputs
- Tool-free lens insertion system
- Scheimpflug (tilt) adjustment
- Comprehensive color adjustment
- Digital keystone correction
In the Box Christie DS+6K-M SXGA+ DLP Projector IR Remote Control Line Cord (Remote to Projector) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie DS 6K-M SXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie DS+6KM Specs | | | Display System | 3-Chip 0.95" DMD DLP | | Native Chip Resolution | 1400 x 1050 (SXGA+) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: QXGA - 2048 x 1536 | | Max Brightness | 6930 Lumens
3465 Lumens | | Uniformity | 90% | | Offset | 100% ± vertical
50% ± horizontal | | Contrast Ratio | 650:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 15 - 120 kHz
Vertical: 23.97 - 150 Hz | | | | Inputs/Outputs | 1 x RS-232C (Unspecified Connector) Control (Input/Output)
1 x RS-422 (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) Control
1 x Unspecified Signal (DE-9) Audio
1 x USB Service (Input)
1 x DVI Video
1 x 5BNC Video | | | | Light Source | Lamp (2 x OSRAM) | | Lamp Power | 200 W | | Expected Lamp Life | Full Brightness: 2000 Hours
Low Brightness: 3000 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 2971 BTU | | Power Consumption | Medium Brightness: 870 W | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 22.1 x 19.7 x 10.2" / 56.1 x 50.0 x 25.9 cm | | Weight | 55.00 lb / 24.95 kg |
