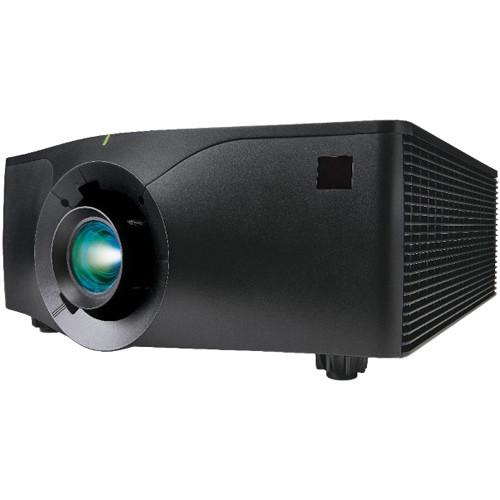

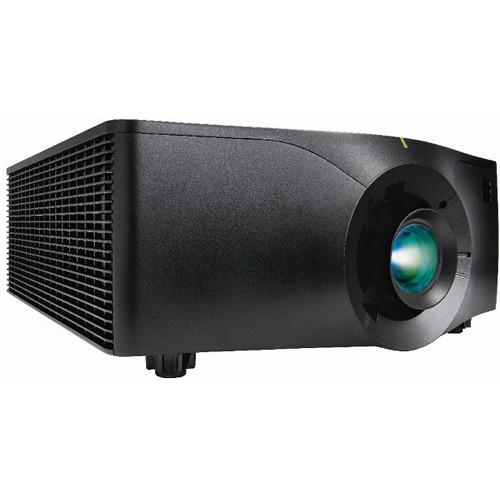

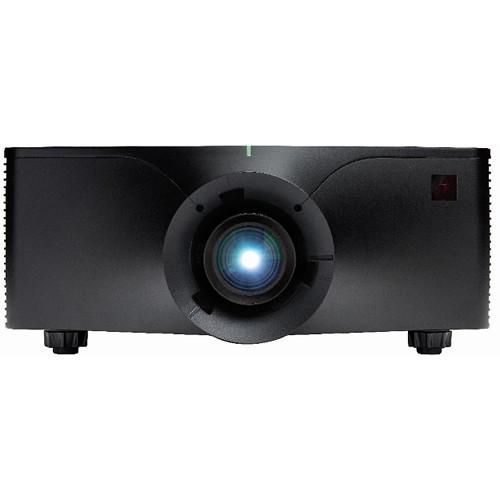

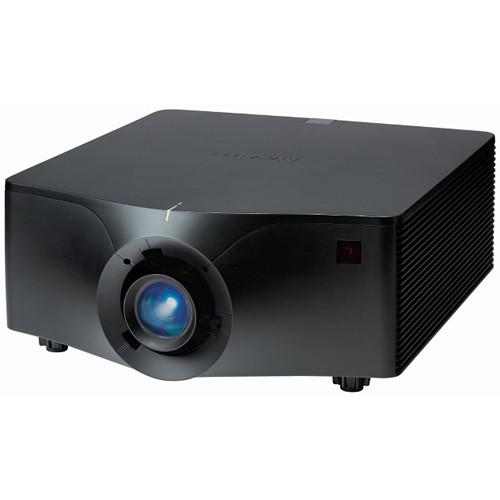

Product description The black DWU1075-GS 10,875-Lumen WUXGA 1DLP Laser Phosphor Projector from Christie features laser phosphor illumination that eliminates the need for lamp and filter replacements and provides up to 20,000 hours of Illumination life. It uses Christie BoldColor Technology for accurate color reproduction. It offers a maximum resolution of 1920 x 1200 with a brightness level of 10,875 lumens. In addition, the projector is suitable for use in live events, corporate, houses of worship and smaller location-based entertainment venues. Performance -
- Solid state laser phosphor illumination combined with Christie BoldColor Technology for accurate color reproduction
- Advanced processing
- 162 MHz pixel clock
- Built-in color matching, constant intensity, and advanced warping and blending
- Compact and lightweight for easy transportation and handling
- Capable of 360° rotation and functions in portrait mode

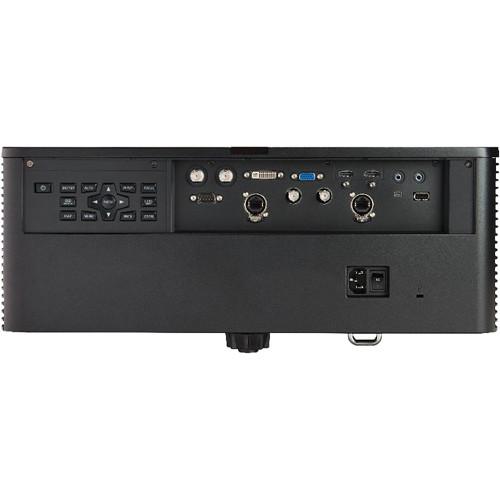

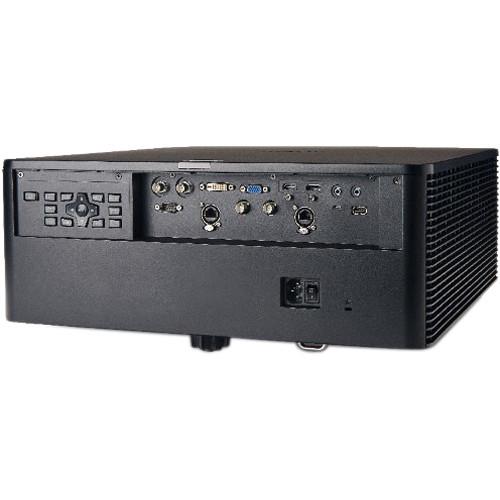

- DVI, two HDMI inputs, and one HDMI loop out
- Accepts analog inputs via an HD15 connection for fixed installs and live events
- Features a 3G-SDI loop through input for rental stagers
- Horizontal and vertical scaling while maintaining aspect ratio on all inputs
- Quiet operation
- Automated camera-based stacking, warping, and blending capability allows for quick setup
- Up to 20,000-hour life (with 50% brightness)
3D Inputs -
- HDMI 1.4, HDBaseT—frame packed, top/bottom, side by side
- Up to 120 Hz 3D output
- 3D Sync in (BNC) connector for genlocking projectors
- 3D Sync out (BNC) connector for genlocking projectors or controlling emitter or polarizer
Networking -
- RS-232 in
- Control via HDBaseT
- Ethernet (10/100) RJ45 connections are fully compatible with the rugged and lockable EtherCon
- Built-in backlit keypad
- Wired remote control (3.5mm stereo)
- Loop out available for daisy chaining
Lens Mount -
- Boresight adjustable
- Motorized horizontal and vertical lens offset
- Motorized zoom and focus adjustment
Regulatory -
- UL/CSA/IEC 60950-1
- FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO
- RoHS, REACH, and WEEE
In the Box Christie DWU1075-GS 10,875-Lumen WUXGA 1DLP Laser Phosphor Projector with BoldColor Technology (No Lens) IR Remote with Wired Remote Jack (Wire Available Separately) AC Line Cords for Projector Rear Input/Keypad Panel Cover Limited 3-Year Warranty Limited 3-Year or 15,000-Hour Warranty on Illumination System, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie DWU1075-GS 10,875-Lumen WUXGA 1DLP Laser Phosphor Projector with BoldColor Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie 140-041106-01 Specs | | | Display System | 1-Chip 0.67" DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA - 1920 x 1200 | | Max Brightness | White: 9500 Lumens
Color: 9500 Lumens ISO: 10,875 lumens and ANSI: 9500 lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 1200:1 With Christie RealBlack enabled and BoldColor Technology: 3,000,000:1
ANSI 250:1 | | Dynamic Contrast Ratio | 6000:1 | | Color Wheel | 4-Segment (R/G/B/Y) | | Scan | Horizontal: 15 to 9 kHz
Vertical: 24 to 85 Hz | | Lens | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 35 dB With typical 2x wheel speed
Eco2 Mode: 32 dBA | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A With 15 A fuse | | Power Consumption | Medium Brightness: 1070 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 19.9 x 22.2 x 7.6" / 50.5 x 56.4 x 19.3 cm | | Weight | 54.9 lb / 24.90 kg | | | | Package Weight | 71.45 lb | | Box Dimensions (LxWxH) | 30.0 x 23.8 x 14.8" |
