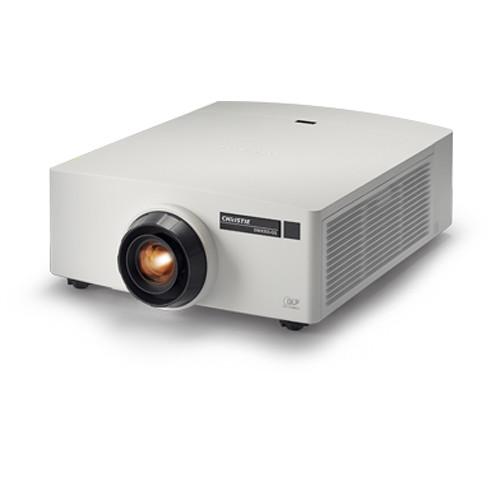

User Manual for Christie DWU555-GS 1DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie DWU555-GS 1DLP Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie DWU555-GS 1DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The white DWU555-GS 1DLP Projector from Christie offers built-in color matching for a uniform image in a multiple-projector configuration, with blending and warping capabilities for curved surfaces. It also features solid-state laser phosphor illumination, allowing for 20,000 hours of operation. There is a 1920 x 1200 WUXGA resolution with a brightness level of 5400 ANSI lumens. The projector contains a built-in backlit keyboard, motorized horizontal and vertical lens offset, motorized zoom and focus adjustment, and a tool-free lens insertion system. - 1DLP Technology for maximum image quality and reliability
- Solid state laser phosphor illumination for 20,000-hour operation
- Blending and warping capabilities
- Ethernet with ChristieNET connectivity
- Compatible with Creston Connected and AMX Discovery
- Tool-free lens insertion system
- Motorized horizontal and vertical lens offset
- Motorized zoom and focus adjustment
In the Box Christie DWU555-GS 1DLP Projector (White) Power Cord IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie DWU555-GS 1DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie DWU555GS Specs | | | Display System | 1-Chip 0.67" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5400 Lumens | | Offset | 100% ± vertical
30% ± horizontal | | Contrast Ratio | 250:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 85 kHz | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x DVI-D Video (Input)
1 x DisplayPort Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Component (3RCA) Video (Input)
1 x USB Type-A Female (Input)
1 x Mini-USB Type-B Female (Input)
1 x Ethernet (RJ45) Control (Input)
1 x VGA (DE-15) Video (Output) | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 34 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1774 BTU
1160 BTU | | Power Consumption | Full Brightness: 520 W
Low Brightness: 340 W | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 0 - 90% | | Dimensions (W x H x D) | 19.9 x 18.3 x 7.5" / 50.5 x 46.5 x 19.1 cm | | Weight | 35.00 lb / 15.88 kg |
