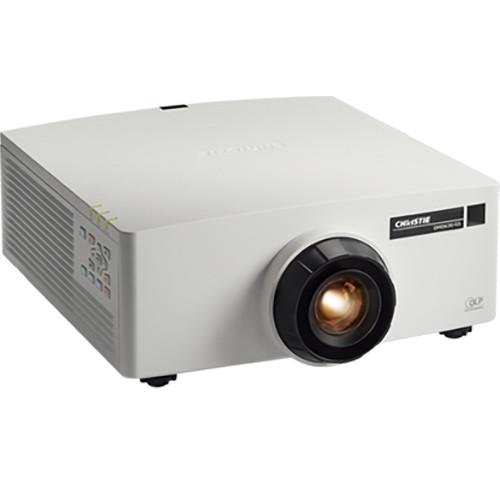

User Manual for Christie DWU635-GS 6000-Lumen WUXGA Laser Projector Click to enlarge the picture
Contents of the user manual for the Christie DWU635-GS 6000-Lumen WUXGA Laser Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie DWU635-GS 6000-Lumen WUXGA Laser Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The DWU635-GS WUXGA 6750 ISO Lumens Laser Projector from Christie uses a single 0.67" DLP DMD S600HB chip to produce images when combined with a compatible lens (available separately). It supports a resolution of 1920 x 1200 and an aspect ratio of 16:10. This projector has a brightness of 6750 ISO, 6000 center, and 6000 ANSI lumens. There are two HDMI, a DVI-D, and a VGA video input, as well as an HDBaseT input. An IR remote control with jack is included. - Compatible Lenses
- Lens 0.75-0.95 Zoom G/GS
Lens 0.95-1.22 Zoom G/GS
Lens Zm Std G/599-GS 1.22-1.53 (lowest cost for G/555/599/630/635-GS)
Lens Zoom HP G/GS 1.22-1.52 (all G and GS)
Lens 1.52-2.89 Zoom G/GS
Lens 2.9-5.50:1 Zoom G/GS
Lens UST 0.36 (120"), Ultra short throw lens, 630/635/700/850/1075-GS Other Features - Boresight adjustable lens mount
- Motorized horizontal and vertical lens offset (lens sold separately)
- Motorized zoom and focus adjustment (lens sold separately)
- Built-in warping, blending, and color matching
- RealBlack technology produces 4,000,000:1 full on/off contrast ratio
In the Box Christie DWU635-GS 6000-Lumen WUXGA Laser Projector (No Lens) IR Remote with Jack AC Power Cord Limited 3-Year Warranty on Parts & Labor Limited 3-Year 15,000 Hours Warranty on Illumination System Guides & Manuals rqwycfeduxezuwacrcfcvwssq Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie DWU635-GS 6000-Lumen WUXGA Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Christie DWU635-GS 6000-Lumen WUXGA Laser Projector can be downloaded in PDF format at the link stated below.
Technical parametersChristie DWU635-GS Specs | | | Display System | 1-Chip 0.67" DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 6750 Lumens | | Offset | 100% ± 100% vertical
30% ± 30% horizontal | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 250:1 ANSI: 250:1
Full On/Off (Christie Real Black Enabled): 4,000,000:1
Dynamic Contrast: 6000:1
Full On/Off (Christie Real Black Disabled): 1200:1 | | Dynamic Contrast Ratio | 4,000,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing
Side by Side
Top Bottom | | Color Wheel | 4-Segment (R/G/B/Y) | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 120 Hz | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x DVI-D Video Input
1 x VGA (DE-15) Video Input
1 x 1/8" / 3.5 mm Mini Remote Input
1 x HDBaseT (RJ45) Audio, Control, Video
1 x VGA (DE-15) Video Output
1 x RJ45 Control
1 x RS-232 (DE-9) Control Input
1 x VESA 3D Sync (RCA) Control Output
1 x VESA 3D Sync (RCA) Control Input | | | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 34 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 9.5 A | | Power Consumption | Medium Brightness: 650 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 19.9 x 18.0 x 7.6" / 505.5 x 457.2 x 193.0 mm | | Weight | 34.94 lb / 15.85 kg |
