User Manual for Christie FHD553-XE 110" 2x2 LCD Video Wall Bundle Click to enlarge the picture
Contents of the user manual for the Christie FHD553-XE 110" 2x2 LCD Video
- Product category: Commercial Monitors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Commercial Monitors
 |
User manual for the Christie FHD553-XE 110" 2x2 LCD Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|

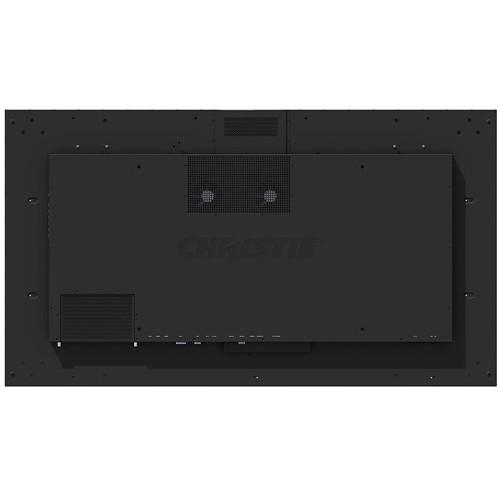

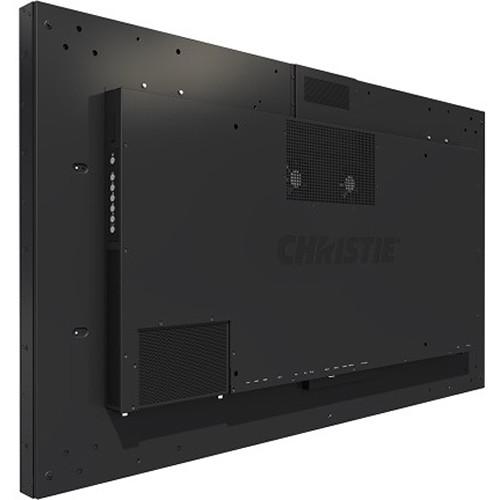

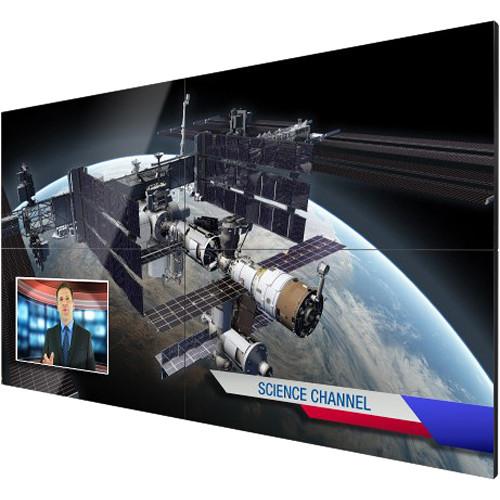

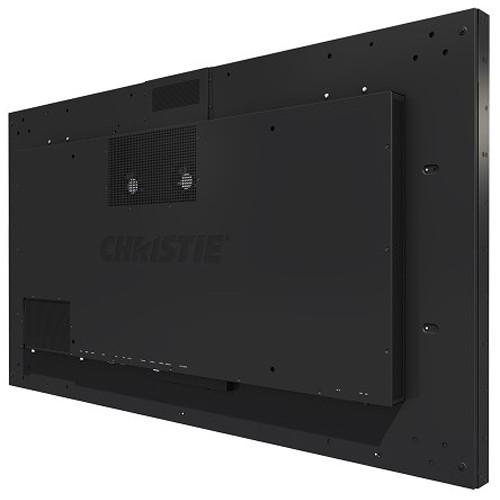

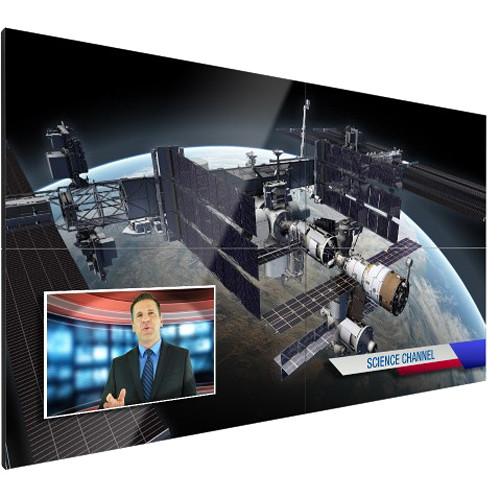

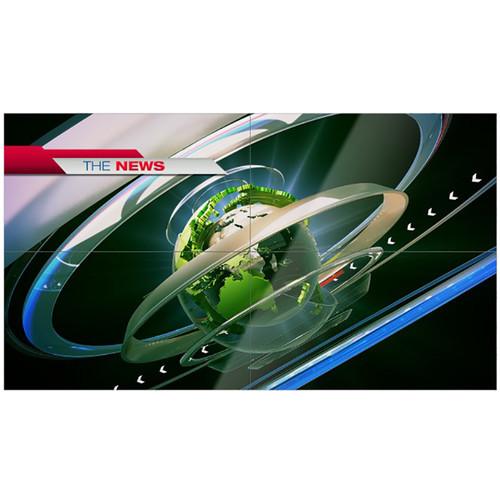

Product description The Christie 2x2 LCD Video Wall Bundle includes four Extreme Series FHD553-XE 55" LCD panels, four MPL15 wall mounts, four DisplayPort male to DisplayPort male cables, and four 4.9' Ethernet cables. Each LCD panel incorporates narrow 1.7mm combined bezel width and is used to create seamless video walls. The brightness and color of each panel comes calibrated, eliminating much of the image adjustments typically required when installing video walls. The Smart Light Control feature can automatically adjust the brightness of the panel for uniformity across the entire video wall. The MPL15 wall mount accommodates the tiled LCD panels in portrait and landscape orientation. The modular mount system features a pull-out mechanism that provides rear-screen access, and the ability to adjust the X, Y, and Z axis alignment, and is designed for home and public use. - FHD553-XE LCD Panel
-
- Commercial-grade LCD with LED backlight
- Standard size OPS
- Supports Christie Phoenix EP
- Built-in processing supports video walls up to 10x10
- Multi-stream transport supported across up to four panels (UHD at 60 fps)
- Anti-glare coating
- Fast-motion compensation (anti-tearing)
- SNMP for monitoring
- Remote and button lock
- Pixel Orbiting (IRFM)
- Bezel compensation
- Kensington lock
- Advanced panel matching
- MPL15 Wall Mount
-
- Modular mount to hang and adjust the flat panels
- Spring-loaded mechanisms secure displays
- Pop-out mechanism provides quick service access
In the Box Christie FHD553-XE 110" 2x2 LCD Video Wall Bundle 4 x Extreme-Narrow Bezel LCD Panel 4 x MPL15 LCD Video Wall Mount for 46 to 60" LCD Panel 4 x 4.9' Ethernet Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie FHD553-XE 110" 2x2 LCD Video Wall Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie FHD553-XE Specs | | | Screen Size (Diagonal) | 55" | | Native Resolution | 1920 x 1080 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% CIE1931 | | Brightness | 500 cd/m
