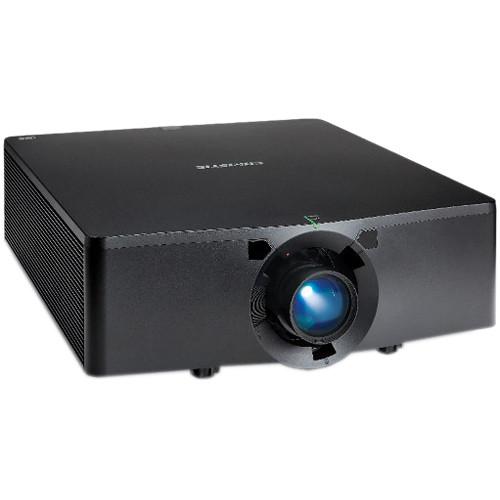

User Manual for Christie HS Series D13WU-HS 12,500-Lumen 1DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie HS Series D13WU-HS 12,500-Lumen 1DLP
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie HS Series D13WU-HS 12,500-Lumen 1DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The HS Series D13WU-HS 1DLP Projector from Christie is a 1DLP laser phosphor projector boasting 12,500 center lumens in WUXGA resolution, with Christie BoldColor technology. Christie BoldColor technology offers bold and realistic images at high brightness levels, resulting in richer visual content that meets the Rec. 709 standard for high-definition color reproduction. -
- Quick, easy warping and blending
- 24/7 stable and consistent performance
- Easy to handle and install with a lightweight, compact design
- Loop-through capability
In the Box Christie HS Series D13WU-HS 12,500-Lumen 1DLP Projector (No Lens) Limited 3-Year Warranty Limited 3-Year Warranty or 15,000-Hour on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie HS Series D13WU-HS 12,500-Lumen 1DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

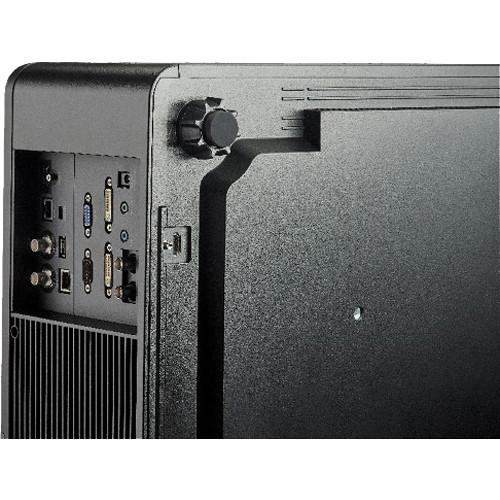

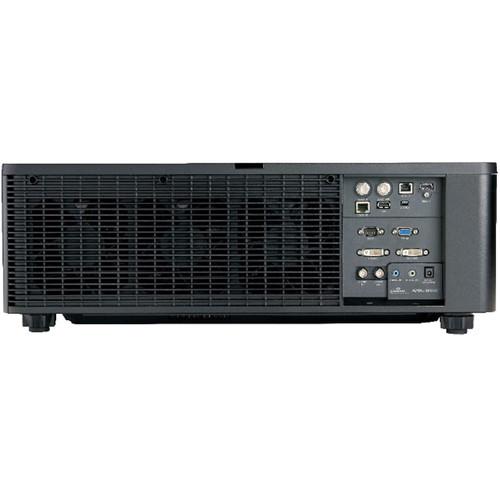

Technical parametersChristie D12WUHS Specs | | | Display System | 1-Chip 0.96" DMD DLP | | Native Chip Resolution | 1920 x 1200 | | Max Brightness | 12,500 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 1200:1 750,000:1 with Christie RealBlack enabled. | | Dynamic Contrast Ratio | 7500:1 | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 85 Hz | | | | Inputs/Outputs | 1 x DVI-D Video
1 x 3G-SDI (BNC) Video
1 x RS-232C (Unspecified Connector) Control
1 x HDBaseT (RJ45) Control
1 x 1/8" (3.5 mm) Mini Audio
2 x HDMI Audio/Video
1 x VGA (DE-15) Video
1 x USB Type-B Female
1 x USB Type-A Female | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 37 dB | | Heat Dissipation | 4435 BTU
3580 BTU
2390 BTU | | Power Consumption | Medium Brightness: 1220 W
Low Brightness: 1000 W | | Temperature | Operating
320 to 104°F (160 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 26.6 x 23.4 x 7.9" / 67.6 x 59.4 x 20.1 cm | | Weight | 93.7 lb / 42.5 kg without lens | | | | Package Weight | 127.0 lb | | Box Dimensions (LxWxH) | 36.2 x 33.5 x 20.0" |
