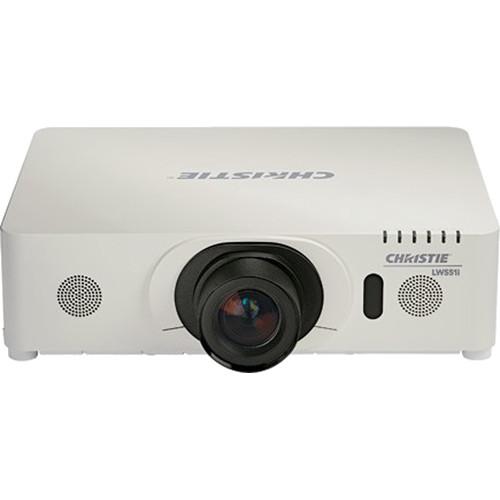

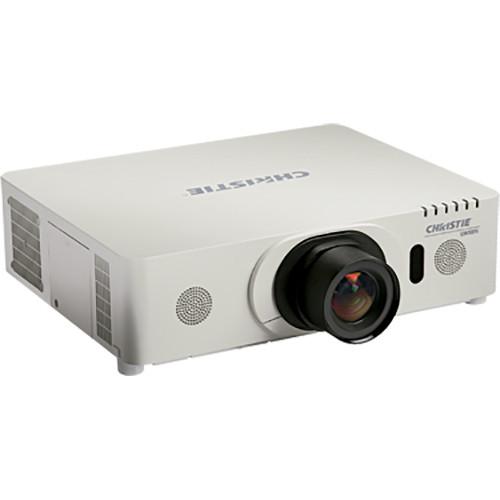

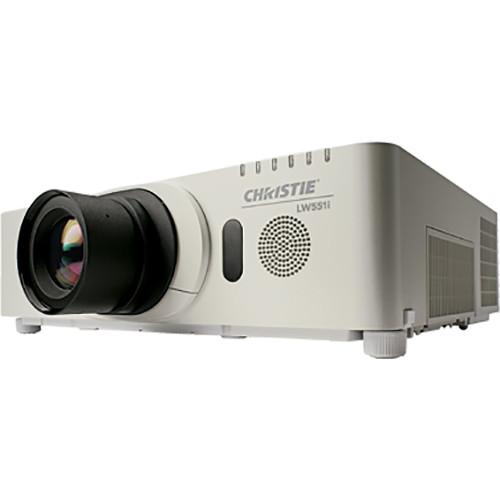

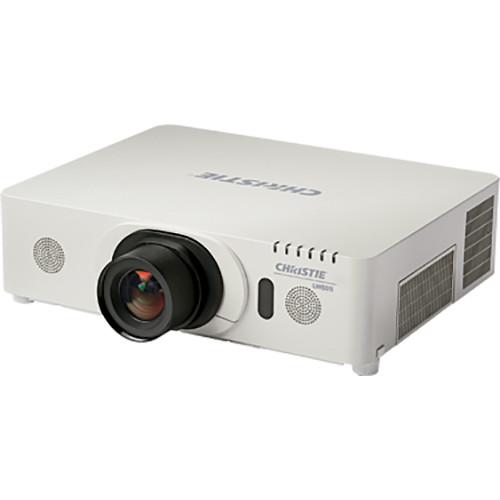

User Manual for Christie LW551i 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Christie LW551i 3LCD Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie LW551i 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The LW551i 3LCD Projector from Christie is great for small to medium-sized applications. It has a text message function for displaying emergency or evacuation messages as an overlay on the screen. This 3LCD projector is low maintenance, with features such as long-lasting lamps and low-power standby operation.
The projector is equipped with AMX Device Discovery and Crestron's RoomView for easy integration with third-party control systems. The AMX system improves the way AV installations are programmed, managed, and operated, which makes programming and operation with an AMX control system easy. Crestron RoomView software provides a custom-configurable interface for remotely monitoring, managing, and controlling every device in every room from any computer. RoomView automates and streamlines several management and technical support functions, so you can work more efficiently. - WXGA (1280 x 800) native resolution
- Intuitive LCD menu for easy setup and maintenance
- Built-in security features that limit access to projector controls and menus
- Can be used at high altitudes
- 360-degree on-axis rotation
- Hybrid filter for up to 20,000 hours maintenance-free
- Customizable start-up logo
- Selectable aspect ratio 16:9 and true mode
- Intuitive graphical user interface (GUI)
- Graphical on-screen lens range
- LCD menu for easy setup and maintenance
- Front and rear infrared sensors for IR keypad
- Supports simple curved screens
- Stackable design for redundancy or added brightness
- Repeatable lens recall capabilities
In the Box Christie LW551i 3LCD Projector 5.9' US Power Cord 5.9' UK Power Cord 5.9' Euro Power Cord 6.6' Computer Cable 1.3' HDMI-DVI Cable Wireless Remote Control with Batteries Security Label Lens Cover Adapter Cover Cable Holder Limited 3-Year Warranty on Projector Limited 1-Year or 500-Hour Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie LW551i 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie LW551i Specs | | | Display System | 3-Chip 0.76" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 5500 Lumens | | Aspect Ratio | 16:9 | | Contrast Ratio | 3000:1 | | Scan | Horizontal: 15 to 106 kHz
Vertical: 56 to 120 Hz | | | | Keystone Correction | Horizontal: ± 20°

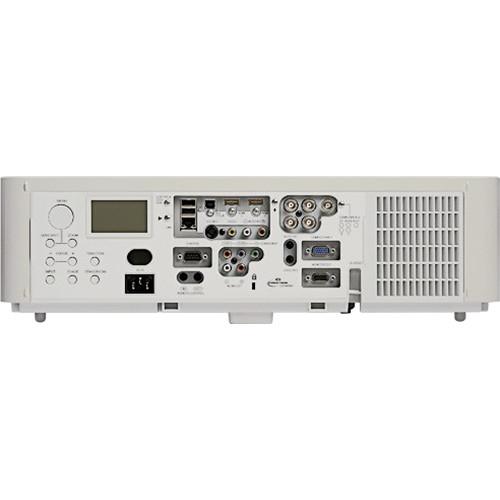

Vertical: ± 12° | | Picture-in-Picture | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
2 x HDMI Audio/Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
3 x Component (3RCA) Video (Input)
2 x USB Type-A Female (Input)
1 x USB Type-B Female (Input)
1 x 1/8" (3.5 mm) Mini Control (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x RCA Stereo (L/R) Audio (Output)
1 x Ethernet (RJ45) LAN (Output)
1 x Unspecified Signal (DE-9) Control (Input/Output) | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 330 W | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 29 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1683 BTU (AC 100 to 120V)
1553 BTU (AC 220 to 240V) | | Power Consumption | Medium Brightness: 480 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 18.7 x 19.6 x 5.8" / 475.0 x 497.8 x 147.3 mm With Standard Lens | | Weight | 19.6 lb / 8.9 kg With Standard Lens |
