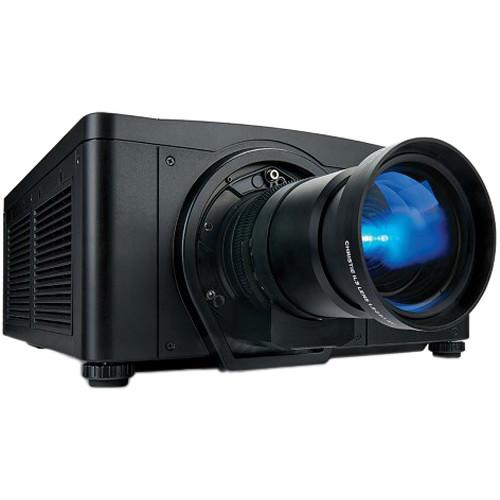

User Manual for Christie M Series DS 14K-M SXGA 3DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie M Series DS 14K-M SXGA
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie M Series DS 14K-M SXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The M Series DS+14K-M SXGA+ 3DLP Projector from Christie offers embedded warping, blending, and color matching. It features a dual lamp design, and when using both lamps provides 14,000 center lumens for maximum brightness. DS+14K-M supports maximum resolution of 1400 x 1050, and a contrast ratio of 2500:1. - Intelligent Lens System (ILS)
- The ILS automatically recognizes and calibrates a lens when it is installed. Stepper motor-based encoding ensures that motor drift does not occur, as typically found with DC encoded motors, providing accurate and repeatable recall of all lens offset, zoom and focus positions. This lens system ensures that the images adjust to optimize screen coverage and maintain alignment in applications with moving screens or variable aspect ratios.
- Multi-Window / Screen Processing
- External processors are not required for simple, small tiled, and blended arrays. This reduces TCO. Each M Series projector has the ability to send signals to multiple projectors (up to a 3x3 array) without any additional hardware or software. The projectors in the tiled array can then show only the portion of the signal that they need to project.
- Embedded Christie Twist
- Christie Twist enables seamless edge-blending of multiple curved images faster and easier than traditional, manual methods. Controlled by an intuitive GUI, users can control and edgeblend or stack multiple curved images. Images can also be warped to fit virtually any dimension or shape display. Embedded Christie Twist ensures that all M Series projectors work with optional accessories such as Christie AutoStack and AutoStack Premium, camera-based software used to easily and accurately align content across a projection array in minutes.
- Embedded Edge Blending and Color Matching
- Advanced blending capabilities and Comprehensive Color Adjustment (CCA) ensure digitally accurate color matching and uniformity across multi-screen blended or tiled images.
- LiteLOC
- The LiteLOC feature automatically manages your display's brightness levels over time so that you can match the brightness of a multiple projector system in tiled or blended arrays. This feedback system continuously monitors lamp brightness, so that as the lamp goes through its natural brightness decay, the system increases the lamp power in order to maintain consistent brightness.
- Projector Control and Management
- Users can access all projector menus and control through a web interface (via Ethernet) without disrupting the live presentation. This allows for real-time adjustments and monitoring of each projector on the network, regardless of geographic location.
- Other Features
-
- Auto setup
- Dust sealed, 3-chip DMD light engine
- Motorized horizontal and vertical lens offset
- Scheimpflug (tilt) adjustment
- Built-in light shutter
- Tool-free lens insertion system
- Digital keystone correction
- Contrast aperture
- Menus in five languages
- 99-channel memory
- Black level blending
- Built-in portrait display capabilities
- 3D upgradable
1 Please Note: Christie M Series stacking frame is required in portrait orientation. close In the Box Christie M Series DS+14K-M SXGA+ 3DLP Projector (No Lens) IR Remote Line Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie M Series DS 14K-M SXGA 3DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie DS+14K-M Specs | | | Display System | 3-Chip 0.95" DMD DLP | | Native Chip Resolution | 1400 x 1050 (SXGA+) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: QXGA - 2048 x 1536 | | Max Brightness | 14,000 Lumens 7000 lumens when single lamp is used. | | Uniformity | 90% | | Offset | 100% ± vertical
50% ± horizontal | | Contrast Ratio | 650:1 | | Dynamic Contrast Ratio | 2500:1 | | Scan | Horizontal: 15 to 120 kHz

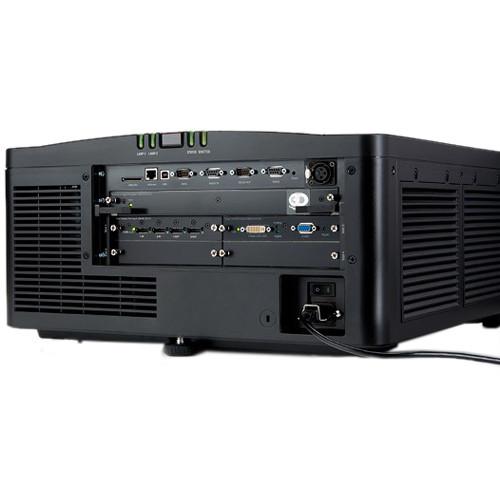

Vertical: 23.97 to 150 Hz | | | | Inputs/Outputs | 1 x 5BNC Video
1 x DVI Video
1 x RS-232C (Unspecified Connector) Control
1 x RS-422 (Unspecified Connector) Control
1 x Ethernet (RJ45) LAN
1 x USB Control | | | | Lamp Power | 450 W | | Expected Lamp Life | Full Brightness: 1250 Hours
Low Brightness: 1500 Hours | | Heat Dissipation | 5118 BTU | | Power Consumption | Medium Brightness: 1500 W | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 22.1 x 19.7 x 10.2" / 56.1 x 50.0 x 25.9 cm | | Weight | 55.00 lb / 24.95 kg without lens |
