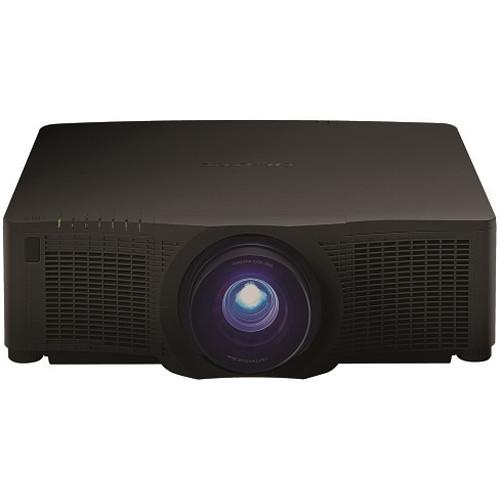

User Manual for Christie Q Series DHD1052-Q 9,500-Lumen Dual-Lamp 1DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie Q Series DHD1052-Q 9,500-Lumen Dual-Lamp
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
|
User manual for the Christie Q Series DHD1052-Q 9,500-Lumen Dual-Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The Q Series DHD1052-Q Dual-Lamp Projector from Christie features a high contrast ratio of 2500:1. High Dynamic Contrast Range (HDCR) improves visual contrast to avoid giving content a washed-out effect in environments with a lot of ambient light. HDCR adjusts the dynamic contrast level to help recapture detail lost by excess ambient light on the screen.Motion-adaptive de-interlace delivers improved viewing of video content and fast-moving motion graphics. On-image display of gamma and color balance equalization allows you to manipulate your image configuration in real time. The projector features a built-in LCD that gives you real-time diagnostic information, assisting in network setup or helping with troubleshooting.DHD1052-Q supports HDBaseT connectivity. HDBaseT simplifies installation and management by allowing for video content, audio, and control to be delivered over low-cost CAT5/6e cabling to HDBaseT-compatible products. - eClarity
- Christie eClarity advanced image processing enhances your content by improving sharpness, gloss, and shading. It is suitable for making non-high-definition content look like HD. You can use eClarity to improve your standard and HD content for better, true-to-life image reproduction.
- Built-In Dual Color Wheel
- A set of two color wheels are built into the projector and can be selected at a touch of a button. The built-in color wheels allow for easy switching between high-brightness or ultra-rich color reproduction mode, suitable for your presentation needs. In large venues, the high brightness color wheel gives you maximum output and superior white levels. The ultra-rich color wheel expands the color gamut for incredible reproduction that rivals cinema color standards.
- Blending and Warping Capabilities
- Blending and warping are easy with Christie Q series software and the use of off-the-shelf, standard cameras (not included). The software and camera option allows for quick and easy edge-blending capabilities. You can also use the software to set up multiple projectors for warping images (advanced geometry correction) or for multi-projector blending, to create large, panoramic, seamless displays.
- Portrait Mode and 360° Projection
- The projector can be used in portrait orientation using existing lamps, reducing your setup time and minimizing extra costs for special lamps. They can also be installed in a 360° configuration.
- Broad Range of Lens Options
- Christie's ultra-short throw lens allows you to install projectors as close as necessary to your projected image without compromising display size. Multiple screens, or creative projection on multiple areas, are not a problem with up to three memory settings for lens shift, zoom, and focus recalls.
- Enhanced Lamp Options
- Dual-lamp design lets you maximize brightness or extend lamp life. Lamps can be used in relay, eco, auto-backup, and balance mode. Lamp life is up to 2000 hours for standard mode, up to 4000 hours for eco 2-lamp, and up to 8000 hours in optional lamp relay modes. The lamps are designed to be swapped out without shutting down the projector.
- Digital Imaging and Communication in Medical (DICOM) Simulation
- DICOM simulation mode provides enhanced grayscale levels for medical training applications requiring adhearance to DICOM Part 14: Grayscale Standard Display specifications. 1
Please Note: Simulation mode is for training purposes only, not for medical diagnostics of actual patients. close - Wireless Presentation and Projector Control
- Using Christie Q series projectors and the Christie QuickConnect app, you can project photos, documents, and websites over Wi-Fi, from iOS or Android devices.
In the Box Christie Q Series DHD1052-Q 9,500-Lumen Dual-Lamp 1DLP Projector (No Lens) Power Cord RGB Cable Adapter Cover Wireless Remote Control with Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie Q Series DHD1052-Q 9,500-Lumen Dual-Lamp 1DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie DHD1052Q Specs | | | Display System | 1-Chip 0.95" DMD DLP | | Native Chip Resolution | 1920 x 1080 | | Max Brightness | 9500 Lumens | | Aspect Ratio | 16:9 | | Contrast Ratio | 2500:1 | | | | Inputs/Outputs | 2 x HDMI Audio/Video
1 x 3G-SDI (BNC) Video
1 x DVI-D Video
1 x VGA (DE-15) Video
1 x Composite (BNC) Video
1 x USB Type-A Female
1 x HDBaseT (RJ45) Control
1 x RS-232C (Unspecified Connector) Control | | | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 4000 Hours 1000 hours typical in Portrait Normal mode. | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 33 dB | | Heat Dissipation | 3720 BTU (AC 110 to 120V)
3652 BTU (AC 220 to 240V) | | Power Consumption | Medium Brightness: 1070 W 1090 W @ 110 VAC. | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 18.2 x 21.1 x 6.9" / 46.2 x 53.6 x 17.5 cm | | Weight | 38.6 lb / 17.5 kg | | | | Package Weight | 49.5 lb | | Box Dimensions (LxWxH) | 28.5 x 22.0 x 12.5" |
