Christie Roadster HD20K-J 3DLP Projector with

Search your instruction manual in PDF to download

User Manual for Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount

Click to enlarge the picture
Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount Contents of the user manual for the Christie Roadster HD20K-J 3DLP Projector with
  • Product category: Multimedia Projectors Christie
  • Brand: Christie
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Christie Multimedia Projectors

Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount
User manual for the Christie Roadster HD20K-J 3DLP Projector with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Christie product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!



Product description

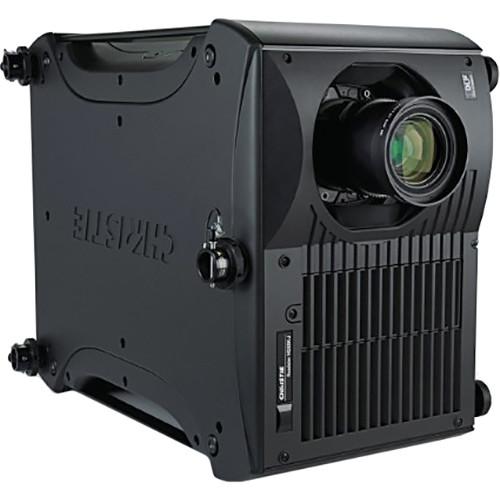

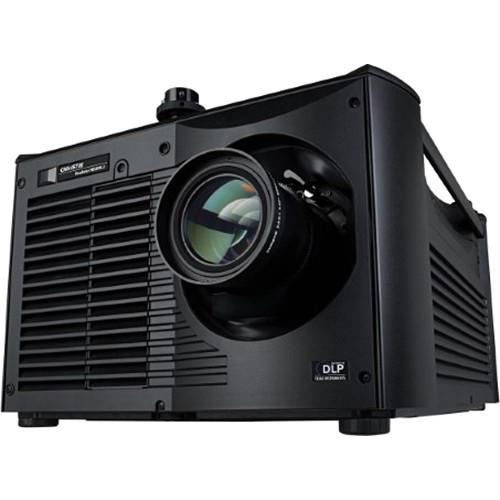

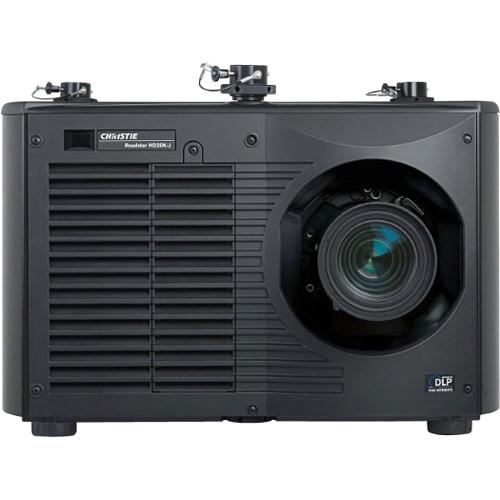

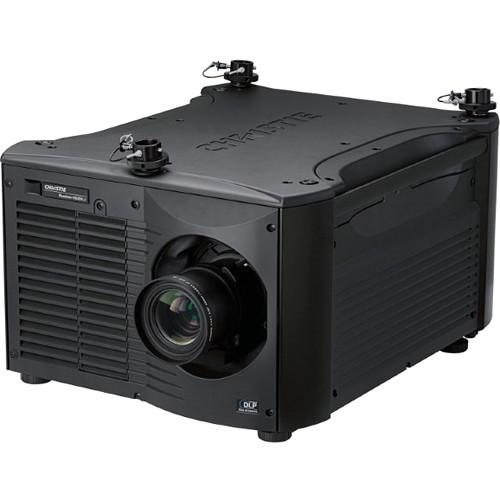

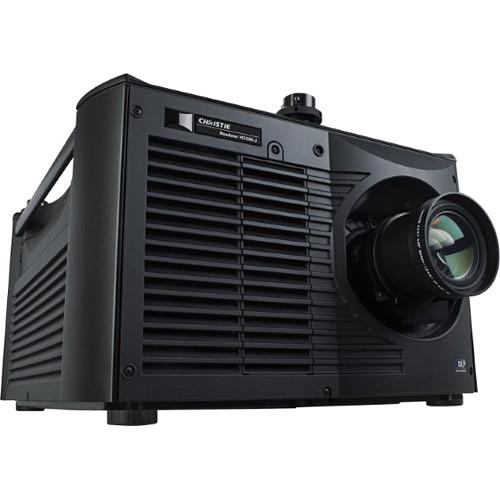

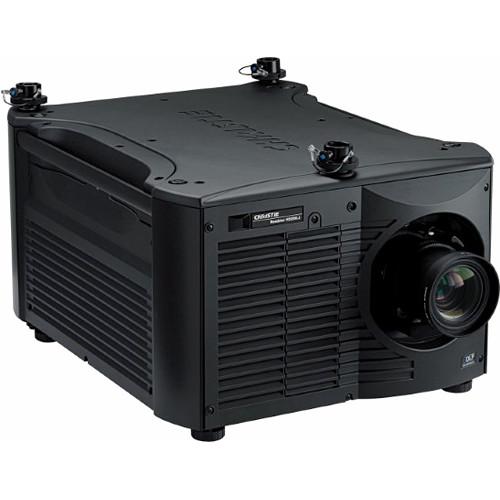

The Roadster HD20K-J 3DLP Projector with ILS Lens Mount from Christie is a 3DLP projector that is great for large venues. This projector features Xenon illumination for natural color accuracy and stability, offering a high brightness of 20,000 center lumens, with Christie Twist technology and 3D upgradability.
  • Full HD 1920 x 1080 resolution
  • 20,000 Center lumens
  • Embedded Christie Twist for image warping and edge blending
  • Variable contrast ratio of 1600-2000:1 full field and 650:1 ANSI
  • 3.0 kWh Xenon bubble lamp module
  • Comprehensive Color Adjustment (CCA)
  • Dust-sealed engine
  • Intelligent Lens System (ILS) for zoom, focus, horizontal, and vertical offset
  • Multi-windowing and screen processing (up to a 3x3 array)
  • Setup lights help users see menu displays in low-light environments
  • Hybrid stacking
  • User-replaceable lamps
  • Built-in portrait capabilities
  • Liquid cooling allows for operating temperatures up to 104°F
  • 3D Upgradable
  • Embedded image tiling
  • Advanced block artifact reduction
  • ChristieNET web interface
  • User-friendly, intuitive LCD keypad
  • Advanced Loop-Thru twin HDMI card
  • Lamp memory module
  • Automatic shut-off and Eco mode
  • SNMP (Simple Network Management Protocol)
  • DHCP (Dynamic Host Configuration Protocol)
In the Box Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount (No Lens)
  • ILS Lens Mount
  • IR Remote
  • Line Cord
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Christie HD20KJ Specs

    Display System 3-Chip 0.95" DLP
    Native Chip Resolution 1920 x 1080 (Full HD)
    Supported Resolutions Maximum: QXGA - 2048 x 1536
    Max Brightness 20,000 Lumens
    Uniformity 80%
    Offset 120% ± vertical
    42% ± horizontal
    Contrast Ratio 2000:1
    Dynamic Contrast Ratio 650:1
    Scan Horizontal: 15 to 120 kHz
    Vertical: 23.97 to 150 Hz

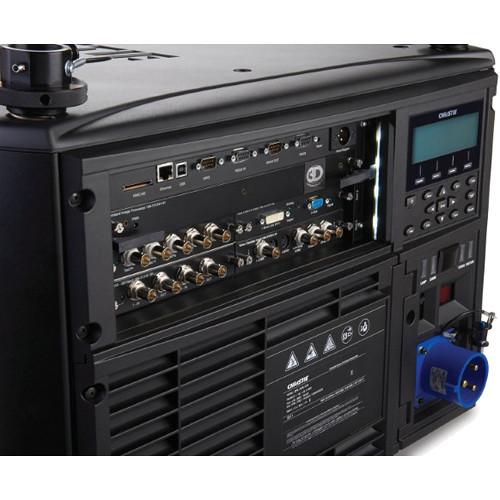

    Inputs/Outputs 1 x VGA (DE-15) Video (Input)
    1 x DVI Video (Input)
    1 x HD-SDI (BNC) Video (Input)
    1 x SDI (BNC) Video (Input)
    1 x Ethernet (RJ45) Control (Input)
    1 x RS-232C (Unspecified Connector) Control (Input/Output)
    1 x RS-422 (Unspecified Connector) Control (Input)
    1 x USB Control (Input)
    1 x XLR Control (Input)
    Light Source Lamp (1 x Xenon)
    Lamp Power 3000 W
    Expected Lamp Life Medium Brightness: 750 Hours
    AC Input Power 240 VAC, 50 Hz
    Heat Dissipation 13650 BTU
    Power Consumption Full Brightness: 4000 W
    Temperature Operating
    40 to 104°F (4 to 40°C)
    Humidity: 20 - 80%
    Dimensions (W x H x D) 32.0 x 24.5 x 16.5" / 812.8 x 622.3 x 419.1 mm
    Weight 160.00 lb / 72.574 kg Without Lens
