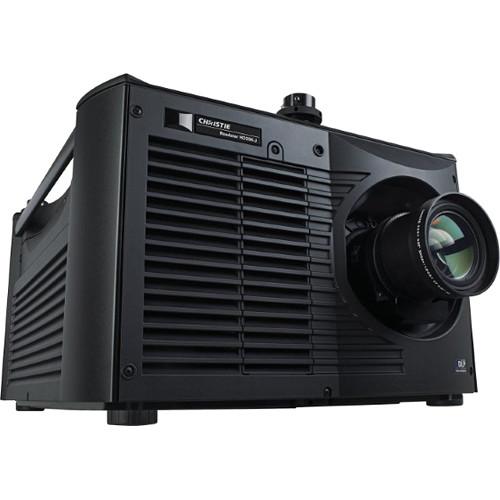

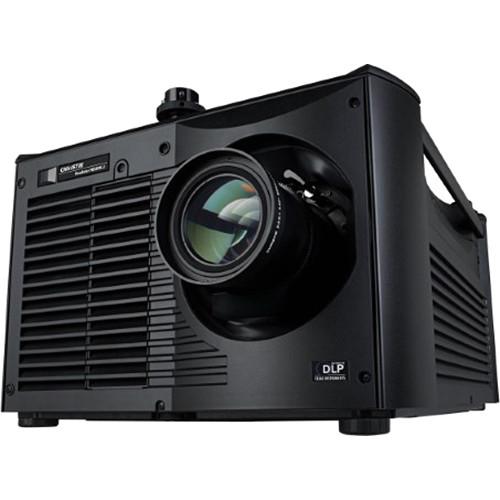

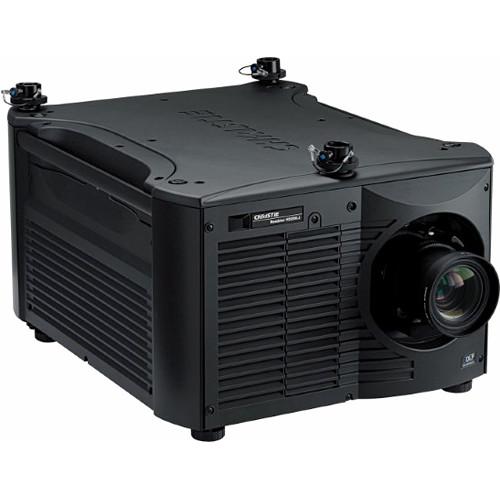

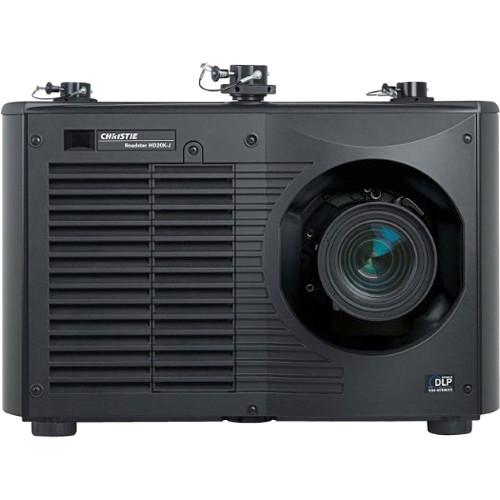

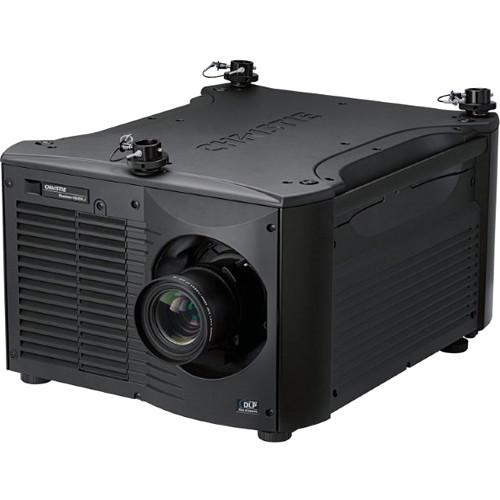

Product description The Roadster HD20K-J 3DLP Projector with ILS Lens Mount and YNF from Christie is a 3DLP projector that is great for large venues. This projector features Xenon illumination for natural color accuracy and stability, offering a high brightness of 20,000 center lumens, with Christie Twist technology and 3D upgradability. - Full HD 1920 x 1080 resolution
- Embedded Christie Twist for image warping and edge blending
- Variable contrast ratio of 1600-2000:1 full field and 650:1 ANSI
- 3.0 kWh Xenon bubble lamp module
- Comprehensive Color Adjustment (CCA)
- Intelligent Lens System (ILS) for zoom, focus, horizontal, and vertical offset
- Multi-windowing and screen processing (up to a 3x3 array)
- Setup lights help users see menu displays in low-light environments

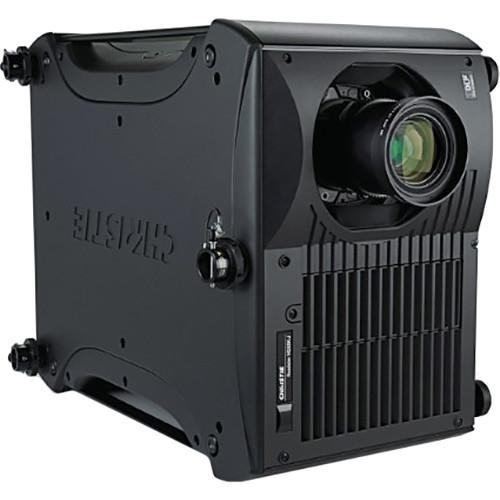

- Built-in portrait capabilities
- Liquid cooling allows for operating temperatures up to 104°F
- Advanced block artifact reduction
- ChristieNET web interface
- User-friendly, intuitive LCD keypad
- Advanced Loop-Thru twin HDMI card
- Automatic shut-off and Eco mode
- SNMP (Simple Network Management Protocol)
- DHCP (Dynamic Host Configuration Protocol)
In the Box Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount and YNF (No Lens) ILS Lens Mount and YNF IR Remote Line Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie Roadster HD20K-J 3DLP Projector with ILS Lens Mount and YNF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie HD20KJ Specs | | | Display System | 3-Chip 0.95" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: QXGA - 2048 x 1536 | | Max Brightness | 20,000 Lumens | | Uniformity | 80% | | Offset | 120% ± vertical
42% ± horizontal | | Contrast Ratio | 2000:1 | | Dynamic Contrast Ratio | 650:1 | | Scan | Horizontal: 15 to 120 kHz

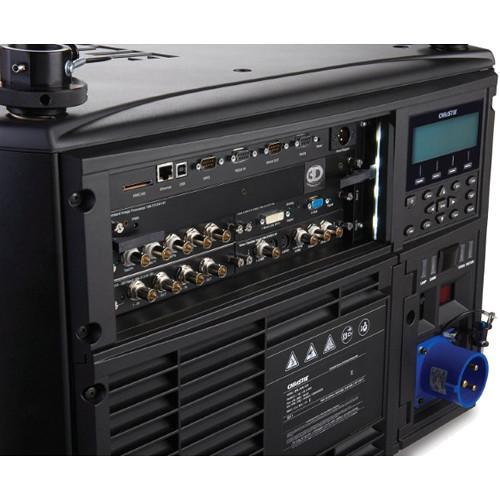

Vertical: 23.97 to 150 Hz | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x DVI Video (Input)
1 x HD-SDI (BNC) Video (Input)
1 x SDI (BNC) Video (Input)
1 x Ethernet (RJ45) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input/Output)
1 x RS-422 (Unspecified Connector) Control (Input)
1 x USB Control (Input)
1 x XLR Control (Input) | | | | Light Source | Lamp (1 x Xenon) | | Lamp Power | 3000 W | | Expected Lamp Life | Medium Brightness: 750 Hours | | AC Input Power | 240 VAC, 50 Hz | | Heat Dissipation | 13650 BTU | | Power Consumption | Full Brightness: 4000 W | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 32.0 x 24.5 x 16.5" / 812.8 x 622.3 x 419.1 mm | | Weight | 160.00 lb / 72.574 kg Without Lens |
