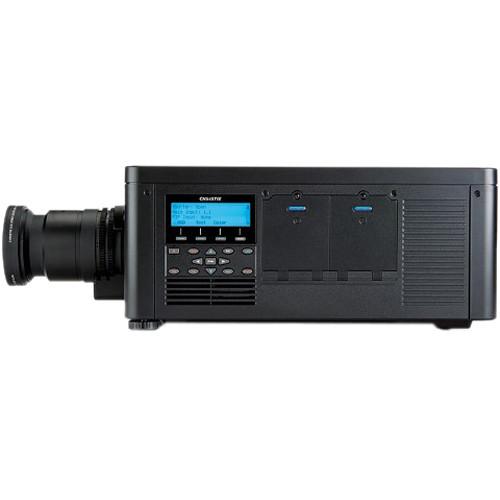

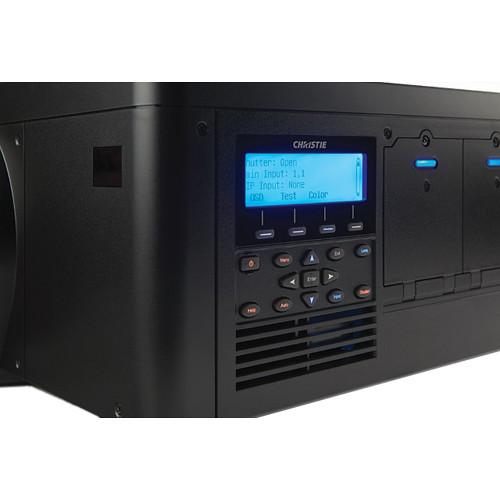

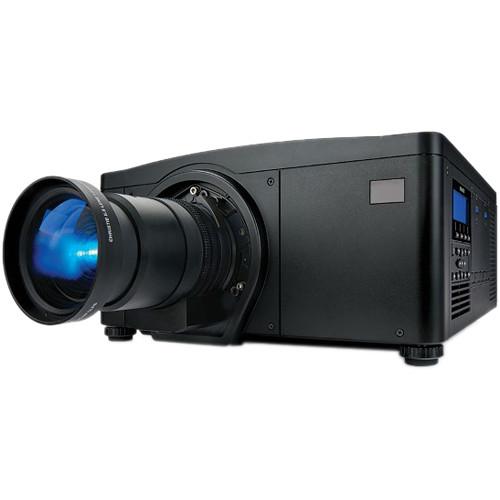

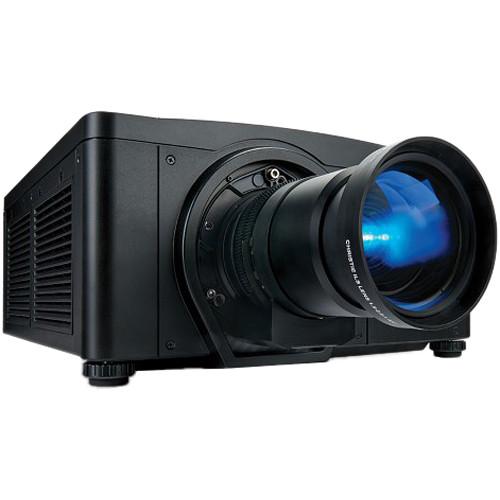

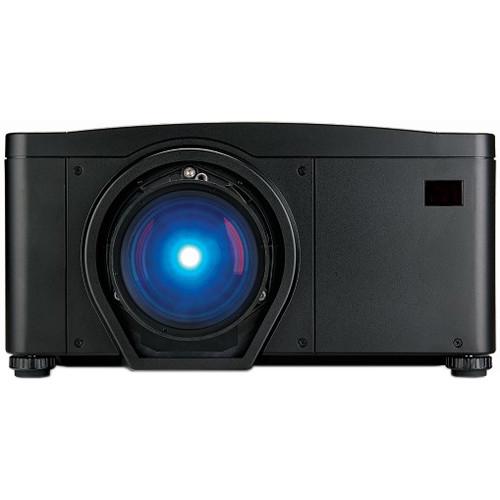

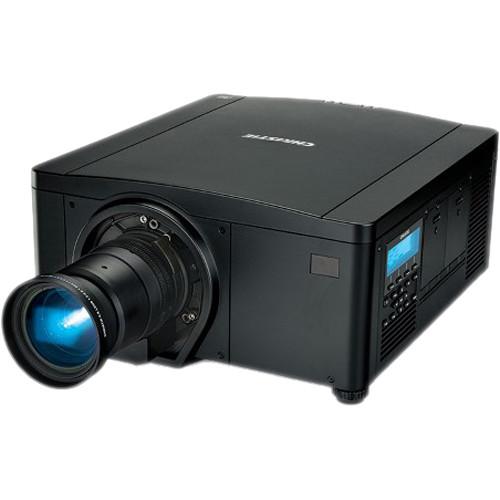

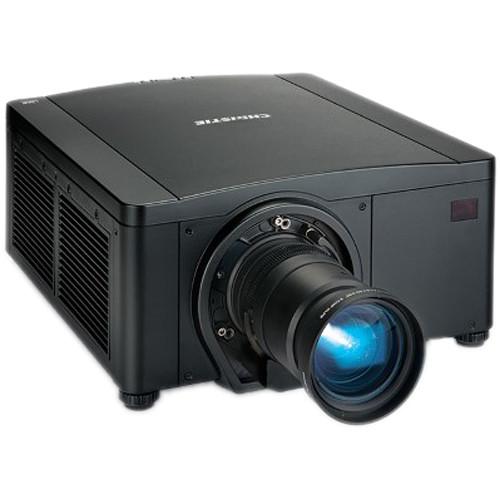

User Manual for Christie Roadster M Series WU12K-M WUXGA 3DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie Roadster M Series WU12K-M WUXGA
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie Roadster M Series WU12K-M WUXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The Roadster M Series WU12K-M WUXGA 3DLP Projector from Christie is designed with stages in mind. Each of the Roadster models ship with more input cards than other M Series models, as well as a stacking frame. WU12K-M projector offers embedded warping, blending, and color matching. It features a dual lamp design, and when using both lamps provides 11,550 center lumens for maximum brightness. WU12K-M supports a maximum resolution of 1920 x 1200, and a dynamic contrast ratio of 10,000:1. - Intelligent Lens System (ILS)
- The ILS automatically recognizes and calibrates a lens when it is installed. Stepper motor-based encoding ensures that motor drift does not occur, as typically found with DC encoded motors, providing accurate and repeatable recall of all lens offset, zoom and focus positions. This lens system ensures that the images adjust to optimize screen coverage and maintain alignment in applications with moving screens or variable aspect ratios.
- Multi Window/Screen Processing
- External processors are not required for simple, small tiled, and blended arrays. This reduces TCO. Each M Series projector has the ability to send signals to multiple projectors (up to a 3x3 array) without any additional hardware or software. The projectors in the tiled array can then show only the portion of the signal that they need to project.
- Embedded Christie Twist
- Christie Twist enables seamless edge-blending of multiple curved images faster and easier than traditional, manual methods. Controlled by an intuitive GUI, users can control and edgeblend or stack multiple curved images. Images can also be warped to fit virtually any dimension or shape display. Embedded Christie Twist ensures that all M Series projectors work with optional accessories such as Christie AutoStack and AutoStack Premium, camera-based software used to easily and accurately align content across a projection array in minutes.
- Embedded Edge Blending and Color Matching
- Advanced blending capabilities and Comprehensive Color Adjustment (CCA) ensure digitally accurate color matching and uniformity across multi-screen blended or tiled images.
- LiteLOC
- The LiteLOC feature automatically manages your display's brightness levels over time so that you can match the brightness of a multiple projector system in tiled or blended arrays. This feedback system continuously monitors lamp brightness, so that as the lamp goes through its natural brightness decay, the system increases the lamp power in order to maintain consistent brightness.
- Projector Control and Management
- Users can access all projector menus and control through a web interface (via Ethernet) without disrupting the live presentation. This allows for real-time adjustments and monitoring of each projector on the network, regardless of geographic location.
- Christie AutoStack
- Easily align Christie 3DLP content across multiple projectors in minutes with Christie AutoStack camera-based software. In conjunction with Christie Twist, images can be warped and blended seamlessly in a single flat screen display, supporting as many as twelve projectors, configured up to 2 high by 3 wide and then double-stacked as necessary for additional brightness or redundancy. Christie AutoStack Premium expands the capabilities of Christie AutoStack, working with more than twelve projectors in a single display on flat, curved/cylindrical, or portrait display screens.
- Dust-Sealed Engine
- Christie M Series projectors can operate filter-free because of dust-sealed engines and optics. Since dust and dirt cannot affect the system, and filters are not required, image quality is maintained and maintenance costs are lower. Removable side panels enable the addition of optional coarse-dust and fog-juice filters for projectors that are exposed to harsh environments.
- Wireless Projector Control
- Christie wireless projector control brings projection management to your fingertips with wireless projector control applications for Apple iOS and Android-based mobile digital devices. The Christie InControl app lets you control Christie projectors directly from your iPhone, iPad, and iPod, while the Christie Virtual Remote app offers the ability to manage Christie projectors using your Android-based mobile device. The two applications are designed to control any Christie M Series projector. Each projector can be controlled individually, or grouped together and controlled simultaneously. The Christie InControl app is available as a free download from the Apple App Store. The Christie Virtual Remote is available as a free download from the Google Play store.
- Other Features
-
- Variable contrast ratio
- Dual mercury lamps
- Small chassis
In the Box Christie Roadster M Series WU12K-M WUXGA 3DLP Projector (No Lens) Dual-Link DVI Input Card Dual SD/HD-SDI Input Card Video Decoder IR Remote Line Cord Stacking Frame Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie Roadster M Series WU12K-M WUXGA 3DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie 118-025108-04 Specs | | | Display System | -Chip 0.95" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: QXGA - 2048 x 1536 | | Max Brightness | 11,550 Lumens 5775 lumens when single lamp is used. | | Offset | 112% ± vertical
54% ± horizontal | | Contrast Ratio | 650:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 15 to 120 kHz

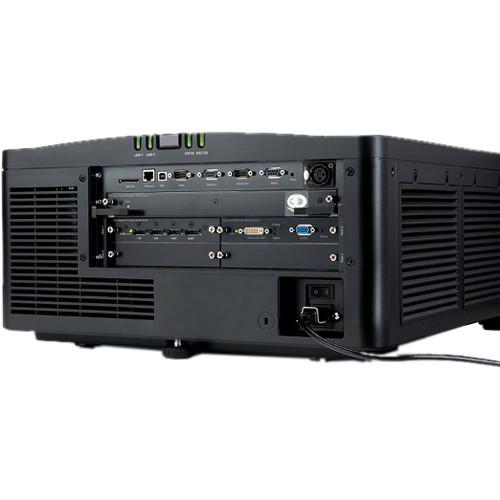

Vertical: 23.97 to 150 Hz | | | | Inputs/Outputs | 2 x DisplayPort Audio/Video
1 x DVI Video
1 x 3G-SDI (BNC) Video
2 x RS-232C (Unspecified Connector) Control
1 x RS-422 (Unspecified Connector) Control
1 x Ethernet (RJ45) LAN
1 x USB Control | | | | Lamp Power | 350 W | | Expected Lamp Life | Full Brightness: 1500 Hours
Low Brightness: 2000 Hours | | Heat Dissipation | 4508 BTU | | Power Consumption | Medium Brightness: 1320 W | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 22.1 x 19.7 x 10.2" / 56.1 x 50.0 x 25.9 cm | | Weight | 55.00 lb / 24.95 kg without lens |
