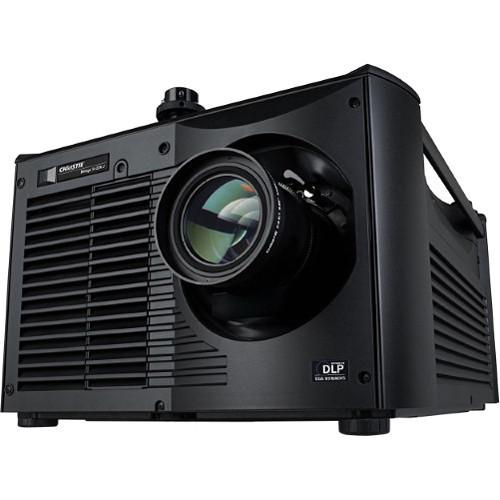

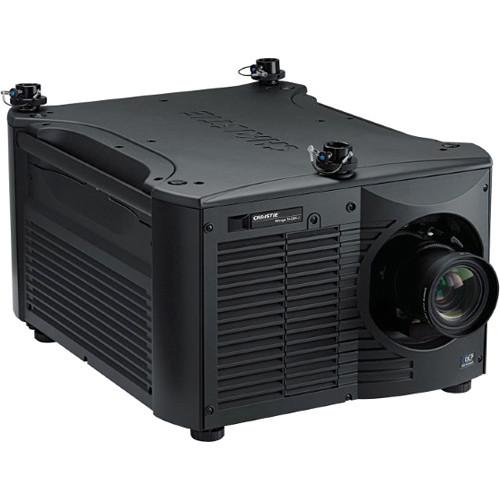

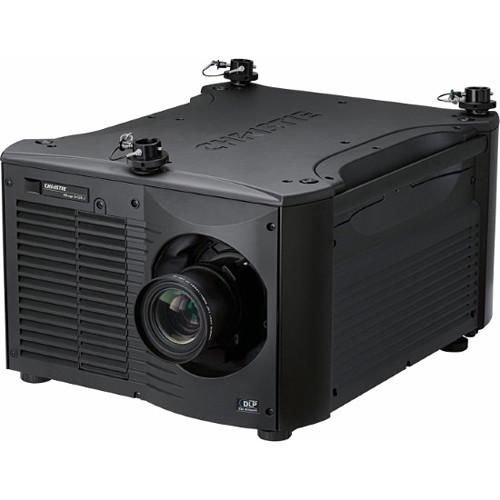

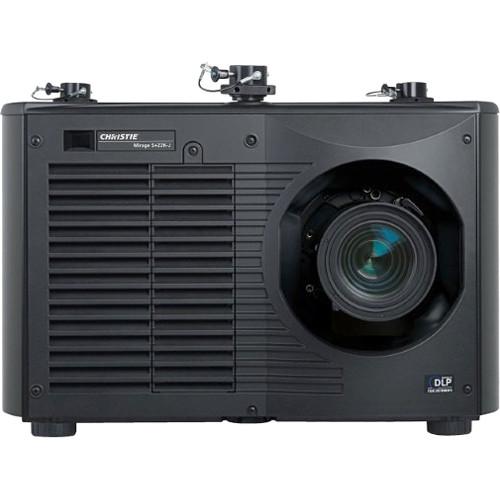

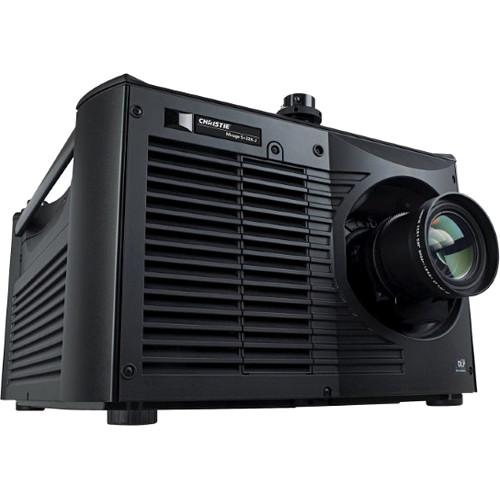

User Manual for Christie Roadster S 22K-J 3DLP Projector with ILS Lens Mount and YNF Click to enlarge the picture
Contents of the user manual for the Christie Roadster S 22K-J 3DLP Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie Roadster S 22K-J 3DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The Roadster S+22K-J 3DLP Projector with ILS Lens Mount and YNF from Christie is a 3DLP projector that is great for large venues. It features Xenon illumination for natural color accuracy and stability. This projector also offers higher brightness, Christie Twist technology, and 3D upgradability. - SXGA+ (1400 x 1050) resolution
- Embedded Christie Twist for image warping and edge blending
- Variable contrast ratio of 1600-2000:1 full field and 650:1 ANSI
- 3kW Xenon bubble lamp module
- Comprehensive Color Adjustment (CCA)
- Intelligent Lens System (ILS) for zoom, focus, horizontal, and vertical offset
- Multi-windowing and screen processing (up to a 3x3 array)
- Setup lights help users see menu displays in low-light environments
- Built-in portrait capabilities
- Liquid cooling allows for operating temperatures up to 104°F
- Advanced block artifact reduction
- ChristieNET web interface

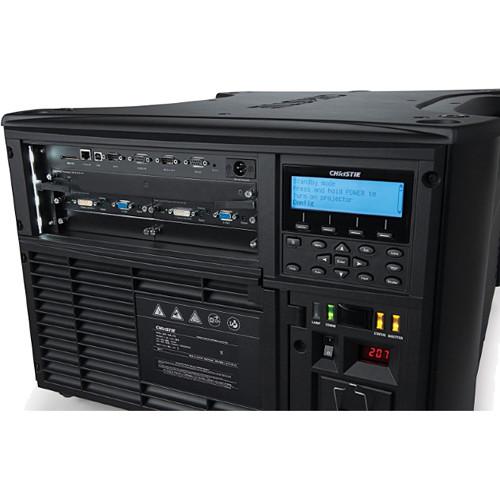

- User-friendly, intuitive LCD keypad
- Advanced Loop-Thru twin HDMI card
- Automatic shut off and Eco mode
- Simple Network Management Protocol (SNMP)
- Dynamic Host Configuration Protocol (DHCP)
In the Box Christie Roadster S+22K-J 3DLP Projector with ILS Lens Mount and YNF (No Lens) ILS Lens Mount and YNF IR Remote Line Cord Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie Roadster S 22K-J 3DLP Projector with ILS Lens Mount and YNF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie S+22KJ Specs | | | Display System | 3-Chip 0.95" DLP | | Native Chip Resolution | 1400 x 1050 (SXGA+) | | Supported Resolutions | Maximum: QXGA - 2048 x 1536 | | Max Brightness | 22,000 Lumens | | Uniformity | 90% | | Offset | 100% ± vertical
50% ± horizontal | | Contrast Ratio | 2000:1 | | Dynamic Contrast Ratio | 650:1 | | Scan | Horizontal: 15 - 120 kHz
Vertical: 23.97 - 150 Hz | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x DVI Video (Input)
1 x HD-SDI (BNC) Video (Input)
1 x SDI (BNC) Video (Input)
1 x Ethernet (RJ45) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input/Output)
1 x RS-422 (Unspecified Connector) Control (Input)
1 x USB Control (Input)
1 x XLR Control (Input) | | | | Light Source | Lamp (1 x Xenon) | | Lamp Power | 3000 W | | Expected Lamp Life | Medium Brightness: 750 Hours | | AC Input Power | 240 VAC, 50 Hz | | Heat Dissipation | 13650 BTU | | Power Consumption | Full Brightness: 4000 W | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 32.0 x 24.5 x 16.5" / 812.8 x 622.3 x 419.1 mm | | Weight | 160.00 lb / 72.574 kg Without Lens |
