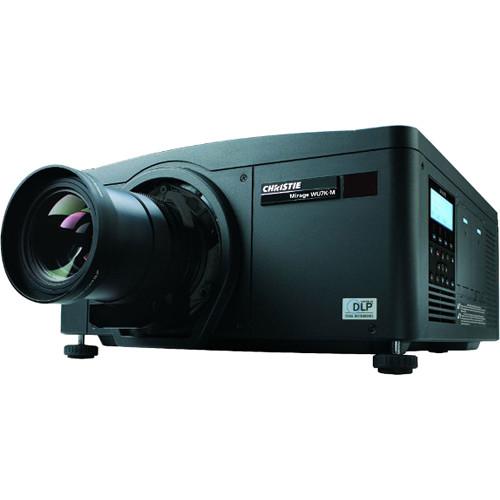

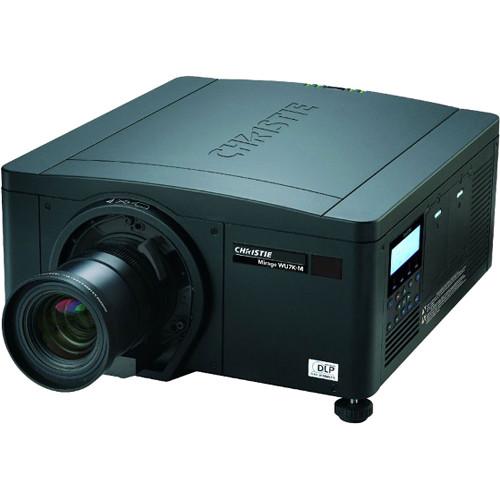

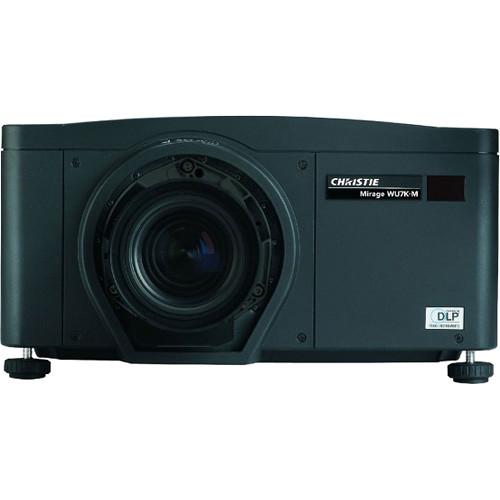

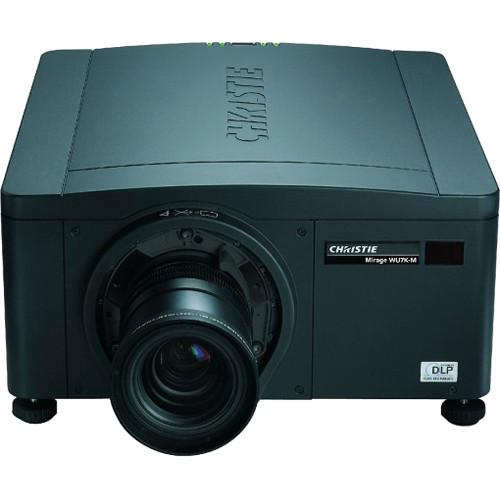

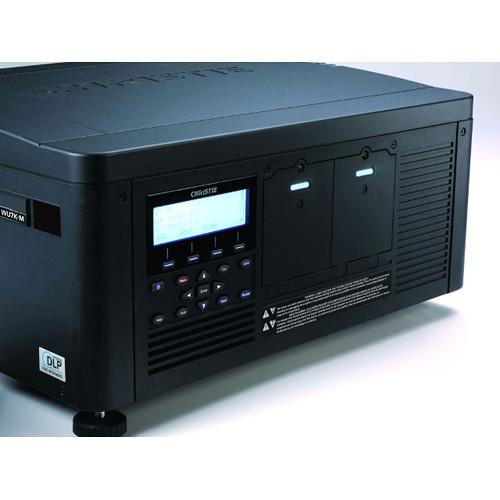

Product description The WU7K-M WUXGA DLP Projector from Christie offers embedded warping, blending, and color matching. It features a dual lamp design, and when using both two lamps provides 6,930 center lumens for maximum brightness. There is a WUXGA resolution of 1920 x 1200, and a contrast ratio of 650:1 ANSI. - Variable contrast ratio of 2500 to 10000:1, using dynamic iris / 650:1 ANSI for crisp, detailed images
- Comprehensive color adjustment
- Embedded Christie Twist image warping and edge-blending
- Dust-sealed engine, filter-free design
- Intelligent Lens System (ILS) for zoom, horizontal, and vertical offset
- Motorized yellow notch filter
- Built-in portrait display capabilities
- Accepts all current HDTV/DTV formats
- Multi-standard video decoder
- Motorized horizontal and vertical lens offset
- Scheimpflug (tilt) adjustment
- Tool-free lens insertion system
- Digital keystone correction
In the Box Christie WU7K-M WUXGA DLP Projector IR Remote Control Line Cord (Remote to Projector) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie WU7K-M WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie WU7KM Specs | | | Display System | 3-Chip 0.96" DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: QXGA - 2048 x 1536 | | Max Brightness | 6930 Lumens
3465 Lumens | | Uniformity | 90% | | Offset | 112% ± | | Contrast Ratio | 650:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 15 to 120 kHz

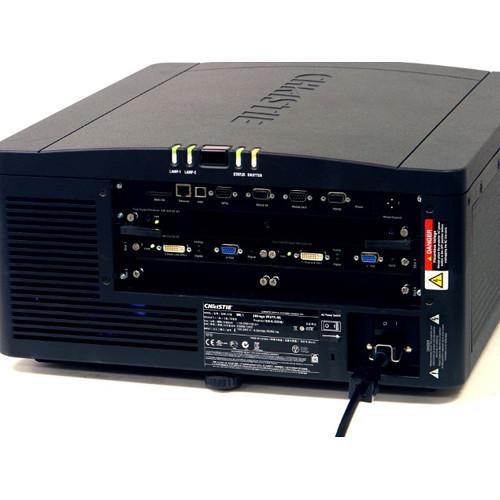

Vertical: 23.97 to 150 Hz | | | | Inputs/Outputs | 1 x 5BNC Video (Input)
1 x DVI Video
1 x RS-232C (Unspecified Connector) Control (Input/Output)
1 x RS-422 (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) Control
1 x USB Service (Input)
1 x Unspecified Signal (DE-9) Video | | | | Light Source | Lamp (2 x OSRAM) | | Lamp Power | 200 W | | Expected Lamp Life | Full Brightness: 2000 Hours
Low Brightness: 3000 Hours | | Heat Dissipation | 2971 BTU | | Power Consumption | Medium Brightness: 870 W | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 22.1 x 19.7 x 10.2" / 56.1 x 50.0 x 25.9 cm | | Weight | 55.00 lb / 24.95 kg |
