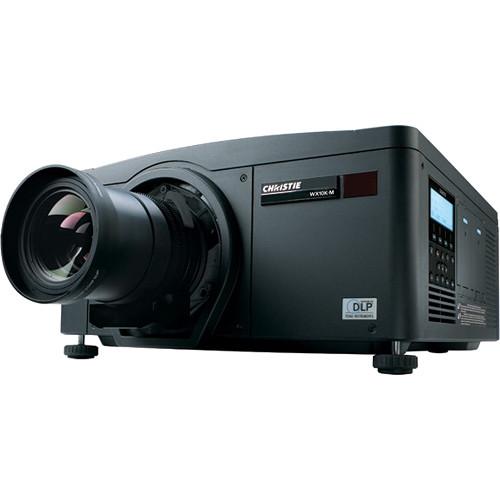

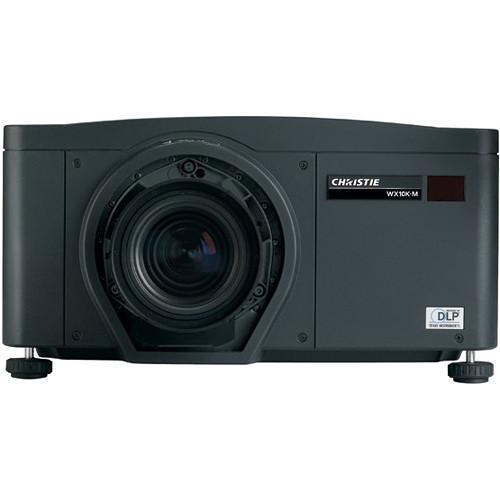

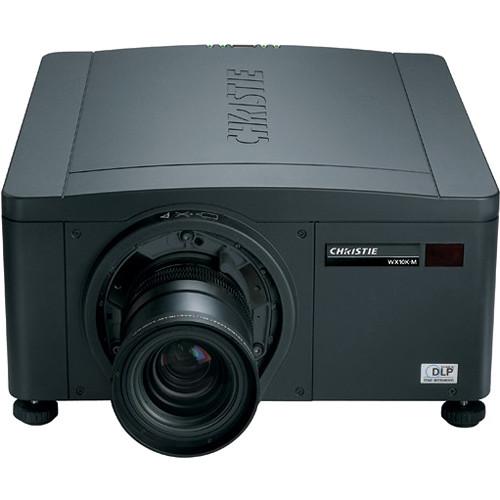

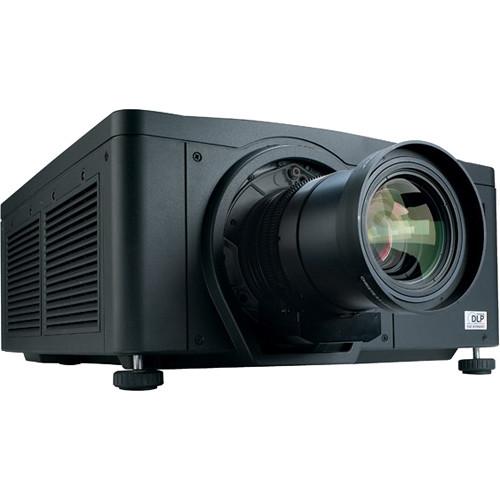

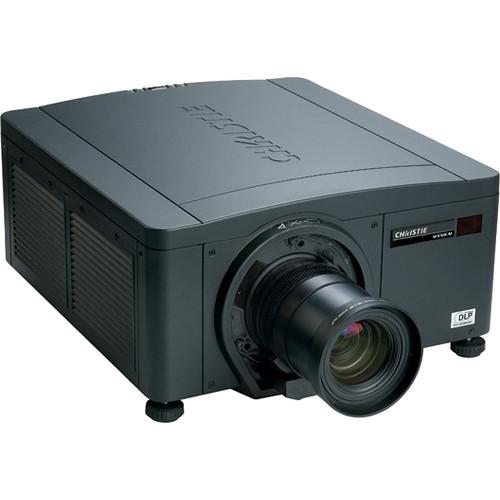

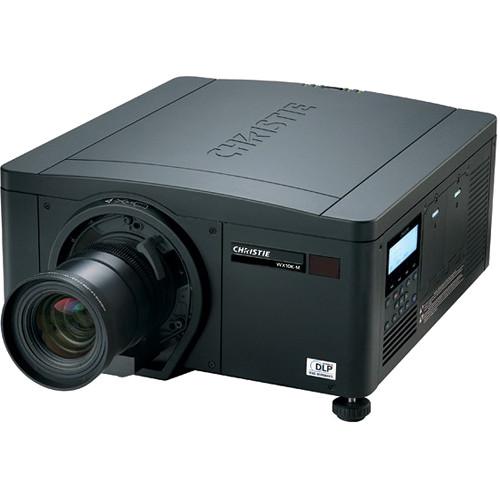

User Manual for Christie WX10K-M WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Christie WX10K-M WXGA DLP Projector
- Product category: Multimedia Projectors Christie
- Brand: Christie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Christie Multimedia Projectors
 |
User manual for the Christie WX10K-M WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Christie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Christie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Christie product will considerably shorten its lifespan!
|
Product description The WX10K-M WXGA DLP Projector from Christie features a dual lamp design, allowing you to adjust the number of lamps and power level used according to your needs. It offers a WXGA resolution of 1366 x 768, and a brightness level of 10,450 center lumens. There is a variable contrast ratio of 2500 to 10,000:1 using dynamic iris, and an ANSI contrast ratio of 650:1, for crisp and detailed images. A motorized horizontal and vertical lens offset, tilt adjustment, and built-in light shutter enable you to conveniently manipulate the projected image. The projector will automatically shut off when it is not receiving a signal, and you can manually control the fan speed to cool down the system. - Variable contrast ratio of 2500 to 10,000:1, using dynamic iris
- 650:1 ANSI contrast ratio for crisp, detailed images
- Comprehensive color adjustment
- Embedded Christie Twist image warping and edge-blending
- Dust-sealed engine, filter-free design
- Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
- Multi-windowing and screen processing (up to 3x3 array)
- Built-in portrait display capabilities
- Multi-standard video decoder
- Horizontal and vertical scaling for all inputs
- Scheimpflug (tilt) adjustment
- Tool-free lens insertion system
- Digital keystone correction
- Motorized yellow notch filter
In the Box Christie WX10K-M WXGA DLP Projector IR Remote Line Cord 15-Pin VGA to 5-BNC Female Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Christie WX10K-M WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChristie WX10KM Specs | | | Display System | 3-Chip 0.85" DMD DLP | | Native Chip Resolution | 1366 x 768 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: QXGA - 2048 x 1536 | | Max Brightness | 10,450 Lumens
5225 Lumens | | Uniformity | 90% | | Offset | 150% vertical
76% horizontal | | Contrast Ratio | 650:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 15 to 120 kHz
Vertical: 23.97 to 150 Hz | | | | Inputs/Outputs | 1 x DVI Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input/Output)
1 x RS-422 (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x USB Control (Input)
1 x Unspecified Signal (DE-9) Video (Input) | | | | Light Source | Lamp (2 x OSRAM) | | Lamp Power | 350 W | | Expected Lamp Life | Medium Brightness: 1500 Hours
Low Brightness: 2000 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 4508 BTU | | Temperature | Operating
40 to 104°F (4 to 40°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 22.1 x 19.7 x 10.2" / 56.1 x 50.0 x 25.9 cm | | Weight | 55.00 lb / 24.95 kg |
