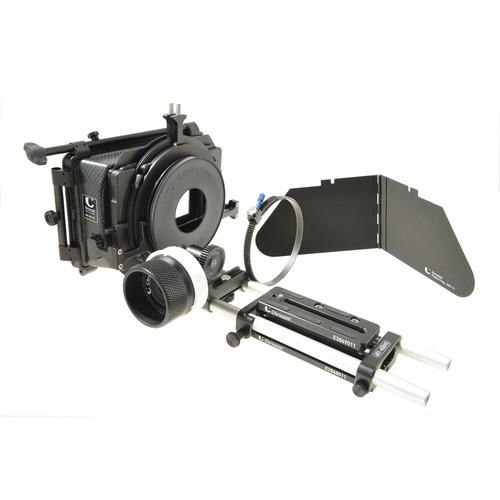

User Manual for Chrosziel 450-R2 Matte Box and Follow Focus Kit for Blackmagic Cinema Camera & Production Camera 4K Click to enlarge the picture
Contents of the user manual for the Chrosziel 450-R2 Matte Box and Follow
- Product category: Camcorder Supports & Rigs Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Camcorder Supports & Rigs
|
User manual for the Chrosziel 450-R2 Matte Box and Follow contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The 450-R2 Matte Box and Follow Focus Kit for Blackmagic Cinema Camera & Production Camera 4K from Chrosziel is a production package built around a 15mm rod support system. It features the 401-458 LWS 15 HD baseplate, 450-R2 Matte Box Kit, and the 206-05S DV StudioRig Follow Focus Kit with 0.8 pitch drive gear.
The 401-458 LWS 15 HD baseplate is designed for the Blackmagic Cinema Camera or Production Camera 4K, providing the proper rod to lens center height for use with the matte box. Your camera mounts to the baseplate via a 1/4"-20 screw, and dual 15mm rod ports provide support for the included 12.2" rods.
The 450-R2 Matte Box comes with a 15mm rod bracket for mounting on the rods included with the baseplate. The matte box features two independently rotating filter stages that can support, one that accepts a 4x4" filter tray, and one that supports a 4x4"/4x5.56" combination tray. Both trays come included. Also included are a top flag and side mechanism for adding optional side wings, and a removable rear attachment ring with 114mm and 110mm threads. To accommodate a wide variety of lenses, a 110mm flexible step-down ring is provided, which fits around lens diameters between 50 and 85mm.
For smooth and precise focus control, the 206-05S DV StudioRig Follow Focus is included. It supports lenses with diameters up to 115mm and features a removable focus scale. A 0.8 pitch gear drive is provided for use with cinema lenses. For lenses without 0.8 pitch gearing, a single Flexi Gear Ring MK II is also included for adding a 0.8 pitch ring to any lens with a diameter between 60mm and 120mm. In the Box Chrosziel 450-R2 Matte Box and Follow Focus Kit for Blackmagic Cinema Camera & Production Camera 4K MB 450R2 Matte Box absyrdxccqxcucerabetwzweuexfxc Flex-Ring Flexible Step-Down Ring (110 to 50-85mm) LWS 15 HD Support for Blackmagic Cinema & 4K Production Camera DV StudioRig Follow Focus 206-12 Focus Gear Drive (0.8 Gear Pitch) Flexi Gear Ring MK II (Single) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel 450-R2 Matte Box and Follow Focus Kit for Blackmagic Cinema Camera & Production Camera 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 450R2-BMD1AKIT Specs | | | Total Filter Stages | 2 | | Rotating Filter Stages | 1 x 4x4"
1 x 4x5.56" | | Interface | 15mm rod support bracket
110mm and 114mm rear threads | | | | Drive Gear | 0.8 Pitch | | Max Lens Diameter Supported | 115mm | | | | Rod Length | 12.2" (31 cm) | | Camera Screw | 1/4"-20 | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 12.2 x 8.7 x 6.1" |
