Chrosziel 450-R2 Matte Box Follow Focus

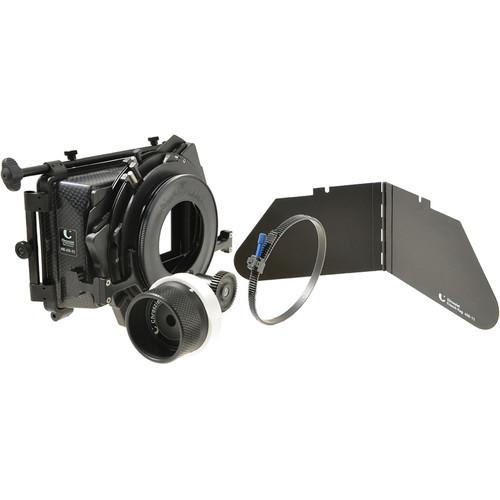

User Manual for Chrosziel 450-R2 Matte Box Follow Focus Kit for Blackmagic Design URSA Mini

• Product category: Camcorder Supports & Rigs Chrosziel
• Brand: Chrosziel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Chrosziel Camcorder Supports & Rigs

Product description

• MB 450R2 Matte Box Lightweight, robust, and ready for production, Chrosziel's MB 450R2 Matte Box can complement a wide range of cameras, from smaller camcorders or mirrorless cameras, up to larger cinema cameras and ENG camcorders with an outer lens diameter of up to 114mm (lenses with a diameter smaller than 110mm may require additional accessories for full compatibility). With the included top flag and 16:9 mask, glare from outside the frame can be effectively controlled for improved contrast and reduced ghosting in the recorded image. Further control can be achieved through separately available side and bottom flags. Insert your favorite filters into the available stages for further creative control. The rear stage accepts 4x4" filters only, while the front stage will accept 4x4 as well as larger 4x5.65" filters. Both stages rotate, enabling the use and control of polarizing as well as graduated filters. For further possibilities, the MB 450R2 can be upgraded in the future with a separately available third rotating filter stage. To use this matte box on your camera, the camera must be mounted on a separately available 15mm LWS baseplate. Fit the matte box on the rods until it covers the lens front. Rod-mounted matte boxes are preferred over clamp-on matte boxes in many production situations as they are always properly aligned with the image horizon.
• DV StudioRig Follow Focus Constructed from high-quality materials, Chrosziel's DV StudioRig Follow Focus is built for the professional filmmaker working with DSLR, mirrorless, or cinema cameras. The main body of the DV StudioRig is machined from aluminum and the oversized handwheel rotates smoothly with minimal play in the gearbox. Use the knurled thumbscrew on the sliding rod clamp to secure the DV StudioRig to 15mm LWS rods. Since the rod clamp slides, the DV StudioRig is compatible with many lens diameters, from small DSLR lenses to larger cinema lenses. A white marking disk is included for outlining focus pulls with a dry-erase marker or grease pencil. In order to be used with a lens, a drive gear must be purchased separately. Drive gears are available in various sizes and tooth spacings to fit ENG and cinema lenses as well as a friction gear for DSLR lenses without teeth. Once you have a gear, it simply snaps into the gearbox and can be easily exchanged. Settable hard stops can be added with the separately available C-206-60 VariLock upgrade kit.
• 206-12 Focus Gear Drive (0.8 Gear Pitch) The Chrosziel 206-12 is a 0.8 gear pitch focus gear drive for Chrosziel's 206-01S follow focus system. It features standard 0.8 pitch gearing for use with cine-style lenses.
• Flexi Gear Ring MK II (Single) The Flexi Gear Ring MK II from Chrosziel is a flexible gear ring adjustable from 60 to 120mm in diameter. The ring features standard 0.8 pitch gearing, allows for approximately 310° of rotation, and can be quickly attached and removed from lenses.

• 16:9 Insert Mask

• 450-11 Top French Flag for MB-450 Matte Box

• 410-04 4x5.65 Filter Holder

• 410-04 4x5.65 Filter Holder - Horizontal

• Limited 1-Year Warranty

• 205-02 Handwheel Marking Scale - For DV Follow Focus System

• Limited 1-Year Warranty

• 1 Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MB 450R2 Matte Box

  Lens Fit and Mount	114mm outer diameter lens clamp
  Type	15mm LWS
  Filter Type	1 x 4x5.65" 1 x 4x4"
  Total Filter Stages	2
  Rotating Stages	2
  Max Wide Angle Focal Length	1/3" HD Chip: 3.1mm 1/2" XDCAM Chip: 4mm

  Box Dimensions (LxWxH)	13.5 x 8.9 x 6.25"

• DV StudioRig Follow Focus

  Rod Standard	15mm LWS
  Lens Compatibility	Maximum Diameter: 115 mm (with C-205-02 drive gear)
  Weight	11 oz / 310 g

  Box Dimensions (LxWxH)	7.8 x 4.5 x 3.3"

• 206-12 Focus Gear Drive (0.8 Gear Pitch)

  Box Dimensions (LxWxH)	2.5 x 1.6 x 1.4"

• Flexi Gear Ring MK II (Single)

  Pitch	0.8
  Diameter	60 to 120mm

  Box Dimensions (LxWxH)	5.5 x 5.0 x 0.9"
