Chrosziel 450R2 Matte Box Follow Focus

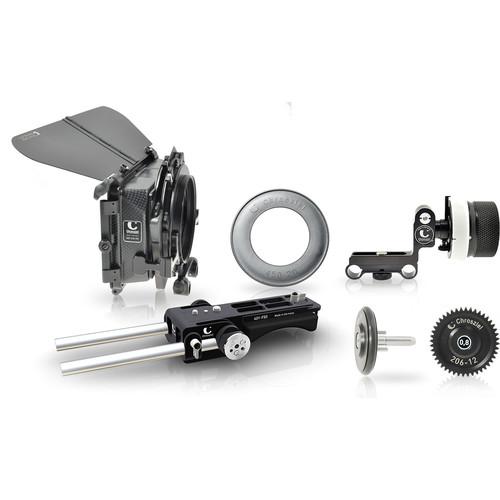

User Manual for Chrosziel 450R2 Matte Box Follow Focus Kit for Sony PXW-FS5 Camera

• Product category: Camcorder Supports & Rigs Chrosziel
• Brand: Chrosziel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Chrosziel Camcorder Supports & Rigs

Product description

• Lightweight Support for Sony PXW-FS5 with Rods The Chrosziel Lightweight Support for the FS5 with Rods features a V-mount plate on the bottom for attaching to VCT-14 plates, and has a sliding shoulder pad that extends out to provide ample space for fully securing onto a VCT-14 plate. Furthermore, there's a slot on the bottom rear that the securing stud of VCT-14 plates secures into for reliable attachment.

  Additionally, the Lightweight Support includes a flexible tripod adapter plate with mounting holes that allow for optimal attachment on most tripods or the optional Chrosziel DigiCine Bridge Plate, as well as ensure that the correct optical axis height is achieved when using 19mm studio setups. The Lightweight Support also features ARRI-standard rosette adapters for compatible handgrips and easy-to-use clamp levers throughout. The extendable shoulder pad, in addition to accommodating VCT-14 plates, also extends out to allow you to find the ideal balance with your FS5.
• MB 450R2 Matte Box Lightweight, robust, and ready for production, Chrosziel's MB 450R2 Matte Box can complement a wide range of cameras, from smaller camcorders or mirrorless cameras, up to larger cinema cameras and ENG camcorders with an outer lens diameter of up to 114mm (lenses with a diameter smaller than 110mm may require additional accessories for full compatibility). With the included top flag and 16:9 mask, glare from outside the frame can be effectively controlled for improved contrast and reduced ghosting in the recorded image. Further control can be achieved through separately available side and bottom flags. Insert your favorite filters into the available stages for further creative control. The rear stage accepts 4x4" filters only, while the front stage will accept 4x4 as well as larger 4x5.65" filters. Both stages rotate, enabling the use and control of polarizing as well as graduated filters. For further possibilities, the MB 450R2 can be upgraded in the future with a separately available third rotating filter stage. To use this matte box on your camera, the camera must be mounted on a separately available 15mm LWS baseplate. Fit the matte box on the rods until it covers the lens front. Rod-mounted matte boxes are preferred over clamp-on matte boxes in many production situations as they are always properly aligned with the image horizon.
• C-411-68 Flexi Insert Ring (for 130mm Clamp) The Chrosziel C-411-68 Flexi Insert Ring (for 130mm Clamp) is a light-prevention ring that seamlessly fits into the 130mm clamp of the 450W-20 and 456-20/456-30 rod-mounted matte boxes and covers lenses with diameters ranging from 95-125mm.
• 130 to 110mm Step-Down Ring The Chrosziel 130 to 110mm Step-Down Ring fits into the 130mm clamp adapter on the MB-456 and MB450W matte boxes. The ring creates a 110mm thread for the wide choice of light prevention rings.
• Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) The Chrosziel Flexi-Ring Flexible Step-Down Ring is a 110 to 75-98mm adjustable step-down ring. The ring is designed to work with the MB-450 matte box series and will fit a variety of wide angle attachment lenses.
  • Compatible with MB-450 matte box system for wide angle attachment lenses between 75-98mm.
  • Flexible material makes it easily adjustable.
• DV StudioRig Follow Focus Constructed from high-quality materials, Chrosziel's DV StudioRig Follow Focus is built for the professional filmmaker working with DSLR, mirrorless, or cinema cameras. The main body of the DV StudioRig is machined from aluminum and the oversized handwheel rotates smoothly with minimal play in the gearbox. Use the knurled thumbscrew on the sliding rod clamp to secure the DV StudioRig to 15mm LWS rods. Since the rod clamp slides, the DV StudioRig is compatible with many lens diameters, from small DSLR lenses to larger cinema lenses. A white marking disk is included for outlining focus pulls with a dry-erase marker or grease pencil. In order to be used with a lens, a drive gear must be purchased separately. Drive gears are available in various sizes and tooth spacings to fit ENG and cinema lenses as well as a friction gear for DSLR lenses without teeth. Once you have a gear, it simply snaps into the gearbox and can be easily exchanged. Settable hard stops can be added with the separately available C-206-60 VariLock upgrade kit.
• 206-12 Focus Gear Drive (0.8 Gear Pitch) The Chrosziel 206-12 is a 0.8 gear pitch focus gear drive for Chrosziel's 206-01S follow focus system. It features standard 0.8 pitch gearing for use with cine-style lenses.
• Focus Drive with Friction Gear (Ø 34mm) for DV StudioRig The Chrosziel Focus Drive with Friction Gear (Ø 34mm) for DV StudioRig features a soft-rubber surface that compensates for the unevenness of the lens ring. It is suitable for all lenses that do not accept a gear ring, including the Sony SEL18-200 Camera.

• Adjustable Shoulder Pad

• Tripod Adapter Plate for FS7 and FS5 Lightweight Supports

• V-Mount Adapter

• 2 x 8" 15mm Rods

• Limited 1-Year Warranty

• 16:9 Insert Mask

• 450-11 Top French Flag for MB-450 Matte Box

• 410-04 4x5.65 Filter Holder

• 410-04 4x5.65 Filter Holder - Horizontal

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 205-02 Handwheel Marking Scale - For DV Follow Focus System

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Lightweight Support for Sony PXW-FS5 with Rods

  Dimensions	8.3 x 4.4 x 1.8" (21 x 11.3 x 4.5 cm) (without rods)
  Weight	Approx. 1.4 lb (625 g) (without rods)

  Box Dimensions (LxWxH)	11.95 x 7.45 x 2.95"

• MB 450R2 Matte Box

  Lens Fit and Mount	114mm outer diameter lens clamp
  Type	15mm LWS
  Filter Type	1 x 4x5.65" 1 x 4x4"
  Total Filter Stages	2
  Rotating Stages	2
  Max Wide Angle Focal Length	1/3" HD Chip: 3.1mm 1/2" XDCAM Chip: 4mm

  Box Dimensions (LxWxH)	13.5 x 8.9 x 6.25"

• C-411-68 Flexi Insert Ring (for 130mm Clamp)

  Box Dimensions (LxWxH)	5.3 x 5.2 x 0.3"

• 130 to 110mm Step-Down Ring

  Compatibility	Chrosziel MB-456 and MB-450W
  Weight	2.3 oz / 66 g

  Box Dimensions (LxWxH)	8.0 x 7.0 x 1.0"

• Flex-Ring Flexible Step-Down Ring (110 to 75-98mm)

  Front Lens Diameter	110mm
  Rear Mount	75-98mm

  Box Dimensions (LxWxH)	5.6 x 4.7 x 0.6"

• DV StudioRig Follow Focus

  Included Drive Gear	None
  Rod Compatibility	15 mm LWS
  Number of Sides	Single-Sided
  Built-In Hardstops	None
  Marking Disk	Yes
  Maximum Lens Diameter	4.52755905511811" / 115 mm
  Switchable Handwheel Speed	No
  Weight	11 oz / 310 g

  Box Dimensions (LxWxH)	7.8 x 4.5 x 3.3"

• 206-12 Focus Gear Drive (0.8 Gear Pitch)

  Box Dimensions (LxWxH)	2.5 x 1.6 x 1.4"

• Focus Drive with Friction Gear (Ø 34mm) for DV StudioRig

  Diameter

  1.34" (34.00 mm)

  Box Dimensions (LxWxH)	4.0 x 3.0 x 1.0"
