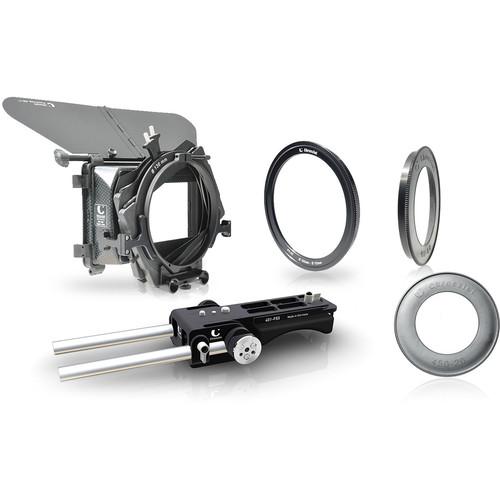

User Manual for Chrosziel 450W Matte Box Kit for Sony PXW-FS5 Camera Click to enlarge the picture
Contents of the user manual for the Chrosziel 450W Matte Box Kit for
- Product category: Matte Boxes & Sunshades Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Matte Boxes & Sunshades
|
User manual for the Chrosziel 450W Matte Box Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description Kit out your Sony FS5 camera with the Chrosziel 450W Matte Box Kit to build a studio setup. This kit is comprised of Chrosziel's MB 450W super-wide matte box and the FS5 LWS support. Once built, the matte box will fit on the included 15mm rods and the baseplate will allow the rig to be mounted on a standard VCT-14 quick-release system. The rig can be further built up to include other 15mm LWS accessories such as follow focuses and lens supports. See below for more information on the individual items included in this kit. - Lightweight Support for Sony PXW-FS5 with Rods The Chrosziel Lightweight Support for the FS5 with Rods features a V-mount plate on the bottom for attaching to VCT-14 plates, and has a sliding shoulder pad that extends out to provide ample space for fully securing onto a VCT-14 plate. Furthermore, there's a slot on the bottom rear that the securing stud of VCT-14 plates secures into for reliable attachment.
Additionally, the Lightweight Support includes a flexible tripod adapter plate with mounting holes that allow for optimal attachment on most tripods or the optional Chrosziel DigiCine Bridge Plate, as well as ensure that the correct optical axis height is achieved when using 19mm studio setups. The Lightweight Support also features ARRI-standard rosette adapters for compatible handgrips and easy-to-use clamp levers throughout. The extendable shoulder pad, in addition to accommodating VCT-14 plates, also extends out to allow you to find the ideal balance with your FS5. - C-411-68 Flexi Insert Ring (for 130mm Clamp) The Chrosziel C-411-68 Flexi Insert Ring (for 130mm Clamp) is a light-prevention ring that seamlessly fits into the 130mm clamp of the 450W-20 and 456-20/456-30 rod-mounted matte boxes and covers lenses with diameters ranging from 95-125mm.
- 130 to 110mm Step-Down Ring The Chrosziel 130 to 110mm Step-Down Ring fits into the 130mm clamp adapter on the MB-456 and MB450W matte boxes. The ring creates a 110mm thread for the wide choice of light prevention rings.
- Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) The Chrosziel Flexi-Ring Flexible Step-Down Ring is a 110 to 75-98mm adjustable step-down ring. The ring is designed to work with the MB-450 matte box series and will fit a variety of wide angle attachment lenses.
- Compatible with MB-450 matte box system for wide angle attachment lenses between 75-98mm.
- Flexible material makes it easily adjustable.
- MB 450W Super Wide Matte Box
In the Box Bundle Items Lightweight Support for Sony PXW-FS5 with Rods rqcwfafxaqewtdyaeatryttztfxfdae - Tripod Adapter Plate for FS7 and FS5 Lightweight Supports
MB 450W Super Wide Matte Box C-411-68 Flexi Insert Ring (for 130mm Clamp) 130 to 110mm Step-Down Ring Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel 450W Matte Box Kit for Sony PXW-FS5 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lightweight Support for Sony PXW-FS5 with Rods
| Dimensions | 8.3 x 4.4 x 1.8" (21 x 11.3 x 4.5 cm) (without rods) | | Weight | Approx. 1.4 lb (625 g) (without rods) | | | | Box Dimensions (LxWxH) | 11.95 x 7.45 x 2.95" | - C-411-68 Flexi Insert Ring (for 130mm Clamp)
| | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 0.3" | - 130 to 110mm Step-Down Ring
| Compatibility | Chrosziel MB-456 and MB-450W | | Weight | 2.3 oz / 66 g | | | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 1.0" | - Flex-Ring Flexible Step-Down Ring (110 to 75-98mm)
| Front Lens Diameter | 110mm | | Rear Mount | 75-98mm | | | | Box Dimensions (LxWxH) | 5.6 x 4.7 x 0.6" | - MB 450W Super Wide Matte Box
