User Manual for Chrosziel 456-20 Matte Box Kit for Sony PMW-F5 55 Cinema Cameras Click to enlarge the picture
Contents of the user manual for the Chrosziel 456-20 Matte Box Kit for
- Product category: Matte Boxes & Sunshades Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Matte Boxes & Sunshades
|
User manual for the Chrosziel 456-20 Matte Box Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|

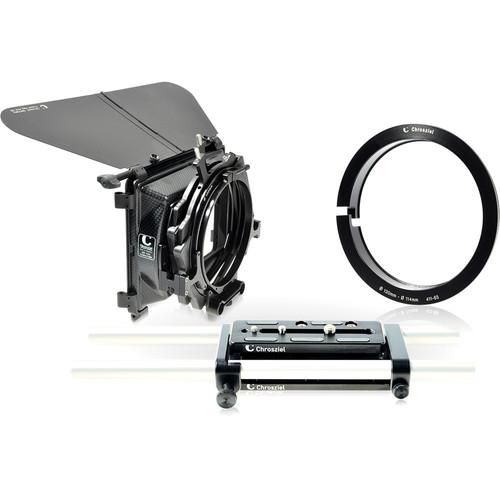

Product description Kit out your Sony F5 or F55 cinema camera for serious production with this Chrosziel 456-20 Matte Box Kit. This kit is comprised of the Chrosziel 456-20 matte box and the Chrosziel F5/55 LWS baseplate. Using the included 15mm rods, the matte box can be securely attached to the setup with room left over for more accessories such as follow focuses and lens supports. See below for more information on the individual items included with this kit. - Lightweight Support for Sony F5/F55 with Rods With the Chrosziel Lightweight Support for Sony F5/F55 you can mount 15mm LWS-compatible accessories to your Sony F5 or F55 camera. The baseplate is set to the correct height, ensuring that the optical axis conforms to the 15mm LWS standard in order to correctly fit matte boxes, follow focuses, lens supports and other industry standard accessories. The bottom of this plate allows for mounting on the separately available Chrosziel 19mm studio bridgeplate while still maintaining the proper optical axis. A set of two 12" 15mm rods are included with this baseplate.
- Matte Box 456-20 Academy (2 Filter Holders) The Chrosziel Matte Box 456-20 Academy (2 Filter Holders) consists of a 456-R20 matte box, French flag, a filter stage for two individually rotating filter holders, two 4 x 5.65"/5 x 5" filter holders, a 130mm clamp-on rear plate, and a bracket for 15mm lightweight support rods. It is ideal for use with handheld and studio production cameras.The 456-R20 Matte Box offers a wide angle (16:9/4:3) housing for lenses as wide as 12mm (35mm Academy) and eliminates the effects of vignetting. Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders, the matte box provides sufficient space for adjusting the position of filters.Provided with a French flag, the Matte Box 456-20 Academy controls the angle of light and eliminates lens glare and flare. It can be coupled with optional side wings for accurate light adjustment. The kit includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods (optional).With optional bridgeplate adapters, you can interface the kit with 15 or 19mm bridgeplate rods. An optional swing-away bracket, attached to the back of the matte box housing, allows for quick and efficient lens changes.
- Consists of a 450W-R20 matte box that offers a wide angle (16:9/4:3) housing for lens as wide as 12mm (35mm Academy) and eliminates the effects of vignetting
- Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders
- Provides sufficient space for adjusting the position of filters
- French flag controls the angle of light, eliminates lens glare and flare, and can be coupled with optional side wings for accurate light adjustment
- Includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods
- Can be interfaced with 15 or 19mm bridgeplate rods using optional bridgeplate adapters
- Optional swing-away bracket attached to the back of the matte box housing allows for quick and efficient lens change
- C-411-65 Step-Down Ring 130:114mm The Chrosziel AC-411-65 is a 130:114mm step-down ring that fits into the 130mm clamp of the 450W-20, 456-20 & 456-30 matte boxes and the 412-02F130 sunshade. The ring creates a 114mm thread which is used for connecting many cine-style lenses, such as Zeiss Compact Primes, Sony PL-mount primes, and Angenieux Optimo DP Rouge zooms.
- This step-down ring adapts from 130mm down to 114mm.
- Fits Angenieux lenses as well as others with a 114mm filter thread diameter.
In the Box Bundle Items Lightweight Support for Sony F5/F55 with Rods zdsrbbwevyrrcrwresdewx Matte Box 456-20 Academy (2 Filter Holders) - 402-26 Foldable French Flag
- Filter Stage for Two Rotating Filter Holders
- 2 x 4 x 5.65"/5 x 5" Combination Filter Holder (510-01)
- 130mm Diameter Rear Plate
- Bracket for 15mm Lightweight Support Rods
C-411-65 Step-Down Ring 130:114mm zdsrbbwevyrrcrwresdewx Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel 456-20 Matte Box Kit for Sony PMW-F5 55 Cinema Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Matte Box 456-20 Academy (2 Filter Holders)
| Focal Length | 12mm (35mm Academy)
5.2mm (2/3")
2.6mm (1/3")
(maximum focal length) | | Format | 16:9, 4:3 | | Components | Insert Masks: Included
Filter Sizes: 5 x 5" and 4 x 5.65"
Rotating Filter Stages: 2
Rear Plate: 130 mm Diameter
Rod Support: 15 mm
Clamp Support: Yes
Swing-Away: Optional
French Flag: Yes
Side Wings: Optional | | | | Box Dimensions (LxWxH) | 16.35 x 13.65 x 3.8" | - C-411-65 Step-Down Ring 130:114mm
| | | Box Dimensions (LxWxH) | 7.7 x 5.6 x 0.6" | - Lightweight Support for Sony F5/F55 with Rods
