User Manual for Chrosziel 700-00B CustomCage Kit with Carrying Case Click to enlarge the picture
Contents of the user manual for the Chrosziel 700-00B CustomCage Kit with Carrying
- Product category: Camcorder Supports & Rigs Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Camcorder Supports & Rigs
|
User manual for the Chrosziel 700-00B CustomCage Kit with Carrying contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|

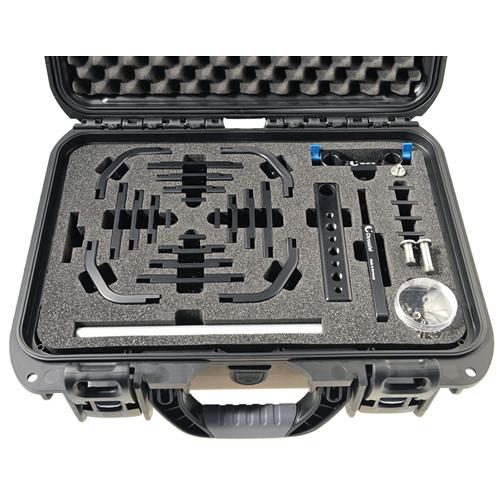

Product description The black 700-00B CustomCage with Carrying Case from Chrosziel is an all-round system and includes the 700-00-01 Baseplate LWS (Light Weight Support), 700-00-02 Carrying Handle, two 700-00-03 Pairs of Corners, two pairs of 700-00-05/-06/-07/-08 Locking Bars, and two pairs of 700-00-09 Extension Plates with a set of 20 M4 connecting screws. This cage kit also includes a 700-00-12 Flash Shoe, a 700-401-36 Accessory Bridge for 15mm rods, two 15mm rods, and a transport case.
This kit is used for assembling CustomCage camera cages used for a variety of cameras on the Chrosziel LWS. The kit can be customized for use with the cameras whose width or height range between 4.7" (120mm) and 7.5" (190mm). The included baseplate comes with 1/4 and 3/8" screws for mounting on the Chrosziel LWS and various threads for the tripod plate.
The included 4 black corners with a 90° angle feature 30° short and 60° long legs. These corners match with different camera shapes. Each included locking bar comes with 4 connecting screws. The 700-00-05 Locking Bar extends the cage by 2.76" (70mm), the 700-00-06 Locking Bar extends the cage by 1.97" (50mm), and the 700-00-07 Locking Bar extends the cage by 1.38" (35mm).
Each included extension plate is 0.95 x 1.18" in size and includes screws to connect each 2 locking bars. The accessory bridge for mounting 15mm rods comes with short and long 3/8" screws, an anti-twist insert, and a double-sided rod clamp. The included case features an additional slot for a mounted CustomCage. In the Box Chrosziel 700-00B CustomCage Kit with Carrying Case (Black) Base Plate (Spare) for CustomCage dyvczqqvdufertcdfucqsqdbveutvt Carrying Handle for CustomCage dyvczqqvdufertcdfucqsqdbveutvt 2 x 700-00-03 Pair of Corners (Black) 2 x 700-00-05 Pair of Locking Bars (Black) 2 x 700-00-06 Pair of Locking Bars (Black) 2 x 700-00-07 Pair of Locking Bars (Black) 2 x Locking Bars for CustomCage (Black, 1 Pair) 2 x Extension Plate for CustomCage (1 Pair) Flash Shoe for CustomCage 15mm Accessory Bridge for CustomCage 2 x 15mm Rod Transport Case Limited 1-Year Warranty Table of Contents
|
