User Manual for Chrosziel Aladin MK II Steadicam ENG Wireless Lens Control System Click to enlarge the picture
Contents of the user manual for the Chrosziel Aladin MK II Steadicam ENG
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel Aladin MK II Steadicam ENG contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description Wirelessly control your ENG lens's focus and iris from up to 300' away with the Chrosziel Aladin MK II Steadicam ENG Wireless Lens Control System in broadcast situations. Wireless control is important when the camera can't be physically interfered with or adjusted, like when it's on a stabilizer or on a crane. The Aladin system can also provide start/stop control for most cameras. This system supplies power cables which connect and use power from the Steadicam rig to power the unit as well as a 15mm rod mounted bracket for the Aladin receiver. The receiver can interface with and power Canon and Fujinon lenses using the included cables. The hand unit is upgradeable to support zoom control and other functions with additional modules. Features - Control of Broadcast Camera Functions (Video Return, Talkback, F/I/Z follow)
- Support of analogue and digital broadcast (lens) remote control equipment
- Support of OB vehicle RCP signals
- Support of digital serial protocol RS
- Set up with on board display (no hand unit needed)
- Adjustments are maintained during power loss
- Remote camera start / stop signal

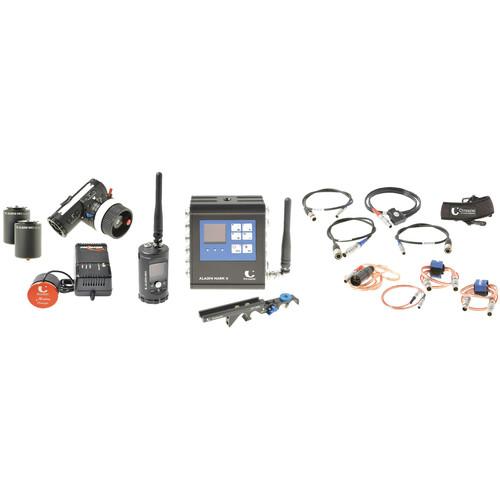

In the Box Chrosziel Aladin MK II Steadicam ENG Wireless Lens Control System AL2-FI Focus/Iris Module with VariLock Aladin MKII Transceiver Module MKII BNC Antenna 2 x NH Battery for Aladin Charger with Adapter for Aladin Right-Angle BNC Antenna Padded Neck Strap for Lens Control Transmitters (Black) MN-RMB1 Mounting Bracket for MagNum Receiver Cold Shoe Rail on Universal QuickFit Accessory Bridge 12V 2-Pin LEMO Power Cable 24V 3-Pin LEMO Power Cable 12V 4-Pin LEMO Power Cable 4-Pin XLR Power Cable D-Tap Power Cable ALADIN Mark II AUX1 Control Cable for Internal Focus/Iris/Zoom Servomotors of Fujinon Lens Aladin MKII Control Module for Canon Digital Lens HRS 20 (Lemo 7 Pin) Aladin MKII Combined Cable (Fujinon, AUX 1) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Aladin MK II Steadicam ENG Wireless Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel AL2-BCSTDKIT Specs | Channels | 3 (wireless zoom control requires an additional hand-unit module) | | Battery | Chrosziel NH Batteries | | Operating Frequency | 433 MHz | | Transmission Distance | Approximately 328' / 100 m |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
