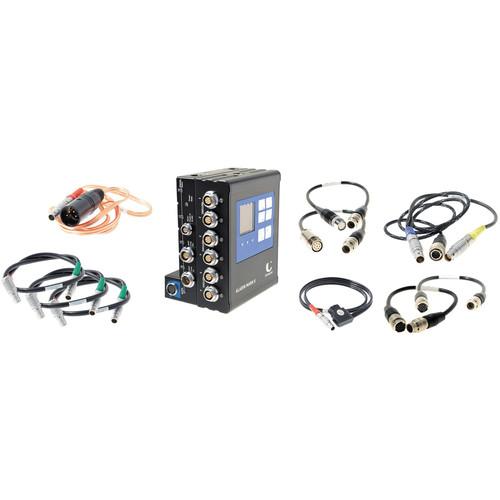

Product description The Chrosziel Aladin MKII 3-Axis Broadcast Lens Control Kit includes everything you need to drive focus, zoom, and iris motors for your cine lens using existing wired Fujinon or Canon demand controls. As broadcast workflows incorporate high-resolution cinema equipment, precise lens control using readily available industry-standard lens control equipment is an ideal solution. At the center of the system is the Aladin MKII control unit which can drive up to eight digital motors via 7-pin LEMO connections. Connection cables for the motors, demand controls, and power are included as well as the appropriate Aladin extension modules for connecting the included cables and mounting hardware for the control unit. See below for more information on the individual items included in this kit. - 7-Pin LEMO Digital Motor Cable for AL2/Magnum (39") Connect a motor to your Chrosziel Aladin or Magnum wireless follow focus receiver with the MOTD100 7-Pin LEMO Motor Cable. The motor cable is compatible with Heden M26VE, BTM, Scorpio SB92, and Preston DM2 digital motors.
- Aladin MKII Motor Control Unit The Chrosziel Aladin MKII Motor Control Unit can drive up to 8 digital lens motors via 7-pin LEMO connections. Using the 8 connections, advanced camera setups using multiple lenses can be easily controlled from a single source. An easily readable OLED display shows parameters and can be used for adjusting settings. Furthermore, the screen will operate in temperatures as low as -4°F. Data connections on the rear of the unit provide expansions for extending the connectivity even further using separately available expansion units. A right-angle antenna is included, allowing for flexible positioning on camera rigs.
- Aladin MKII Extension Interface Chrosziel's Aladin MKII Extension Interface is a base unit for holding up to 5 universal extension modules.
- Aladin MKII Extension Demand Chrosziel's Aladin MKII Extension Demand allows the connection of digital and analogue demand units (zoom and focus).
- Aladin Extension Module Motor/LensPort Use the Chrosziel Aladin Extension Module Motor/LensPort to increase the functionality of your Chrosziel lens control system. This extension module connects to the MagNum receiver using the proprietary hardware interface and provides one 7-pin LEMO motor connection and one 12-pin Hirose LensPort connection for communicating with broadcast lens servos using separately available cables.
- 12-Pin Hirose Aladin Lens Port to Camera Lens Cable Use the Chrosziel 12-Pin Hirose Aladin Lens Port to Camera Lens Cable to connect the Aladin interface module to a camera lens servo.
- Aladin MKII Connection Cable Chrosziel's Aladin MKII Connection Cable allows the connection between Aladin MKII receiver and Aladin extension interface using lemo 10 pin and lemo 8 pin jack.
- Adapter Cable for Canon 6-Pin Focus to Aladin2 Extension Module The Chrosziel Hirose 6-pin to Hirose 20-pin Adapter Cable is used to connect the Canon focus demand to the Aladin2 Extension Module.
- Adapter Cable for Canon 8-Pin Zoom to Aladin2 Extension Module The Chrosziel Hirose 8-pin to Hirose 20-pin Adapter Cable is used to connect the Canon zoom demand to the Aladin2 extension module.
- Adapter Cable for Fujinon Lenses & Aladin Mark II Lens Controller The Chrosziel Adapter Cable connects a Fujinon Focus digital demand unit to the Aladin Mark II entension interface. It features a Hirose 12-pin connector and a Hirose 20-pin connector.
- Adapter Cable for Fujinon Analog Zoom Servo Motor The Chrosziel Adapter Cable connects the extension module of the ALADIN Mark II Lens Control System to a Fujinon Analog Zoom Servo Motor. It features a Hirose 12-pin connector at one end and a Hirose 20-pin connector at the other end.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- Cold Shoe Rail on Universal QuickFit Accessory Bridge This Chrosziel Cold Shoe Rail on the Universal QuickFit Accessory Bridge is for 15 and 19mm diameter rods, and for mounting of devices with hot or cold shoe adapters, such as MagNum lens remote control and ALADIN MK II Broadcast for UHD TV setup.
The Accessory Bridge has on its vertical side a 1/4"-20 and a 3/8"-16 thread as well as four 1.4"-20 threads on the horizontal side. In the middle is a clamp to hold support studs for lenses. The Bridge clamps quickly, comfortably and safely on all industry standard rods with 15 and 19mm diameter. The Cold Shoe Rail comes with two 1/4"-20 screws and fits on to the Chrosziel CustomCage and many other supporting systems. - D-Tap Power Cable for Aladin MKII Receiver With the Chrosziel D-Tap Power Cable for Aladin MKII Receiver you can power your Aladin MKII receiver from a D-Tap power source.
- 4-pin XLR Power Cable for Aladin MKII Receiver With the Chrosziel 4-pin XLR Power Cable for Aladin MKII Receiver you can power your Aladin MKII receiver from a 12/24V 4-pin XLR power source.
In the Box Bundle Items 3 x 7-Pin LEMO Digital Motor Cable for AL2/Magnum (39") zscrzxbvwcdyx Aladin MKII Motor Control Unit - Angled Antenna for ALADIN and DigiFox Receivers
Aladin MKII Extension Interface Aladin MKII Extension Demand Aladin Extension Module Motor/LensPort 12-Pin Hirose Aladin Lens Port to Camera Lens Cable Aladin MKII Connection Cable Adapter Cable for Canon 6-Pin Focus to Aladin2 Extension Module Adapter Cable for Canon 8-Pin Zoom to Aladin2 Extension Module zscrzxbvwcdyx Adapter Cable for Fujinon Lenses & Aladin Mark II Lens Controller Adapter Cable for Fujinon Analog Zoom Servo Motor zscrzxbvwcdyx MN-RMB1 Mounting Bracket for MagNum Receiver Cold Shoe Rail on Universal QuickFit Accessory Bridge - Universal QuickFit Accessory Bridge
D-Tap Power Cable for Aladin MKII Receiver 4-pin XLR Power Cable for Aladin MKII Receiver Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Aladin MKII 3-Axis Broadcast Lens Control Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 7-Pin LEMO Digital Motor Cable for AL2/Magnum (39")
| Connector 1 | 7-pin LEMO | | Connector 2 | Angled 7-pin LEMO | | Length | 39" / 100cm | | | | Box Dimensions (LxWxH) | 6.4 x 6.1 x 0.9" | - Aladin MKII Motor Control Unit
| Connections | Motor Control: 8 x 7-pin LEMO
Antennal: 1 x BNC
Auxiliary: 1 x 10-pin LEMO, 1 x 7-pin LEMO
Power/Camera: 1 x 2-pin LEMO, 1 x 5-pin LEMO
USB: 1 x USB Type A, 1 x USB mini-B | | Mounting | 2 x 3/8"-16 thread | - Aladin MKII Extension Interface
| Compatibility | Compatible with Aladin MKII | - Aladin MKII Extension Demand
| Compatibility | Compatible with Aladin MKII | - Aladin Extension Module Motor/LensPort
| Connectors | 1 x MagNum receiver interface 1 x LEMO 7-pin (motor connection)
1 x Hirose 12-pin (servo connection) | - 12-Pin Hirose Aladin Lens Port to Camera Lens Cable
| Connector 1 | 12-pin Hirose | | Connector 2 | 12-pin Hirose | | Length | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 7.45 x 5.15 x 0.95" | - Aladin MKII Connection Cable
| Compatibility | Compatible with Aladin MKII | - Adapter Cable for Canon 6-Pin Focus to Aladin2 Extension Module
| Connector | Hirose 6-pin to Hirose 20-pin | | | | Box Dimensions (LxWxH) | 8.2 x 6.5 x 0.3" | - Adapter Cable for Canon 8-Pin Zoom to Aladin2 Extension Module
| Connector | Hirose 8-pin to Hirose 20-pin | | | | Box Dimensions (LxWxH) | 8.25 x 6.3 x 0.3" | - Adapter Cable for Fujinon Lenses & Aladin Mark II Lens Controller
| Connector | 1 x Hirose 12-pin
1 x Hirose 20-pin | - Adapter Cable for Fujinon Analog Zoom Servo Motor
| Connectors | 1 x Hirose 12-pin connector
1 x Hirose 20-pin connector | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - Cold Shoe Rail on Universal QuickFit Accessory Bridge
| Compatibility | 15 and 19 mm rods | - D-Tap Power Cable for Aladin MKII Receiver
| Connector 1 | D-Tap | | Connector 2 | 2-pin LEMO | - 4-pin XLR Power Cable for Aladin MKII Receiver
| Connector 1 | 4-pin XLR | | Connector 2 | 2-pin LEMO |
