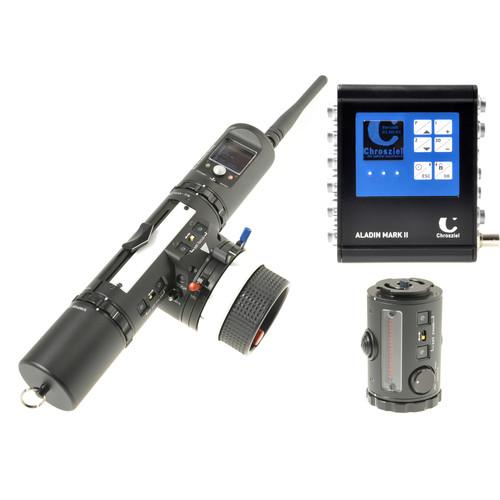

User Manual for Chrosziel Aladin MKII 3-Axis Hand Unit Kit with Motor Control Unit Click to enlarge the picture
Contents of the user manual for the Chrosziel Aladin MKII 3-Axis Hand Unit
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel Aladin MKII 3-Axis Hand Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel Aladin MKII 3-Axis Hand Unit Kit with Motor Control Unit is a great starting point for building out an advanced lens control system. The Aladin MKII hand unit is constructed from the central focus/iris module which features hard stops on the handwheel, a zoom module, and the transceiver module. Two batteries are included to power the hand unit. The hand unit can be further expanded for greater control with separately available modules. For the camera side, the Aladin MKII Motor Control Unit can drive up to eight motors, allowing for advanced multicamera and 3D setups, if necessary. See below for more information on the individual items included in this kit. - Aladin MKII Transceiver Module MKII Chrosziel's Aladin MKII Transceiver Module MKII has a display and comes with an antenna.
- AL2-FI Focus/Iris Module with VariLock The Chrosziel AL2-FI Focus/Iris Module with VariLock allows you to precisely adjust focus and iris when used with the Aladin lens control system.
- Focus Scale Ring for Aladin, Genio, Fox, and MagNum Handwheels This Chrosziel Focus Scale Ring attaches to the handwheel of the Chrosziel Aladin, Genio, Fox, and MagNum lens control systems and lets you make markings and erase them.
- Aladin MKII Zoom Module Connect the Chrosziel Aladin MKII Zoom Module to your hand unit to gain precise control over your zoom lenses. The precise mini joystick provides enough resistance for exacting zoom actuation. Set the speed knob to adjust the maximum speed allowed by the joystick. For further precision, use the Set Zoom controls to limit the zoom range.
- NH Battery for Aladin Chrosziel's NH Battery for Aladin is a rechargeable battery for Aladin.
- Charger with Adapter for Aladin Chrosziel's Charger with Adapter for Aladin is a battery charger with an adapter for charging Aladin batteries.
- Aladin MKII Motor Control Unit The Chrosziel Aladin MKII Motor Control Unit can drive up to 8 digital lens motors via 7-pin LEMO connections. Using the 8 connections, advanced camera setups using multiple lenses can be easily controlled from a single source. An easily readable OLED display shows parameters and can be used for adjusting settings. Furthermore, the screen will operate in temperatures as low as -4°F. Data connections on the rear of the unit provide expansions for extending the connectivity even further using separately available expansion units. A right-angle antenna is included, allowing for flexible positioning on camera rigs.
In the Box Bundle Items Aladin MKII Transceiver Module MKII czxbscdw AL2-FI Focus/Iris Module with VariLock Focus Scale Ring for Aladin, Genio, Fox, and MagNum Handwheels Aladin MKII Zoom Module 2 x NH Battery for Aladin Charger with Adapter for Aladin Aladin MKII Motor Control Unit czxbscdw - Angled Antenna for ALADIN and DigiFox Receivers
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Aladin MKII 3-Axis Hand Unit Kit with Motor Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Aladin MKII Transceiver Module MKII
| Transmission Frequency | 433-434 MHz | | Compatibility | Compatible with Aladin MKII | - Focus Scale Ring for Aladin, Genio, Fox, and MagNum Handwheels
| | | Box Dimensions (LxWxH) | 3.35 x 2.9 x 0.7" | - NH Battery for Aladin
| Compatibility | Compatible with Aladin | | | | Box Dimensions (LxWxH) | 4.8 x 3.3 x 2.2" | - Charger with Adapter for Aladin
| Compatibility | Compatible with Aladin Batteries | - Aladin MKII Motor Control Unit
| Connections | Motor Control: 8 x 7-pin LEMO
Antennal: 1 x BNC
Auxiliary: 1 x 10-pin LEMO, 1 x 7-pin LEMO
Power/Camera: 1 x 2-pin LEMO, 1 x 5-pin LEMO
USB: 1 x USB Type A, 1 x USB mini-B | | Mounting | 2 x 3/8"-16 thread | - AL2-FI Focus/Iris Module with VariLock
- Aladin MKII Zoom Module
