Product description The Aladin2 (3D) 2+ Wireless Lens Control System for Focus/Iris and 3D from Chrosziel allows a camera assistant to control lens settings on ENG and cinema cameras during shoots where the camera itself is inaccessible or shouldn't be touched, such as when mounted on a Steadicam. Depending on the lens system being used, the Aladin2 can control a number of settings, including focus, iris, record start/stop, power on/off, as well as 3D convergence and IA (inter-axial distance).

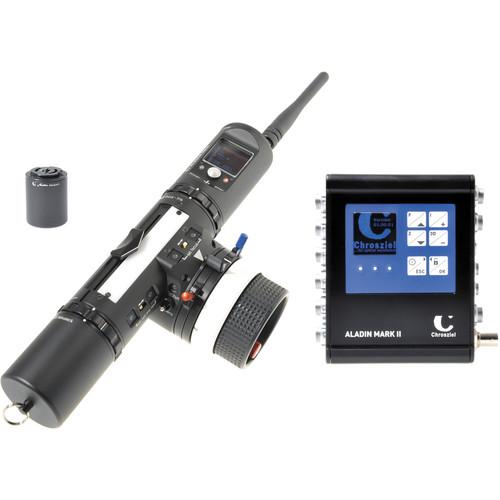

The Aladin2 features two key pieces of hardware: the hand unit (transmitter) and the motor controller (receiver). The hand unit features a follow focus style wheel with adjustable tension that can be configured to operate focus, iris, zoom, and more. It powers from a rechargeable NiMH battery, of which two are included. The motor controller features motor outputs allowing a single unit to control up to eight separate operations. The motor controller is designed to power locally from the camera itself or another nearby DC source and will accept power sources of 10 to 34V.
The Aladin2 supports automatic lens calibration at the beginning of the shoot and will remember the most recent settings even if the transmitter is powered down and the battery removed. Settings are changed through a menu system that features joystick navigation, and the OLED display screen can withstand temperatures as low as -4°F. - Control signals are transmitted as digital data packets in the 434 or 869 MHz band with 18-bit resolution
- Suitable for many motors with digital incremental encoders, such as Heden M26VE, Scorpio SB92, Preston DM2, and Betz Tools BTM7
- Adjustable back-lash compensation system designed to eliminate play
- Controls 8 motors in S3D mode, and will synchronously operate two cameras' iris, focus, and zoom setting. Additionally, automates the rig settings for angulation (convergence), IA (inter axial distance), and is able to communicate with the Sony MPE200 Multi Image Processor
- Controls digital Canon and Fujinon lens motors directly through the two auxiliary ports; and can operate two lenses synchronously if required
- USB port for metadata recording, software updates, and lens- and rig-data handling
- Two serial interfaces for PC interaction
- Provides dimming control for the Aladin Light Source (AL-LS) and Colibri, and the DMX dimmer/receiver unit FD-400E
- Able to transmit through thick walls interior wall as well as metal structures when used outdoors. Offers better performance than systems operation in the GHz-range -- maximum transmission distance varies depending on the structural conditions of the set
- Provides ON/OFF and start/stop recording function when used in conjunction with compatible cameras
- The "Electronic Gear" feature allows the operator to define the relationship between user input and the reaction at the lens (spreading)
- Non-volatile memory retains a record of the last settings so they will be readily available the next time the Aladin is used
- The motor controller (receiver) supports powering from a wide range of DC sources, ranging from 10 to 34 V
- Power is stabilized and can be adjusted in five steps. Plus it is still possible to get powerful performance from the motors for a low-power source. The torque will be automatically adjusted during the calibration step
- With a modular design, each individual function can be combined into one transmitter through simple assembly. Here, too, all of the last individual settings are saved
- Reverse direction of the motor rotation is possible on both the hand-units (transmitters) and on the motor controller (receiver)
- An LED column shows the position of the zoom
- The hand unit features low energy consumption, and a single battery is estimated to last an entire shooting day
- The transmitter provides 16-channels, which can be selected at the push of a button. The RF Spectrum analyzer helps you find the best channel for transmission, and gives optical feedback to ensure both units are set to the same channel
- Adjustable fluid damping for the focus hand wheel
- Emergency Feature: Wired transmission is possible by connecting the transmitter and receiver using a standard video cable with BNC plugs
In the Box Chrosziel Aladin2 (3D) 2+ Wireless Lens Control System for Focus/Iris and 3D RF Transceiver Module with Display & Antenna Focus-Iris Module with VariLock Scale 2 x NiMH Battery Charger Receiver with Antenna for Controlling up to 8 Motor Channels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Aladin2 2 Wireless Lens Control System for Focus Iris and 3D in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel AL2-3-403 Specs | Connectors | 8 x Motor controller port
1 x USB type A female
1 x USB type B mini female
2 x Serial interfaces 1 x LTC (time code) input
1 x Camera start/stop
1 x BNC port for antenna or BNC control cable | | Power Requirements | Transmitter
Rechargeable NiMH battery
Receiver
10 to 34 VDC | | Operating Temperature | Minimum: -4°F / -20°C
Maximum: Not specified by manufacturer | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
