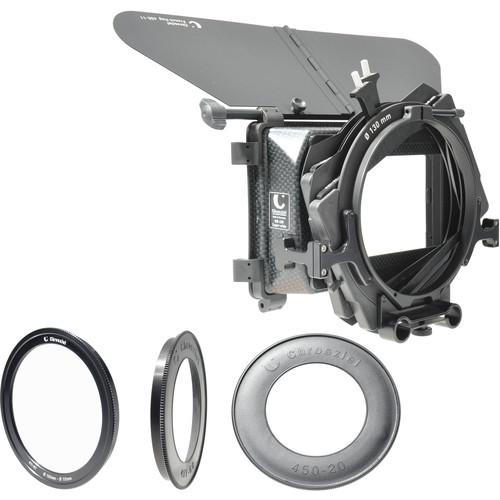

User Manual for Chrosziel Baseplate Kit for Sony FS7 with Matte Box Click to enlarge the picture
Contents of the user manual for the Chrosziel Baseplate Kit for Sony FS7
- Product category: Camcorder Supports & Rigs Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Camcorder Supports & Rigs
|
User manual for the Chrosziel Baseplate Kit for Sony FS7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description Chrosziel's Matte Box and Baseplate Kit is an expandable studio and shoulder rig for the Sony FS7 camcorder. Included is a 15mm LWS baseplate with 15mm rods, which is height-adjusted and shaped for the FS7, so it can fit properly with the 450W-20 Super-Wide Matte Box. The baseplate also has a built-in shoulder pad for handheld filming, if you choose add handheld shooting accessories in the future. The included Super Wide matte box includes rubber donut inserts to take a variety of stills and cine lenses. A top flag to prevent ghosting and lens flares is also included with the matte box. While functional on its own, this rig can serve as a jumping-off point to mounting other optional accessories such as follow focuses, lens supports, and handles, to create your own custom rig that fits your workflow. See below for more information on the individual items. - C-411-68 Flexi Insert Ring (for 130mm Clamp) The Chrosziel C-411-68 Flexi Insert Ring (for 130mm Clamp) is a light-prevention ring that seamlessly fits into the 130mm clamp of the 450W-20 and 456-20/456-30 rod-mounted matte boxes and covers lenses with diameters ranging from 95-125mm.
- 130 to 110mm Step-Down Ring The Chrosziel 130 to 110mm Step-Down Ring fits into the 130mm clamp adapter on the MB-456 and MB450W matte boxes. The ring creates a 110mm thread for the wide choice of light prevention rings.
- Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) The Chrosziel Flexi-Ring Flexible Step-Down Ring is a 110 to 75-98mm adjustable step-down ring. The ring is designed to work with the MB-450 matte box series and will fit a variety of wide angle attachment lenses.
- Compatible with MB-450 matte box system for wide angle attachment lenses between 75-98mm.
- Flexible material makes it easily adjustable.
- Lightweight Shoulder Support for Sony FS7 with Rosettes & Tripod Adapter Plate The 401-FS7 Lightweight Shoulder Support for Sony FS7 from Chrosziel is a slim baseplate, shoulder mount, and rod support system for the Sony PXW-FS7. It features an ergonomic shoulder pad, which is adjustable forwards and backwards for personalized comfort, and a V-lock mounting interface for attachment to optional tripod plates, such as the Sony VCT-14. ARRI-compatible rosettes on each side of the Lightweight Support are provided for attaching the FS7's right handle and an optional left-sided rosette handle or accessory. Additionally, there are LWS 15mm rod ports that accept a pair of included 8-inch long rods, which are useful for attaching accessories such as a follow focus or matte box. For rear 15mm rod support, a separately available rear rod clamp can be added.
- Key Features
-
- 15mm baseplate
- Adjustable shoulder pad
- ARRI-compatible Hirth rosettes for handgrip attachment
- 8" 15mm rod pair included, threaded to accept optional extension rods
- Multiple screw points for secure camera attachment
- V-lock for mounting to v-lock tripod plates
- Optional cheese plate adapter
- Optional rear rod clamp
- Lightweight at 26.3 oz
- MB 450W Super Wide Matte Box
In the Box Bundle Items MB 450W Super Wide Matte Box rrxwbytcafwtru C-411-68 Flexi Insert Ring (for 130mm Clamp) 130 to 110mm Step-Down Ring Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) Lightweight Shoulder Support for Sony FS7 with Rosettes & Tripod Adapter Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Baseplate Kit for Sony FS7 with Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - C-411-68 Flexi Insert Ring (for 130mm Clamp)
| | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 0.3" | - 130 to 110mm Step-Down Ring
| Compatibility | Chrosziel MB-456 and MB-450W | | Weight | 2.3 oz / 66 g | | | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 1.0" | - Flex-Ring Flexible Step-Down Ring (110 to 75-98mm)
| Front Lens Diameter | 110mm | | Rear Mount | 75-98mm | | | | Box Dimensions (LxWxH) | 5.6 x 4.7 x 0.6" | - Lightweight Shoulder Support for Sony FS7 with Rosettes & Tripod Adapter Plate
| Dimensions | With Rods: 10.4 x 4.5 x 1.6" / 26.5 x 11.5 x 4.0 cm
Without Rods: 16.9 x 4.5 x 1.6" / 43.0 x 11.5 x 4.0 cm | | Weight | 26.3 oz / 745 g | | | | Box Dimensions (LxWxH) | 10.7 x 6.8 x 2.8" | - MB 450W Super Wide Matte Box
