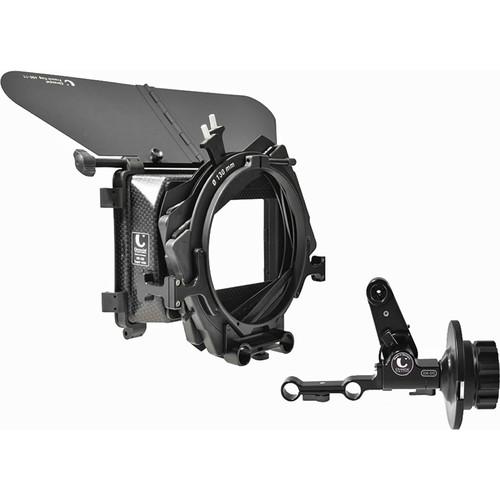

Product description Chrosziel's Matte Box and Baseplate Kit is an expandable studio and shoulder rig for the Sony FS7 camcorder. Included is a 15mm LWS baseplate with 15mm rods, which is height-adjusted and shaped for the FS7, so it can fit properly with the 450W-20 Super-Wide Matte Box. The baseplate also has a built-in shoulder pad for handheld filming, if you choose add handheld shooting accessories in the future. The included Super Wide matte box includes rubber donut inserts to take a variety of stills and cine lenses. A top flag to prevent ghosting and lens flares is also included with the matte box. To round out the rig, a follow focus is also included along with the appropriate drive gears to use them with standard mod 0.8 and stills lenses. While functional on its own, this rig can serve as a jumping-off point to mounting other optional accessories such as lens supports, motors, and handles, to create your own custom rig that fits your workflow. See below for more information on the individual items. - C-411-68 Flexi Insert Ring (for 130mm Clamp) The Chrosziel C-411-68 Flexi Insert Ring (for 130mm Clamp) is a light-prevention ring that seamlessly fits into the 130mm clamp of the 450W-20 and 456-20/456-30 rod-mounted matte boxes and covers lenses with diameters ranging from 95-125mm.
- Lightweight Shoulder Support for Sony FS7 with Rosettes & Tripod Adapter Plate The 401-FS7 Lightweight Shoulder Support for Sony FS7 from Chrosziel is a slim baseplate, shoulder mount, and rod support system for the Sony PXW-FS7. It features an ergonomic shoulder pad, which is adjustable forwards and backwards for personalized comfort, and a V-lock mounting interface for attachment to optional tripod plates, such as the Sony VCT-14. ARRI-compatible rosettes on each side of the Lightweight Support are provided for attaching the FS7's right handle and an optional left-sided rosette handle or accessory. Additionally, there are LWS 15mm rod ports that accept a pair of included 8-inch long rods, which are useful for attaching accessories such as a follow focus or matte box. For rear 15mm rod support, a separately available rear rod clamp can be added.
- Key Features
-
- 15mm baseplate
- Adjustable shoulder pad
- ARRI-compatible Hirth rosettes for handgrip attachment
- 8" 15mm rod pair included, threaded to accept optional extension rods
- Multiple screw points for secure camera attachment
- V-lock for mounting to v-lock tripod plates
- Optional cheese plate adapter
- Optional rear rod clamp
- Lightweight at 26.3 oz
- Rear Rod Clamp for PXW-FS7 LWS Baseplate This Chrozsiel Rear Rod Clamp allows you to attach 15mm rods at the rear of the 401-FS7 baseplate.
- StudioRig Cine Follow Focus (Single Sided) The Chrosziel StudioRig Cine is a professional single-sided follow focus for precise focus actuation on high-end cinema lenses. The single-sided design of this StudioRig Cine features a low-profle rod-clamp form factor for fitting underneath large lenses. However, as it is only single-sided, the entire follow focus must be reattached to adjust focus from the other side of the lens. Once the follow focus is clamped down on the rods, swing the arm to engage the drive gear to the lens. Drive gears are available separately from the StudioRig unit. A white dry-erase marking disk and focus crank are included with the follow focus.
- Focus Drive Gear for Studio Rig Follow Focus Systems (0.8, 44 Teeth) Compatible with Studio Rig follow focus systems, this mod 0.8 Follow Focus Drive Gear from Chrosziel is 36.8mm in diameter, has 44 teeth, and is 8mm thick. It is ideal for use with compact cine-style prime lenses.
- 16mm-Wide Cine Follow Focus Drive Gear (0.8) This Chrosziel Follow Focus Drive Gear is compatible with Studio Rig series follow focuses. It is 16mm-wide to compensate for lens barrel travel.
- Focus Drive with Friction Gear The Focus Drive with Friction Gear from Chrosziel is a 34mm-diameter, friction-based lens gear for use with the StudioRig Follow Focus. The gear has a smooth rubber tread. Friction drive is useful for lenses which don't have fixed lens gears.
- MB 450W Super Wide Matte Box
In the Box Bundle Items MB 450W Super Wide Matte Box tftfzybatftqwytbaxbvrzcwu C-411-68 Flexi Insert Ring (for 130mm Clamp) Lightweight Shoulder Support for Sony FS7 with Rosettes & Tripod Adapter Plate Rear Rod Clamp for PXW-FS7 LWS Baseplate StudioRig Cine Follow Focus (Single Sided) Focus Drive Gear for Studio Rig Follow Focus Systems (0.8, 44 Teeth) 16mm-Wide Cine Follow Focus Drive Gear (0.8) Focus Drive with Friction Gear Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Baseplate Kit for Sony FS7 with Matte Box and Cine Follow Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - C-411-68 Flexi Insert Ring (for 130mm Clamp)
| | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 0.3" | - Lightweight Shoulder Support for Sony FS7 with Rosettes & Tripod Adapter Plate
| Dimensions | With Rods: 10.4 x 4.5 x 1.6" / 26.5 x 11.5 x 4.0 cm
Without Rods: 16.9 x 4.5 x 1.6" / 43.0 x 11.5 x 4.0 cm | | Weight | 26.3 oz / 745 g | | | | Box Dimensions (LxWxH) | 10.7 x 6.8 x 2.8" | - Rear Rod Clamp for PXW-FS7 LWS Baseplate
| | | Box Dimensions (LxWxH) | 3.7 x 0.9 x 0.6" | - StudioRig Cine Follow Focus (Single Sided)
- Focus Drive Gear for Studio Rig Follow Focus Systems (0.8, 44 Teeth)
| Gear Standard | 0.8 mod (32 pitch) | | Number of Teeth | 44 | | Dimensions | Diameter: 1.45" / 36.8 mm
Width: 0.31" / 8 mm | | | | Box Dimensions (LxWxH) | 3.05 x 1.7 x 1.0" | - 16mm-Wide Cine Follow Focus Drive Gear (0.8)
| Gear Standard | MOD: 0.8
Pitch: 32
Teeth: 40 | | Dimensions | Diameter: 1.32" / 33.6 mm
Width: 0.62" / 16 mm | | | | Box Dimensions (LxWxH) | 1.3 x 1.3 x 1.3" | - Focus Drive with Friction Gear
| Compatibility | For StudioRig Follow Focus | | Diameter | 34 mm | - MB 450W Super Wide Matte Box
