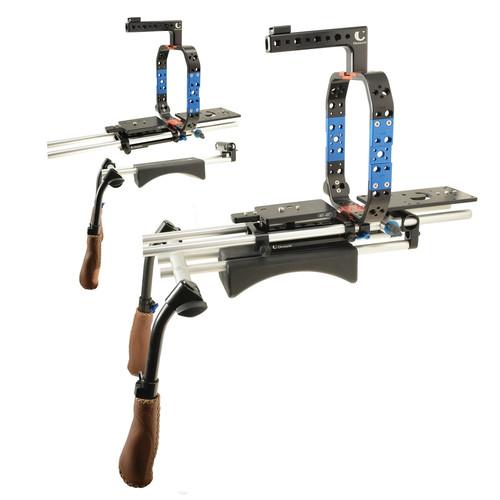

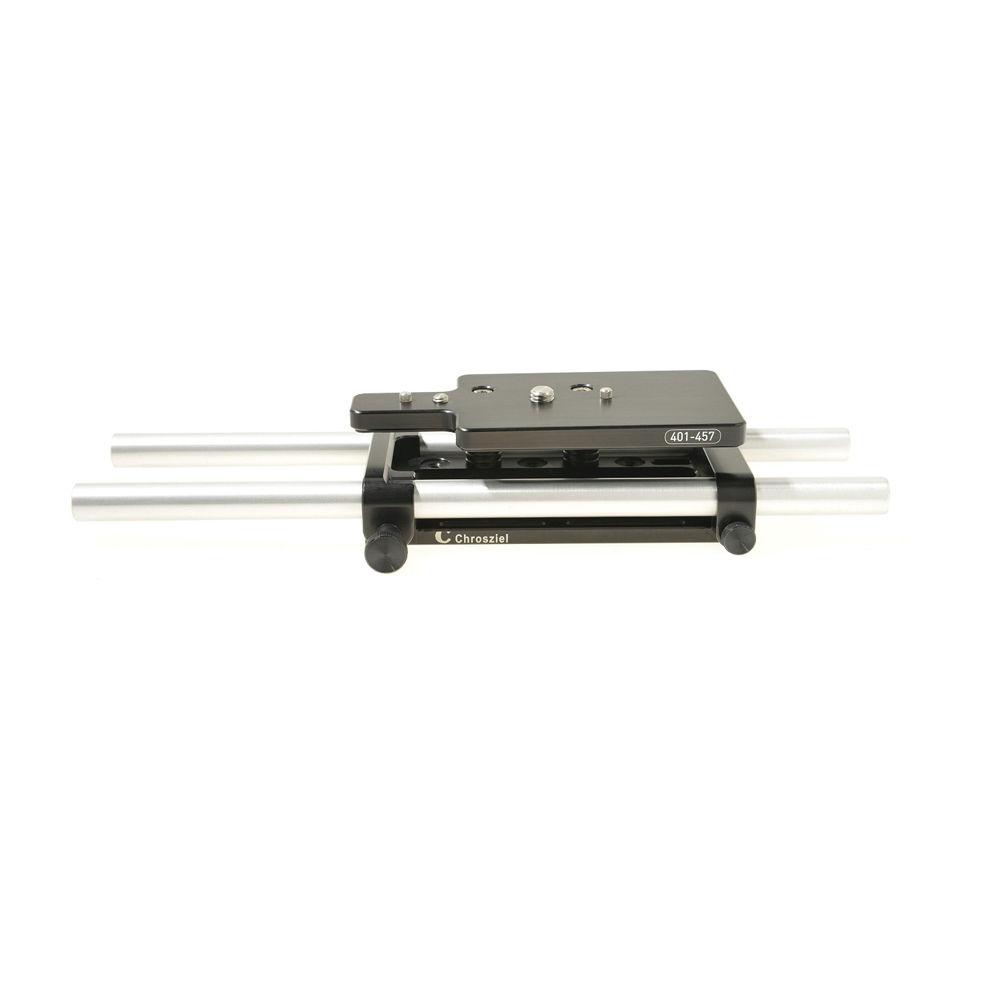

Product description The Cage Recorder Kit for Sony NEX-FS700 Camera by Chrosziel is designed to carry the Sony NEX-700 Camera on the shoulder. The kit is comprised of a 401-457 LWS light weight support 15 HD, a 401-BP15B mounting plate for battery holder, a 3050-02 MultiPad 15 straight shoulder pad, a 401-83-190 pair of 15mm extension rods, a 403-30 pair of leather handles, a 403-30 bar with rosettes for use with the handles, and a 700-37 custom cage for the Sony FS700 camera. - Lightweight Support for Sony NEX-FS700 This Lightweight Support by Chrosziel is custom designed for the Sony the NEX-FS700 camera. The lightweight support comes with two 12" rods with a diameter of 15mm. It features double rod guidance and clamps.

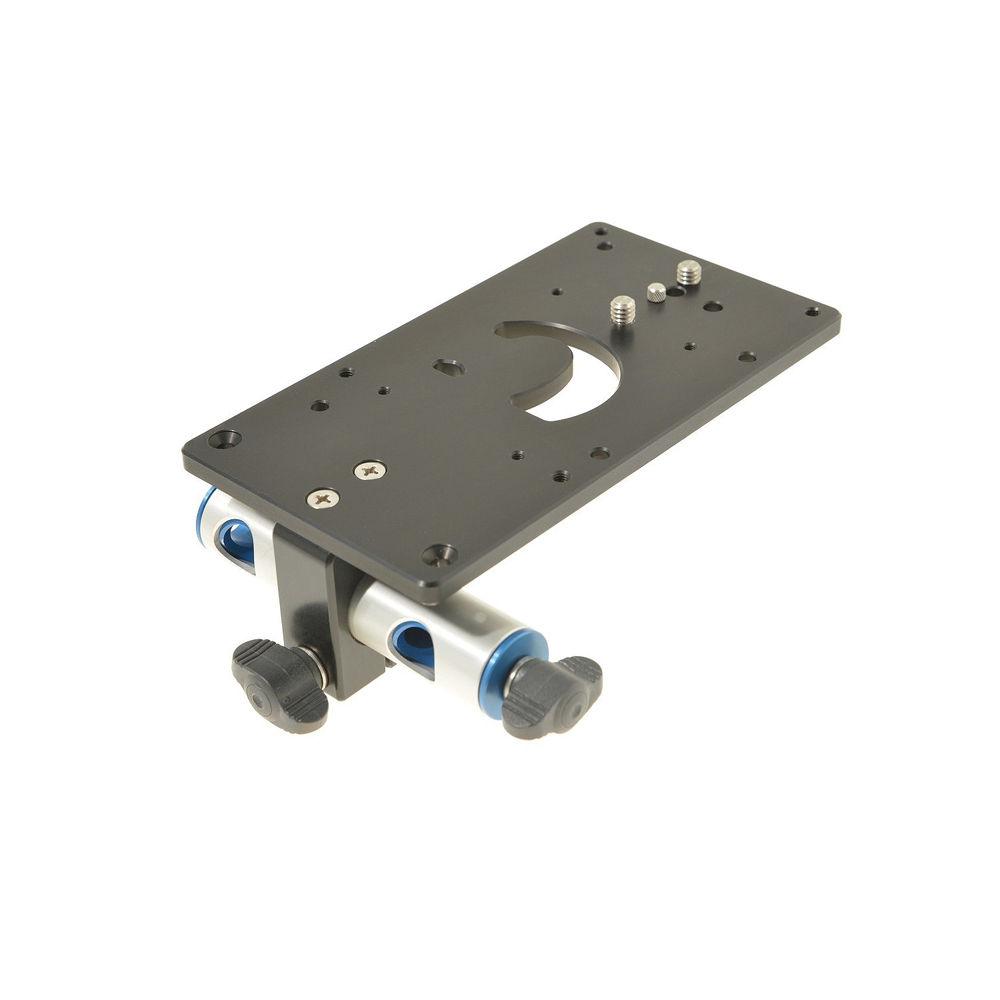

- 15mm Battery Mounting Plate The Battery Mounting Plate (15mm) from Chrosziel is an adjustable angle mounting plate for battery holders; it fits on 15mm rods. This universal plate has holes and threads for Anton/Bauer Gold Mount, IDX V-Plate, and PAG-Lok battery mounts. The mounting plate can also fit Sony's recorder FS-700.

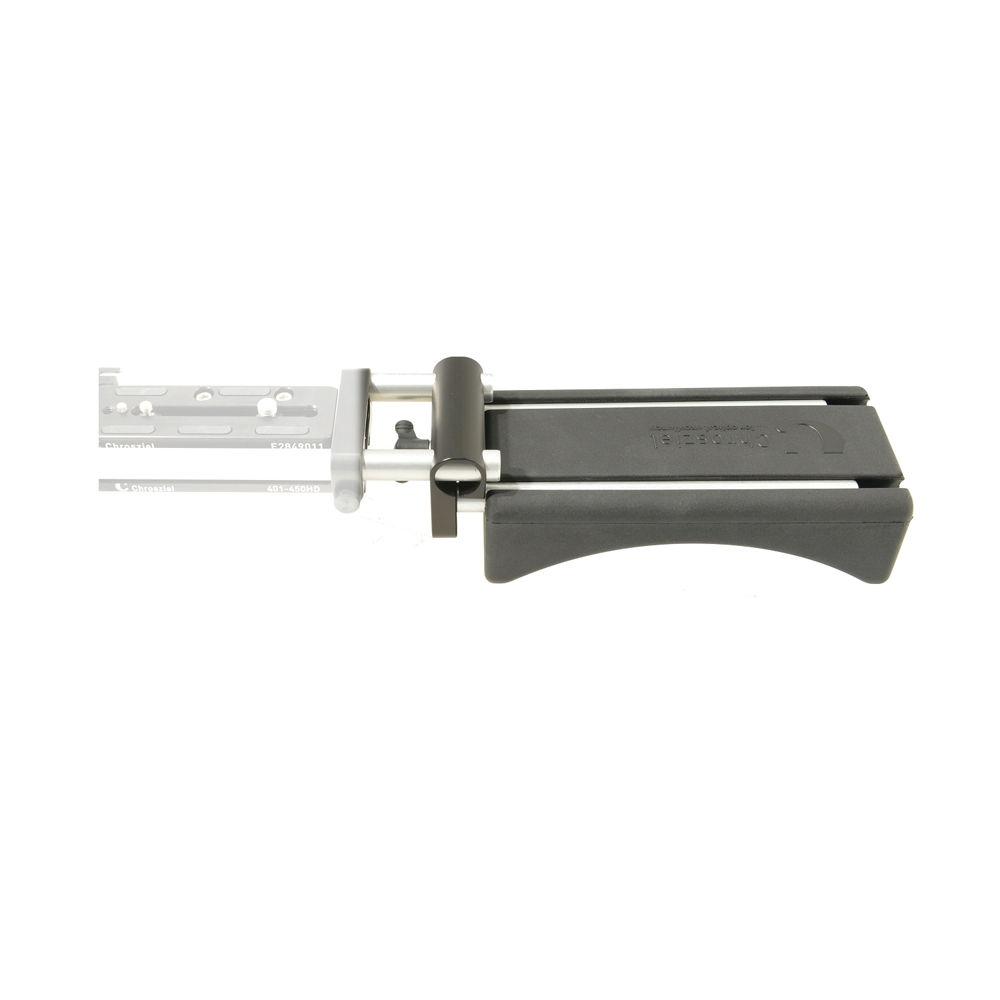

- MultiPad 15 Straight Shoulder Pad The MultiPad 15 Straight Shoulder Pad from Chrosziel is a cushioned shoulder pad for use with 15mm rod support systems. It consists of a rod bracket with 15mm rods, 7.4" (190mm) in length, which the shoulder pad slides on to. The rod bracket attaches to 15mm rods, letting you place the shoulder pad behind or underneath your camera.

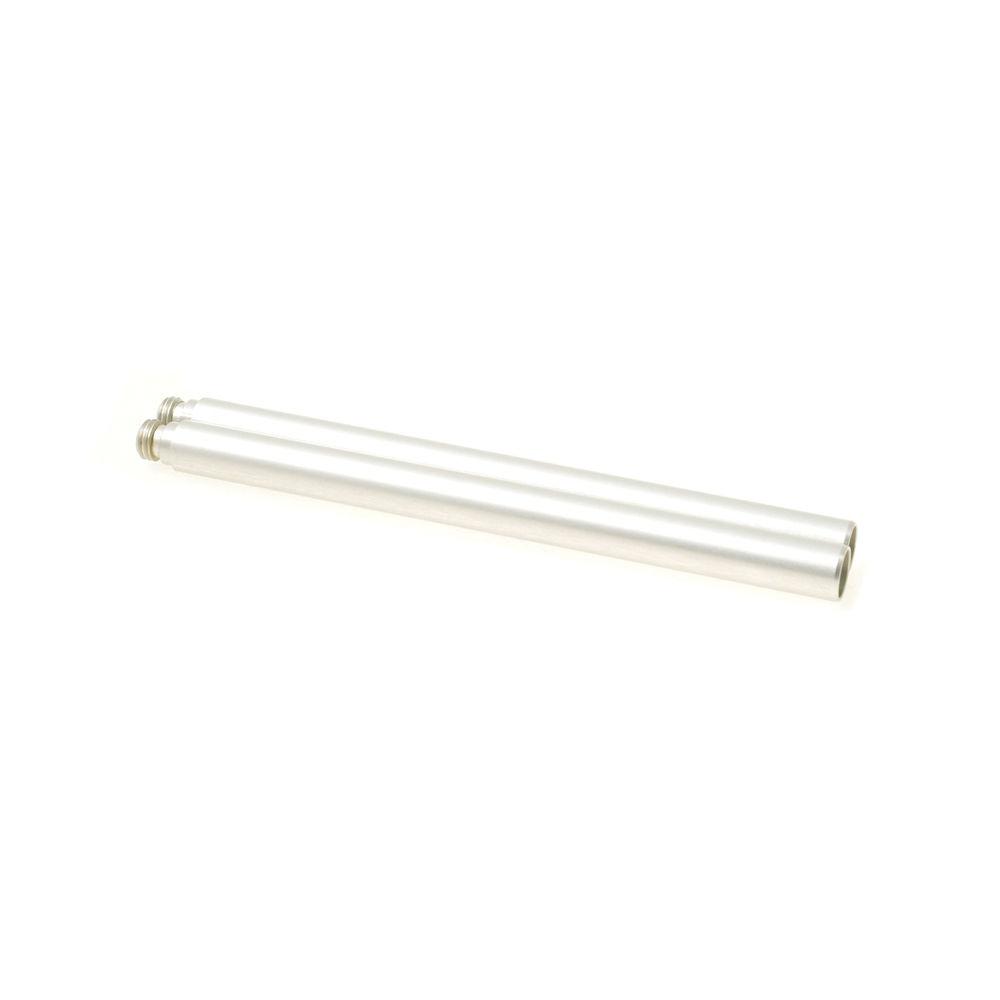

- 15mm Pair of Extension Rods (7.5") Chrosziel's 15mm Pair of Extension Rods (7.5") can be used to add range to any 15mm support rig. These high-strength aluminum rods allow for larger matteboxes and additional accessories, such as lights or follow focus, to be used on-camera.

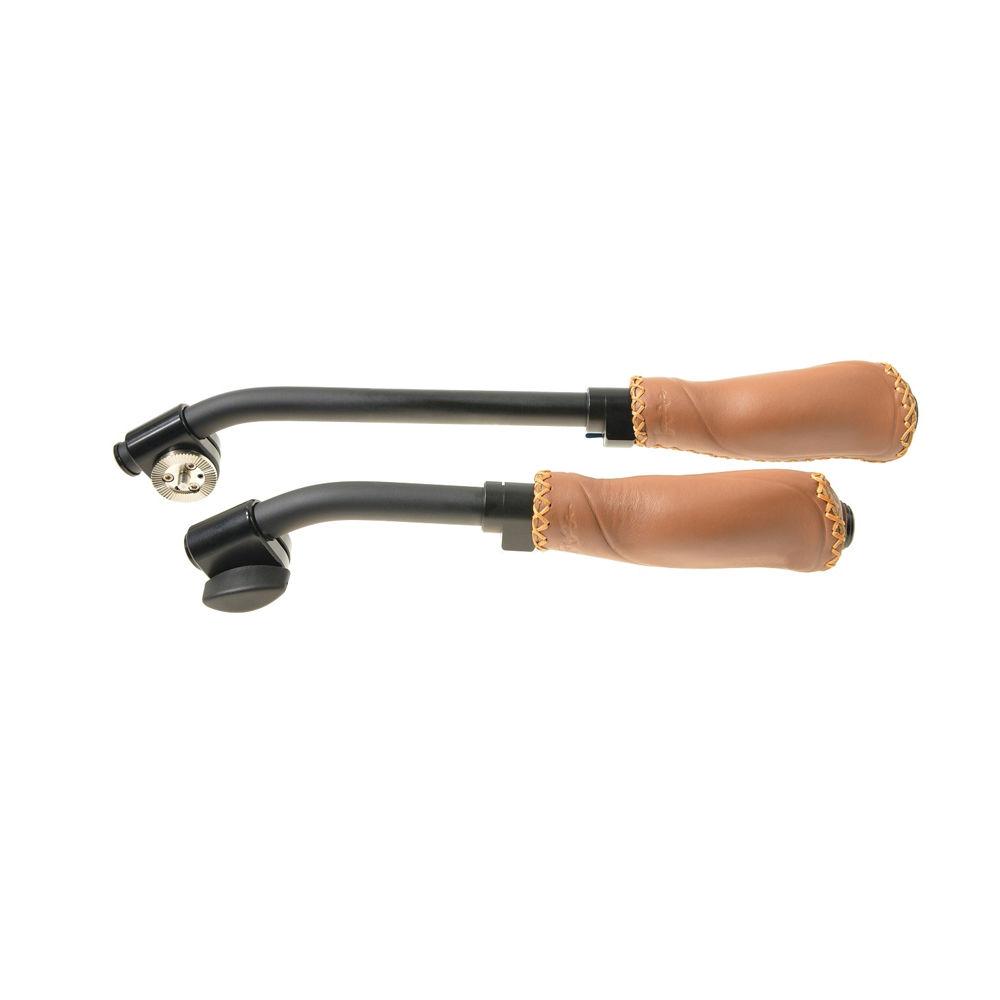

- Leather Handle Set for Camera and Support (Pair) The pair of Leather Handles for Camera and Support from Chrosziel are retractable and swiveling handles. Both units can attach to all cameras and supports with the industry standard rosettes with Hirth-spacing and center M6 screw. The hand piece position may be varied between 240 to 400mm on the shaft with a diameter of 18mm. After taking off the cap on the rosette end you can turn the rosette around for left or right hand use. The set is factory assembled with right and left handle configuration.
- Ability to change the side of the crank rod for right hand and left hand use

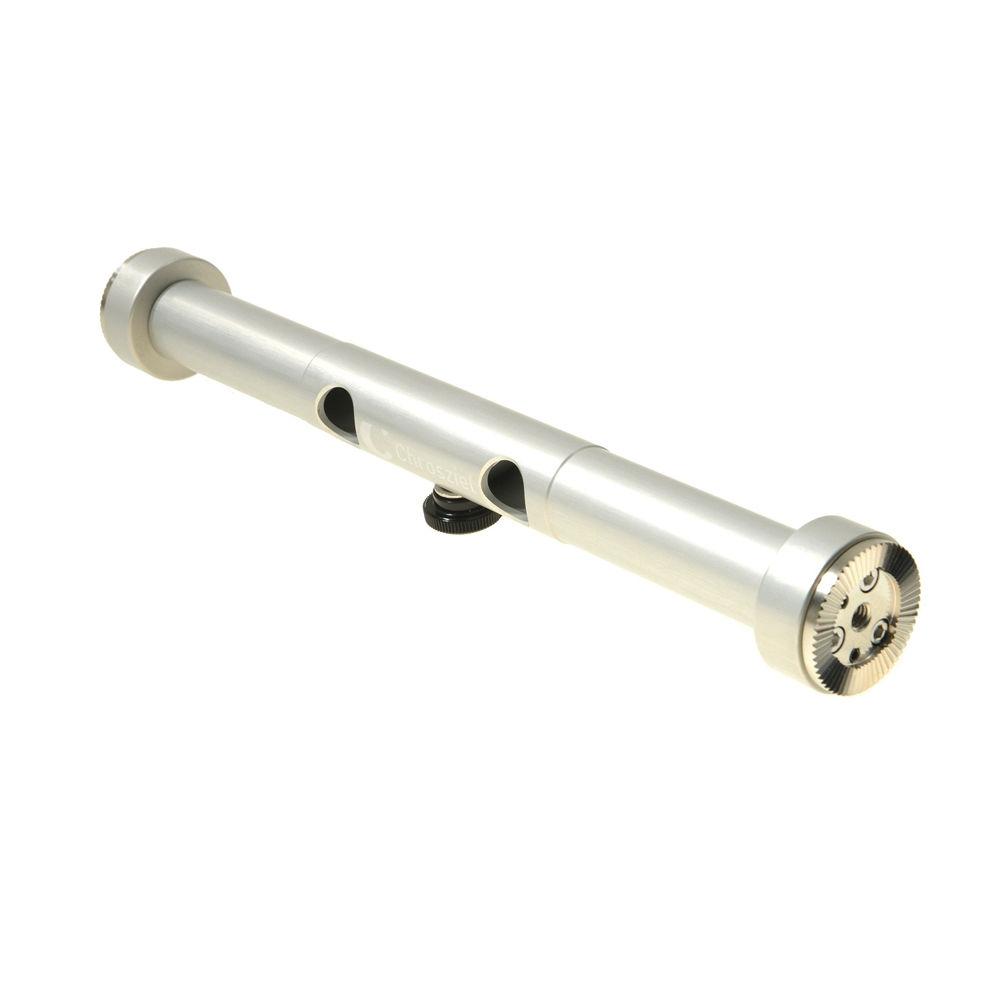

- Dual Rosette Bar for 15mm Rods The Dual Rosette Bar for 15mm Rods from Chrosziel is a bar with Hirth rosettes at both ends for the use with handles or other accessories.
- CustomCage Kit for Sony FS700 The CustomCage Kit for Sony FS700 by Chrosziel consists of a 700-401-36 15mm accessory bridge with double sided rod clamping, four 700-00-03 corners, two 700-00-07 red locking bars, two 700-00-05 blue locking bars, a 700-00-02 carrying handle with short 3/8" screw, a set M4 mounting screws, and a 700-00-12 flash shoe. The CustomeCage can be mounted on the LWS 401-457 mounting plate.
The Chrosziel CustomCage system is unique in that it can grow with you as you obtain larger or smaller cameras. This unique system features color coded locking bars that are available in three different lengths. Each color represents a specific length, so you can make the cage large or small, square or rectangular, tall or wide. With the optional 700-00-10 corner rosettes, you can add any handle or accessory with an ARRI type rosette. The 700-401-36 accessory bridge allows you to add 15mm LWS rods to the top or sides of the CustomCage. The cold shoe adapter, 700-00-12, is available to mount lights and other cold shoe mount accessories anywhere around the perimeter of the CustomCage.
The Chrosziel CustomCage system is compatible with most other brands of camera LWS bases and accepts any manufacturers 15mm rods. You can mount any camera directly to the included CustomCage base if you don't need 15mm rods to mount matte boxes and other rod-mounted accessories. In the Box Bundle Items Lightweight Support for Sony NEX-FS700 15mm Battery Mounting Plate MultiPad 15 Straight Shoulder Pad - Rod Bracket with 15mm Rods (7.5")
15mm Pair of Extension Rods (7.5") zbuqbqxvet Leather Handle Set for Camera and Support (Pair) zbuqbqxvet Dual Rosette Bar for 15mm Rods CustomCage Kit for Sony FS700 - 15mm Accessory Bridge for CustomCage
4 x - Corner for CustomCage
- 1.4" Locking Bars for CustomCage (Red, 1 Pair)
- 2.75" Locking Bars for CustomCage (Blue, 1 Pair)
- Carrying Handle for CustomCage
- Flash Shoe for CustomCage
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Cage Recorder Kit for Sony NEX-FS700 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lightweight Support for Sony NEX-FS700
| Dimensions (H x W x D) | 12 x 4 x 3" (31 x 11 x 7 cm) | | Weight | 24.8 oz (702 g) | | | | Box Dimensions (LxWxH) | 11.6 x 4.1 x 3.0" | - 15mm Battery Mounting Plate
| Dimensions (L x D) | 6 x 3" (15 x 8 cm) | | Weight | 13 oz (380 g) | - 15mm Pair of Extension Rods (7.5")
| Diameter | 15mm | | Length | 7.5" (190mm) | | | | Box Dimensions (LxWxH) | 9.5 x 1.0 x 1.0" | - Leather Handle Set for Camera and Support (Pair)
| Weight | 13.1 oz (371.4 g) per handle | - Dual Rosette Bar for 15mm Rods
| Length | 9.8" (250 mm) | | Maximum Diameter | 1.3" (34 mm) at the rosettes | | Weight | 9.2 oz / 260.9 g | - CustomCage Kit for Sony FS700
| Dimensions (H x W) | 11.9 x 6.9" (30.4 x 17.5 cm) | | Weight | 26 oz (736 g) | - MultiPad 15 Straight Shoulder Pad
