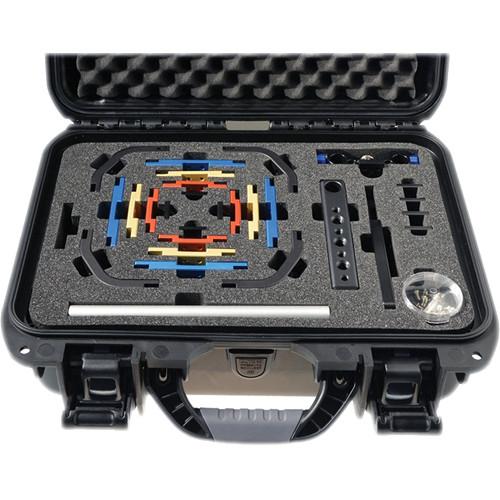

User Manual for Chrosziel CustomCage Complete Kit with Case Click to enlarge the picture
Contents of the user manual for the Chrosziel CustomCage Complete Kit with Case
- Product category: Camcorder Supports & Rigs Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Camcorder Supports & Rigs
|
User manual for the Chrosziel CustomCage Complete Kit with Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel CustomCage Complete Kit with Case includes a 700-00-01 Baseplate for LWS (Light Weight Support, 700-00-02 Carrying Handle, two 700-00-03 pairs of Corners (Black), two 700-00-05 pairs of Locking Bars (Blue), two 700-00-06 pairs of Locking Bars (Gold), two 700-00-07 pairs of Locking Bars (Red), two 700-00-08 pairs of Locking Bars (Black), two 700-00-09 pairs of Extension Plates, and Set of 20 M4 Connecting Screws, 700-00-12 Flash Shoe, 700-401-36 Accessory Bridge for 15mm rods, two 15mm rods, and a transport case.
The kit is used for assembling CustomCage camera cages, which can be mounted on the Chrosziel Light Weight Support. The kit can be customized to be used with the cameras that are 4.7" (120mm) wide and 7.5" (190mm) in height. The included baseplate comes with 1/4 and 3/8" screws for mounting on the Chrosziel LWS (Light Weight Support) and various threads for tripod plate.
The included 4 black corners with a 90° angle feature a 30° short and 60° long leg. These corners perfectly match to the various camera shapes. Each included locking bar comes with 4 connecting screws. The blue locking bar extends the cage by 2.76" (70mm), gold locking bar extends the cage by 1.97" (50mm) and the red locking bar extends the cage by 1.38" (35mm).
Each included extension plate is 0.95 x 1.18" (24 x 30mm) in size and includes screws to connect each 2 locking bars. The accessory bridge for mounting 15mm rods comes with short and long 3/8" screws, anti-twist insert, and double-sided rod clamping. The included case features an additional slot for a mounted CustomCage. In the Box Chrosziel CustomCage Complete Kit with Case Base Plate (Spare) for CustomCage faewafxdecfu Carrying Handle for CustomCage 2 x 700-00-03 Pair of Corners (Black) 2 x 2.75" Locking Bars for CustomCage (Blue, 1 Pair) 2 x 2" Locking Bars for CustomCage (Gold, 1 Pair) 2 x 1.4" Locking Bars for CustomCage (Red, 1 Pair) 2 x Locking Bars for CustomCage (Black, 1 Pair) 2 x Extension Plate for CustomCage (1 Pair) Flash Shoe for CustomCage 15mm Accessory Bridge for CustomCage 2 x 15mm Rod Set of 20 M4 Connecting Screw Transport Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel CustomCage Complete Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 700-00 Specs | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 16.7 x 12.8 x 7.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
