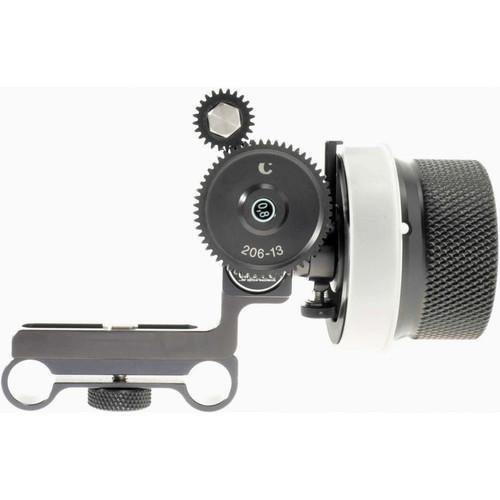

User Manual for Chrosziel DV StudioRig Follow Focus with Reverse Gear Drive Click to enlarge the picture
Contents of the user manual for the Chrosziel DV StudioRig Follow Focus with
- Product category: Follow Focus Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Follow Focus Systems
|
User manual for the Chrosziel DV StudioRig Follow Focus with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description Constructed from high-quality materials, Chrosziel's DV StudioRig Follow Focus is built for the professional filmmaker working with DSLR, mirrorless, or cinema cameras. The main body of the DV StudioRig is machined from aluminum and the oversized handwheel rotates smoothly with minimal play in the gearbox. Use the knurled thumbscrew on the sliding rod clamp to secure the DV StudioRig to 15mm LWS rods. Since the rod clamp slides, the DV StudioRig is compatible with many lens diameters, from small DSLR lenses to larger cinema lenses. This version of the DV StudioRig comes with a reverse gear drive for pulling focus correctly with lenses whose focus rotation is opposite that of traditional cinema lenses. As this reverse gear has a module of 0.8, it is only compatible with 0.8 MOD drive gears. A white marking disk is included for outlining focus pulls with a dry-erase marker or grease pencil. In order to be used with a lens, a drive gear must be purchased separately. Drive gears are available in various sizes and tooth spacings to fit ENG and cinema lenses as well as a friction gear for DSLR lenses without teeth. Once you have a gear, it simply snaps into the gearbox and can be easily exchanged. Settable hard stops can be added with the separately available C-206-60 VariLock upgrade kit. In the Box Chrosziel DV StudioRig Follow Focus with Reverse Gear Drive 205-02 Handwheel Marking Scale - For DV Follow Focus System 206-40 Reverse Gear for DV Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel DV StudioRig Follow Focus with Reverse Gear Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 206-05SP Specs | Rod Standard | 15mm LWS | | Lens Compatibility | Maximum Diameter: 97 mm
Gearing: MOD 0.8 | | Weight | 11 oz / 310 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.8 x 5.4 x 5.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
