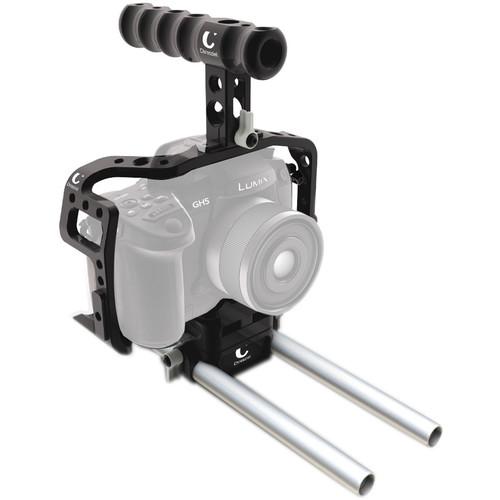

User Manual for Chrosziel GH5 Cage System Click to enlarge the picture
Contents of the user manual for the Chrosziel GH5 Cage System
- Product category: DSLR Video Supports & Rigs Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel DSLR Video Supports & Rigs
|
User manual for the Chrosziel GH5 Cage System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel GH5 Cage System includes the GH5/GH5s cage, a versatile, ergonomic top handle, and a 15mm LWS baseplate with a pair of 8" rods. The cage has a lightweight yet robust design and features a quick release base that's directly compatible with Manfrotto 501/701 and Sachtler Ace tripod heads. The cage provides access to all the camera ports, controls, and slots, allows the monitor to be articulated unhindered, and offers 1/4"-20 and 3/8"-16 accessory-mount threads. It attaches to the LWS baseplate via its quick release base, and the cage and baseplate each offer multiple 1/4"-20 and 3/8"-16 tripod-mount threads on the bottom.
The top handle features a mounting block with a rail slot and rods slots. Using this mounting block, the top handle can be attached to a rail on top or on either side of the cage, or mounted on a 15mm rod and used as a handgrip. If you get a second top handle, sold separately, you can attach one on each side of the cage or mount two on the included 15mm rods as dual handgrips. The mounting block is rotatable to accommodate different mounting methods. You can attach the handle on top the standard way or rotate the mounting block and attach it sideways. The top handle also provides 1/4"-20 and 3/8"-16 accessory-mount threads and a 15mm rod port along its length. - Key Features
-
- Panasonic GH5/GH5s cage, ergonomic top handle, and quick release 15mm LWS baseplate with 8" rods
- Top, side, and rod-mountable top handle
- Rod-mount two top handles (one sold separately) as dual handgrips
- Cage can be attached directly to Manfrotto 501/701 and Sachtler Ace tripod heads
- Access to all the camera ports, controls, and slots
- Allows the monitor to be opened/articulated unhindered
- 1/4"-20 and 3/8"-16 accessory-mount threads
- 1/4"-20 and 3/8"-16 tripod-mount threads
In the Box Chrosziel GH5 Cage System GH5 Cage Handle for GH5 Cage 15mm LWS Baseplate with 8" Rods Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel GH5 Cage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 700-GH5 Specs | Rods | 2 x 8" / 20.5 cm 15 mm rods included | | Weight | Entire System: 1.5 lb / 0.7 kg
Cage: 0.48 lb / 218 g
Top Handle: 0.36 lb / 164 g
LWS Support: 0.68 lb / 310 g | | | | Package Weight | 1.855 lb | | Box Dimensions (LxWxH) | 12.1 x 7.4 x 3.0" |
