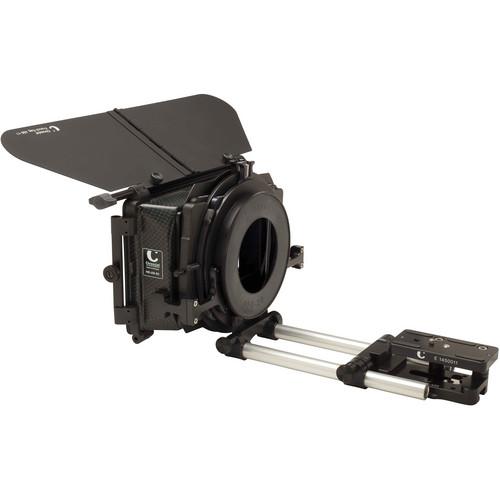

User Manual for Chrosziel Kit R2 for Panasonic AG-AF100 75-98mm Click to enlarge the picture
Contents of the user manual for the Chrosziel Kit R2 for Panasonic AG-AF100
- Product category: Camcorder Supports & Rigs Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Camcorder Supports & Rigs
|
User manual for the Chrosziel Kit R2 for Panasonic AG-AF100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description Chrosziel's Kit R2 for Panasonic AG-AF100 75-98mm is a perfect choice for setting up a compact rig with the Panasonic AG-AF100 75-98mm. It fits onto 15mm rods. Filters get inserted into it from above, and can then be rotated sideways according to the rotating mechanism that is built. The R20 comes ready with included Chrosziel (410-04) 4 x 4" and 4 x 5.65" multi-format filter holders and (402-12) 4x4" for the rear stage, including a French flag and front mask. (Please always use the front mask for a focal length of 4.5mm or more. It effectively increases the image quality as opposed to flaps mounted in front of the lens.)
This kit has the 450-R2 mattebox with Carbon-Design, which is lightweight and robust and comes with a double filter-stage, a 16:9 aspect ratio mask (mask insert that fits into the mattebox and shields from stray light, etc.), a (450-11) French flag, and a pivot mechanism set for the use of side wings (side wings not included). It also has two rotatable filter holders (4 x 4" (402-12) and multi-format 4 x 4"/4 x 5.65" (410-04)), a bracket for 15mm rods, a cover end plate with thread 110mm (401-63), lightweight support for Panasonic (for tripod plate), and an (450-20) adapter ring 110:75-98mm.
(The Chrosziel C-401-427 Lightweight Support System is designed specifically to accommodate Chrosziel's mattebox when using the Panasonic AG-AF100 camcorder. To add the support, simply install the center bracket to the mattebox, install the lightweight support base to the camera, and insert the industry standard 15mm rods directly between the center bracket and the lightweight support base. In the Box Chrosziel Kit R2 for Panasonic AG-AF100 75-98mm 450-R2 MatteBox with Mask 16:9 (for built in lenses) 450-11 Top French Flag for MB-450 Matte Box Pivot Mechanism 410-04 4x5.65 Filter Holder 410-04 4x5.65 Filter Holder - Horizontal Bracket for 15mm Diameter Rods Lightweight Support for Panasonic AG-AF100/HDC-Z10000EZ Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Kit R2 for Panasonic AG-AF100 75-98mm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 450R2-AF2KIT Specs | Compatibility | Compatible with Panasonic AG-AF100 with Outer Diameter of 75-98 mm |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
